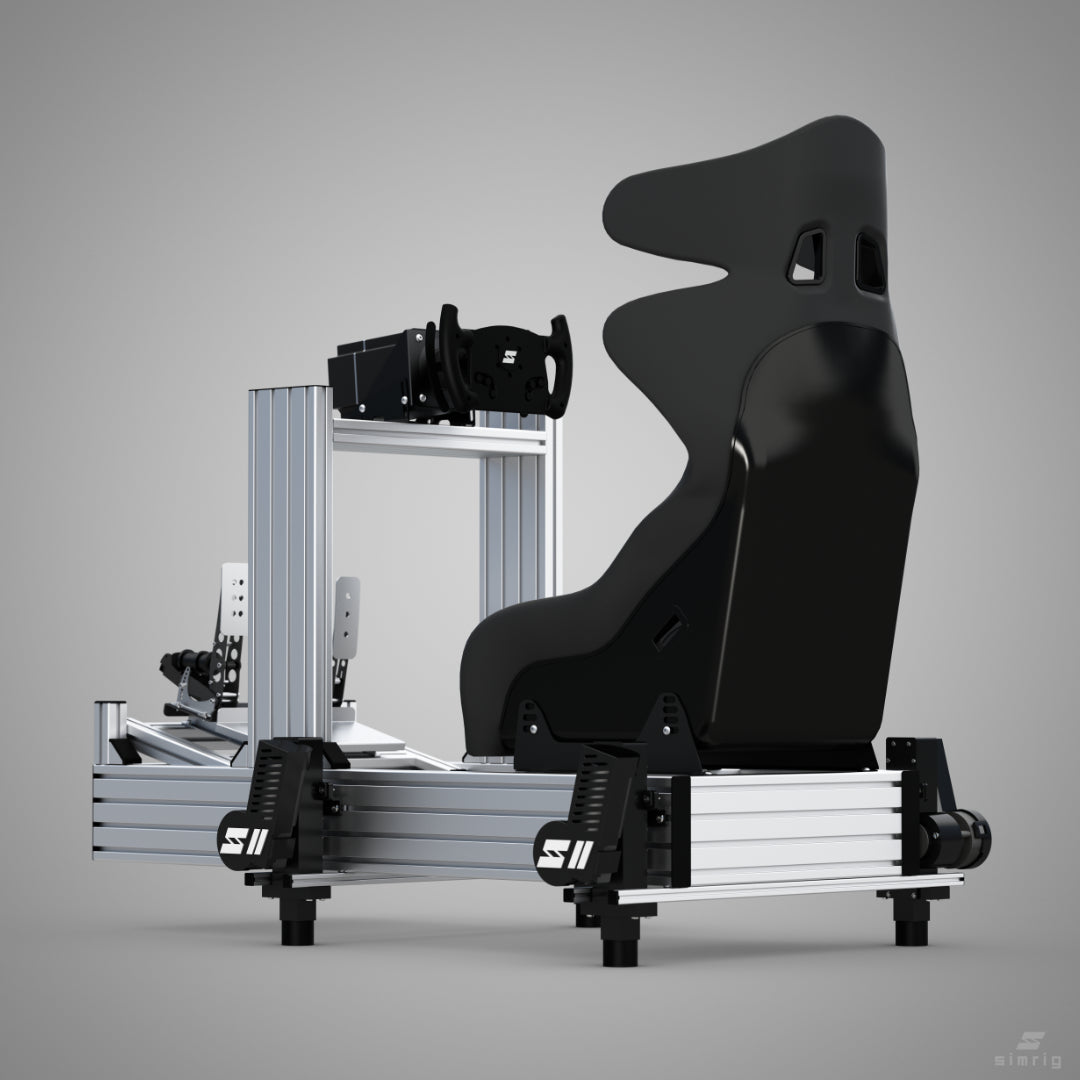

SimRig SR2 3DOF Motion System
The SimRig SR2 3DOF motion system is a mid to high-tier motion platform designed for sim racers who want accurate feedback, strong load capacity, and a clean, compact installation.
KEY BENEFITS
- Experience precise motion feedback that improves car control and consistency
- Support heavier rigs with stable performance up to 225 kg total load
- Keep your setup clean and compact with low footprint components
- Get racing quickly with a straightforward plug and play installation
- Fine tune motion profiles across major sim titles with included software
WHO IT’S FOR
This system is ideal for sim racers who are upgrading from a static rig or entry-level motion and want a more capable, professional-grade experience. It is well suited for aluminum extrusion rigs with direct drive wheels and load cell pedals. The SimRig SR2 3DOF motion system fits drivers who value realism, reliability, and a clean setup without moving into the highest load tier systems.
KEY FEATURES
The system is built with industrial-grade motors and a dedicated ECU to deliver consistent motion performance. It supports a total load of 225 kg, allowing for fully built rigs with driver and peripherals. The included fanless 750 W power supply runs on standard household power and keeps noise and heat minimal. Installation is designed to be simple, with all required components included. The SimRig Control Center software enables detailed tuning of motion feedback across supported simulation titles while maintaining low system latency.
TECHNICAL SPECIFICATIONS
- Motion system type: 3DOF actuator-based system
- Max load: 225 kg including rig, driver, and peripherals
- Power: 750 W fanless power supply
- Travel: 70 mm
- Speed: 100 mm/s at max load
- Accuracy: 0.1 mm
- Latency: 7 ms
- Interface: USB 2.0 Mini-B
- Operating system: Windows 10 and 11 64-bit
- Mounting compatibility: Aluminum extrusion rigs 80x40, 100x40, 120x40, 160x40 mm and others
- Power input: 100 to 240 V, 50 to 60 Hz
REAL-WORLD USE / EXPERIENCE
In real use, the system delivers controlled, responsive motion that helps you feel braking, weight transfer, and surface detail more clearly. The low latency keeps motion synchronized with on-screen action, which improves confidence during cornering and braking zones. The load capacity gives enough headroom for most serious sim racing setups without requiring compromises in hardware. The result is a balanced motion experience that feels natural, predictable, and immersive.
KIT INCLUDES:

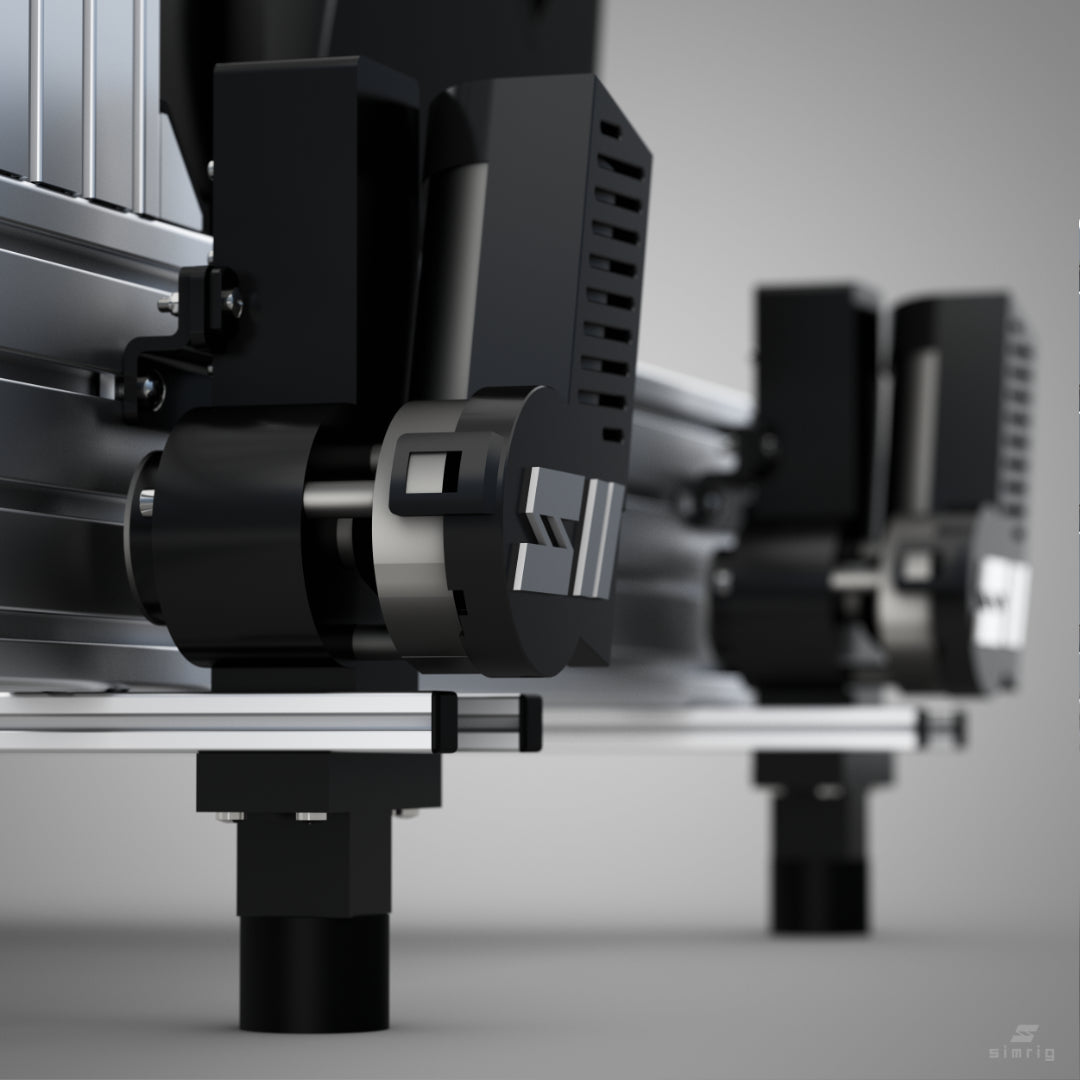

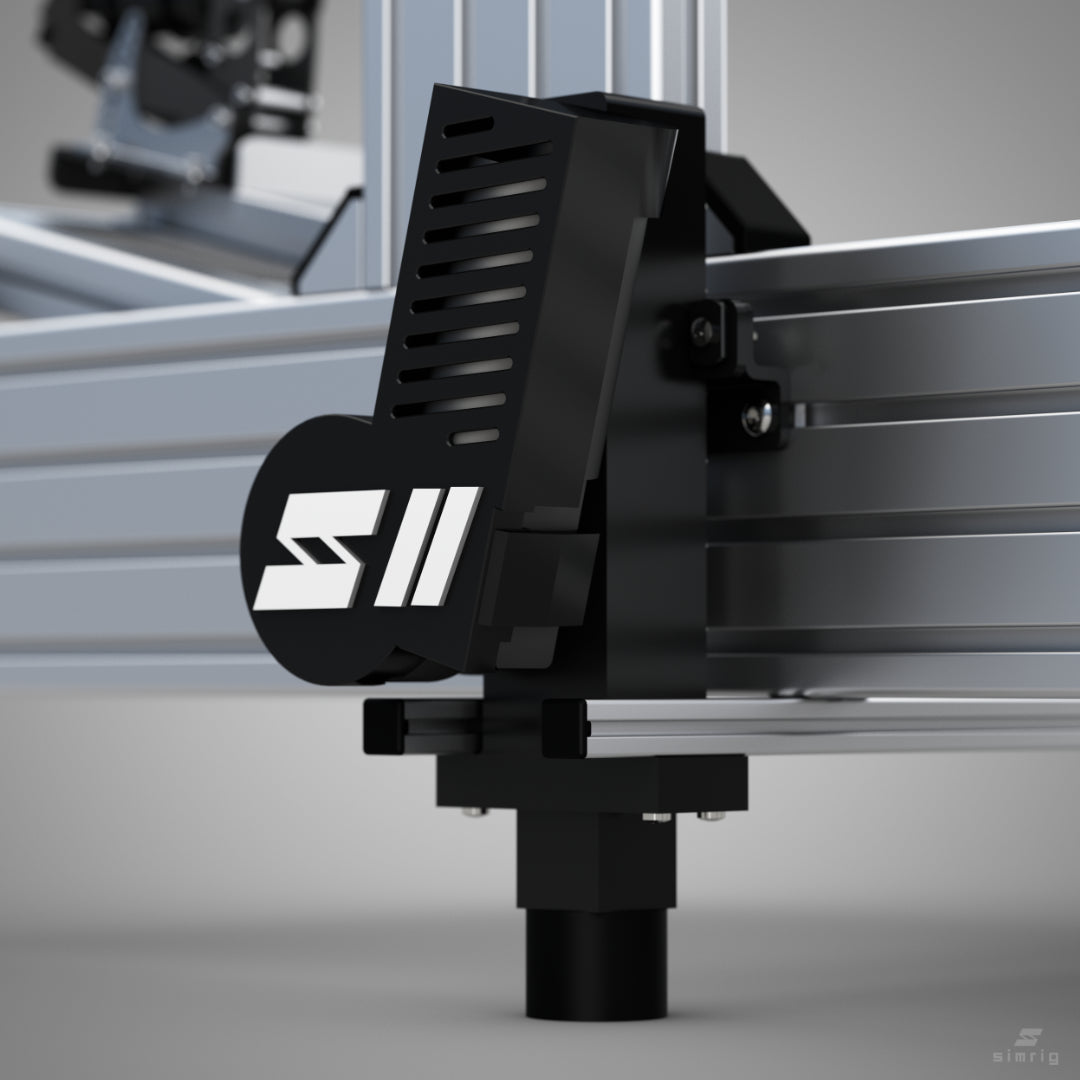

• 4x SIMRIG actuators
• 1x Electronic Control Unit (ECU)
• 1x Power Supply Unit (PSU)
• 1x Emergency stop
• 4x Support brackets
• 4x Vibration dampers
• 1x 100-220V power cable (C13)
• 1x Low voltage power cable (2 m)
• 4x Linear actuator cable (1 m)
• 1x USB cable (3 m)
• 8x M5x25 mm screw
• 4x M5x10 mm screw
• 4x M5I8 T-nut
• 8x Plastic spacer
• 8x M5 locknut
• 8x M5 washer
• 10x Cable ties
• 6x Cable clips
• 4x 780x20x20 profiles
• 8x Plastic end-cap
• 8x 90 degree angle bracket
• 8x M8x16 mm screw
• 8x M8I8 T-nut
• 16x M5x25 mm screw
• 24x M5I5 T-nut
• 8x M5I8 T-nut
• 8x M5x14 mm screw
• 8x M5x10 screw
Mouting with EasyBracket (Optional)
• 8x M8x80 mm screw
• 8x Nordlock washer
• 8x M8x16 mm screw
• 8x M8I8 T-nut
