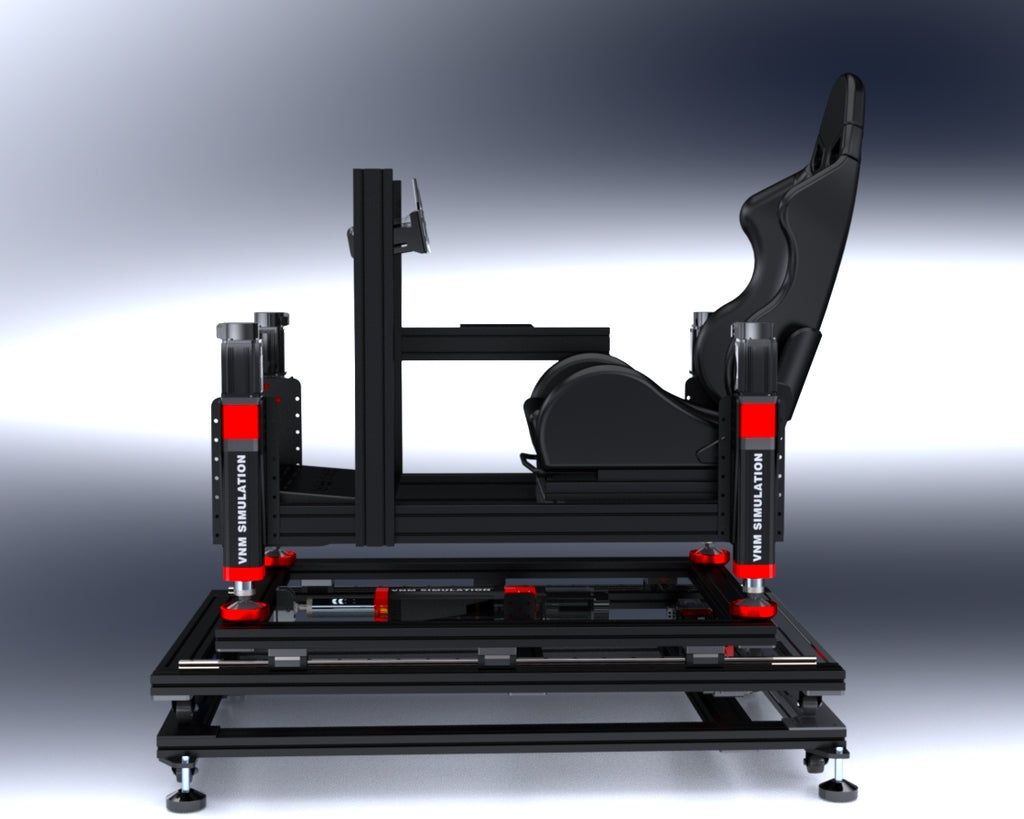

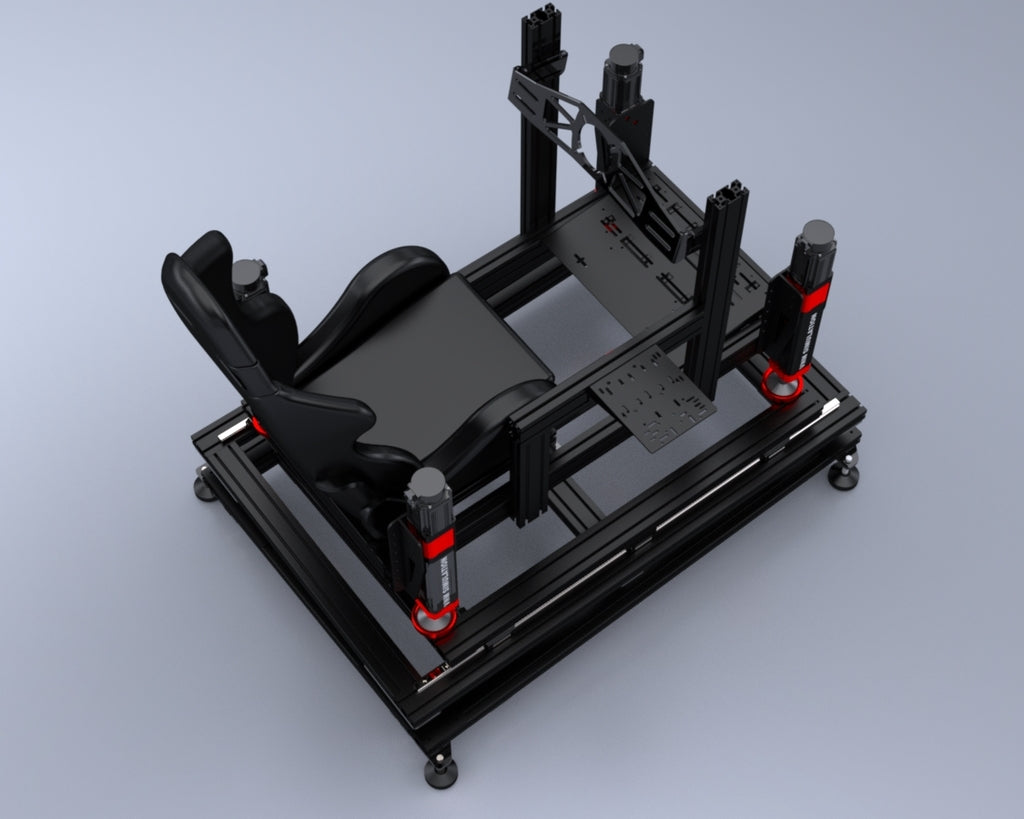

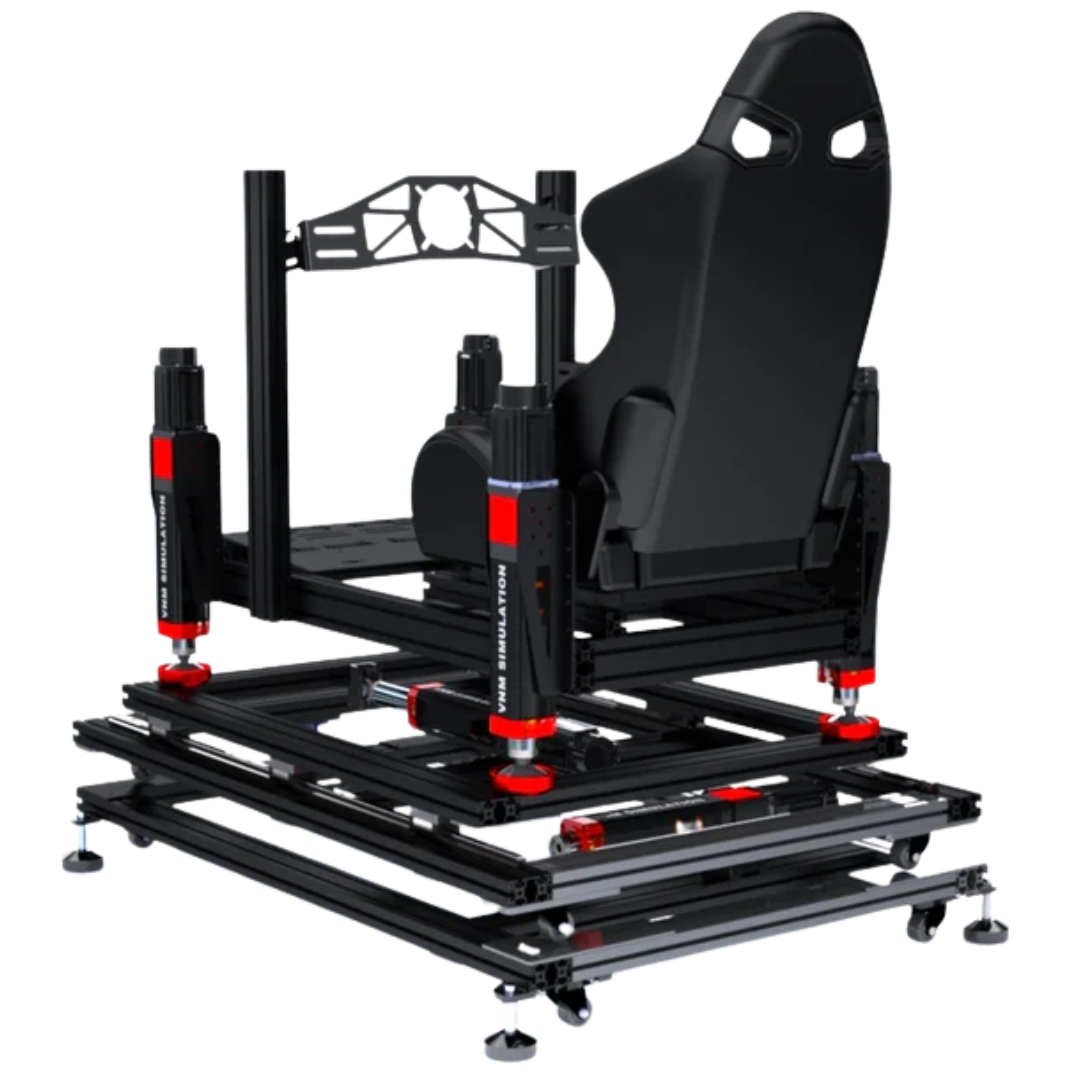

VNM Simulation 5DOF Motion Platform
- ✓Ships from Spokane Valley, WA — dispatched within 2 business days when in stock, exact rate at checkout
- ✓Free US shipping over $250 — domestic shipping, no import duties or fees
- ✓Manufacturer warranty — up to 2 years on SIMAGIC wheelbases, about 1 year on most items; we coordinate every claim
A full 5DOF motion platform designed to deliver advanced movement and real-world feedback for sim racing and flight simulation. Built for users who want maximum immersion and precise motion replication on a professional-level setup.
KEY BENEFITS
- Delivers full-body motion with pitch, roll, heave, surge, and sway feedback
- Enhances car control and situational awareness through physical movement cues
- Creates a highly immersive experience for racing and flight simulation
- Maintains smooth and controlled motion without excessive noise
- Supports high load capacity for stable performance under demanding use
WHO IT’S FOR
This system is built for advanced sim racers, flight sim users, and professional environments looking to achieve a true motion simulation experience. Ideal for aluminum extrusion rigs where users want to add full motion capability. Best suited for experienced users who want deeper immersion and more realistic feedback than traditional setups.
KEY FEATURES
The VNM Simulation 5DOF motion platform is a complete kit designed to convert an aluminum profile chassis into a full motion simulator. It uses six 150mm stroke actuators to deliver five degrees of freedom, enabling a wider range of motion including forward and lateral forces. The system includes a motion controller, a cabinet with six integrated drivers, and safety components for reliable operation. Built with anodized aluminum and industrial-grade components, it delivers durability and consistent performance. The platform integrates with Sim Racing Studios software, allowing tuning across racing, flight, and simulation titles. The VNM Simulation 5DOF motion platform provides a significant step up in motion realism compared to lower degree systems.
TECHNICAL SPECIFICATIONS
- Motion type: 5DOF motion platform
- Actuator stroke: 150mm
- Maximum speed: 250mm per second
- Load capacity: 200kg
- Motor type: ASSD 80ST-M02430 motor and driver assembly
- Actuator construction: Aluminum extrusion with anodized coating
- Drive system: TBI ball screw
- Actuator dimensions: 90 x 80 x 560mm, 710mm at maximum travel
- Actuator weight: 12kg each
- Total system weight: 85kg
- Included actuators: 6
- Included mounting brackets: 4 U-mount brackets
- Control system: Motion cabinet with 6 drivers and controller
- Safety: EMC stop button included
- Software compatibility: Sim Racing Studios
- Compatibility: Aluminum extrusion T-slot chassis required
- Shipping: UPS Ground included for continental US
REAL-WORLD USE / EXPERIENCE
In use, the VNM Simulation 5DOF motion platform delivers a level of immersion that closely mirrors real driving and flight conditions. You feel forward acceleration, braking forces, lateral movement, and elevation changes all working together in a coordinated way. This allows you to read vehicle behavior more naturally and react faster to grip loss or track changes. The motion is precise and controlled, helping improve consistency while making every session more engaging and realistic.
Complete Your Rig
Swipe or scroll sideways to browse every add-on →
A full 5DOF motion platform designed to deliver advanced movement and real-world feedback for sim racing and flight simulation. Built for users who want maximum immersion and precise motion replication on a professional-level setup.
KEY BENEFITS
- Delivers full-body motion with pitch, roll, heave, surge, and sway feedback
- Enhances car control and situational awareness through physical movement cues
- Creates a highly immersive experience for racing and flight simulation
- Maintains smooth and controlled motion without excessive noise
- Supports high load capacity for stable performance under demanding use
WHO IT’S FOR
This system is built for advanced sim racers, flight sim users, and professional environments looking to achieve a true motion simulation experience. Ideal for aluminum extrusion rigs where users want to add full motion capability. Best suited for experienced users who want deeper immersion and more realistic feedback than traditional setups.
KEY FEATURES
The VNM Simulation 5DOF motion platform is a complete kit designed to convert an aluminum profile chassis into a full motion simulator. It uses six 150mm stroke actuators to deliver five degrees of freedom, enabling a wider range of motion including forward and lateral forces. The system includes a motion controller, a cabinet with six integrated drivers, and safety components for reliable operation. Built with anodized aluminum and industrial-grade components, it delivers durability and consistent performance. The platform integrates with Sim Racing Studios software, allowing tuning across racing, flight, and simulation titles. The VNM Simulation 5DOF motion platform provides a significant step up in motion realism compared to lower degree systems.
TECHNICAL SPECIFICATIONS
- Motion type: 5DOF motion platform
- Actuator stroke: 150mm
- Maximum speed: 250mm per second
- Load capacity: 200kg
- Motor type: ASSD 80ST-M02430 motor and driver assembly
- Actuator construction: Aluminum extrusion with anodized coating
- Drive system: TBI ball screw
- Actuator dimensions: 90 x 80 x 560mm, 710mm at maximum travel
- Actuator weight: 12kg each
- Total system weight: 85kg
- Included actuators: 6
- Included mounting brackets: 4 U-mount brackets
- Control system: Motion cabinet with 6 drivers and controller
- Safety: EMC stop button included
- Software compatibility: Sim Racing Studios
- Compatibility: Aluminum extrusion T-slot chassis required
- Shipping: UPS Ground included for continental US
REAL-WORLD USE / EXPERIENCE
In use, the VNM Simulation 5DOF motion platform delivers a level of immersion that closely mirrors real driving and flight conditions. You feel forward acceleration, braking forces, lateral movement, and elevation changes all working together in a coordinated way. This allows you to read vehicle behavior more naturally and react faster to grip loss or track changes. The motion is precise and controlled, helping improve consistency while making every session more engaging and realistic.
