ELITE FREE STANDING TRIPLE MONITOR STAND- BLACK EDITION

Overview

The Next Level Racing® Elite Freestanding Triple Monitor Stand Black Edition offers sim racers the complete triple monitor mounting solution. Constructed from high-grade 6063 aluminium extrusion, the Elite Freestanding Triple Monitor Stand Black Edition supports three 21” – 43” monitors for the most immersive sim racing experience.





Highlights

MAXIMUM IMMERSION

A product from years of extensive research and development, the Next Level Racing® Elite Freestanding Triple Monitor Stand Black Edition offers an unparalleled immersive experience to sim racers, surrounding drivers with three surround monitors whilst offering a high degree of adjustability. The vertical uprights are also width adjustable, allowing users with the Next Level Racing Traction Plus platforms or wider cockpits to bring the screens closer to their seated position to find the desired field of view.





INCREDIBLE VERSATILITY AND QUALITY

From the anodized black finish to the custom black electroplated hardware and cable management clips, the Elite Freestanding Triple Monitor Stand Black Edition offers industry-leading versatility and quality standards for the perfectionist sim racer.





Features

• All-In-One Monitor Mount - The complete, no compromise, all-in-one racing cockpit monitor mount solution for the elite sim racer
• Premium Quality Materials - Premium black anodized aluminum profile with high quality powder-coated carbon steel components offers strength for up to three 21” – 43” screens

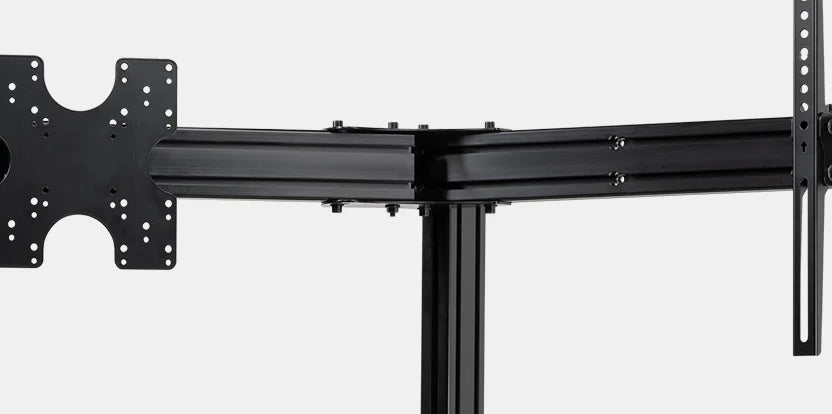

• Universal Mounting Solution - Universal 3mm thick VESA mounting solutions included for maximum compatibility and flexibility (• 200x200mm • 100x200mm • 200x100mm • 150x150mm • 100x100mm • 75x75mm)
• Compatibility - Freestanding design allows preferred screen distance and vertical post mount points (from 720 – 1240mm wide) allows width required for universal compatibility for racing/flight cockpits and commercial applications
• Adjustability - Fully adjustable and customizable, offering the most immersive monitor placement setup

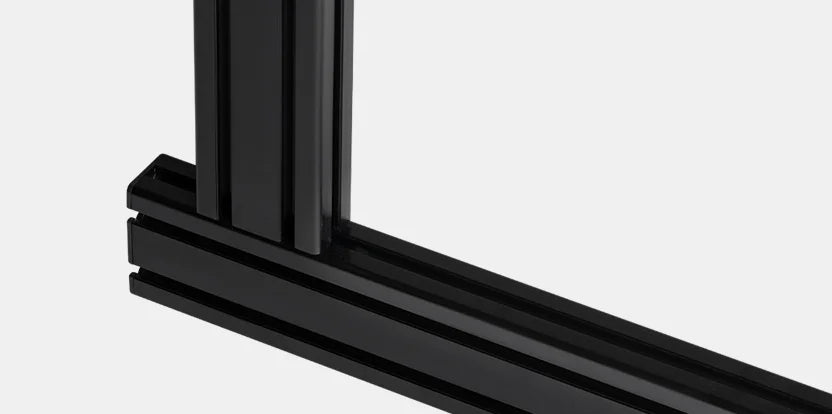

• Built For Strength - Custom Next Level Racing 80x40mm aluminum profile base for strength and rigidity

What's in the Box

• Aluminum extrusions
• Screen mounting hardware
• Next Level Racing® Cable Management Clips
• Next Level Racing® Mounting Arms and Brackets
• Next Level Racing® Custom End Caps
• Spirit Level
• 3X VESA plates (• 200x200mm • 100x200mm • 200x100mm • 150x150mm • 100x100mm • 75x75mm)
• Assembly hardware
• Digital assembly instructions and assembly videos available here: http://bit.ly/nlr-instructions





Specifications

• Supported Screens: 3x 21” to 43” or 1x 65”
• Boxed Dimensions: 135 cm (L) X 28cm (W) X 23.5cm
• Product Dimensions: 71cm (L) x 242.5 cm (W) x 140cm (H )
• Boxed Weight: GW: 25.5kg / NW: 21.3 kg
• Part Number: NLR-E036





Assembly





Frequently Asked Questions

1. What monitor configuration does this stand support?
   This setup is ideal for high-end triple screen configurations, supporting three monitors ranging from 27 to 43 inches. The centre VESA uprights accommodate mounting patterns from 75mm (H) x 75mm (W) up to 800mm (H) x 400mm (W), while the two outer star-pattern VESA plates support patterns from 75mm x 75mm to 200mm x 200mm. The mount allows for fine adjustment with a central tilt angle of 16 degrees, outer monitor tilt angle of 18 degrees, and a horizontal adjustment range of 475mm.
2. Is it compatible with curved monitor setups?
   Yes, the arms are angle-adjustable to support curved monitor layouts with precise and seamless alignment. For optimal compatibility, curved monitors should have a curvature no greater than 1500R.
3. Does it require an Elite cockpit to work?
   No, it’s completely free-standing and can be used with any cockpit or desk setup.
4. Is there a central alignment feature?
   Yes, it includes precise adjustment rails for center alignment across all three screens.

Compatible Next Level Racing Products

• Suitable for all Next Level Racing® Cockpits and Wheel stands
• Wider base adjustability allows compatibility with all brands of cockpits





Please Note

*electronics not included
