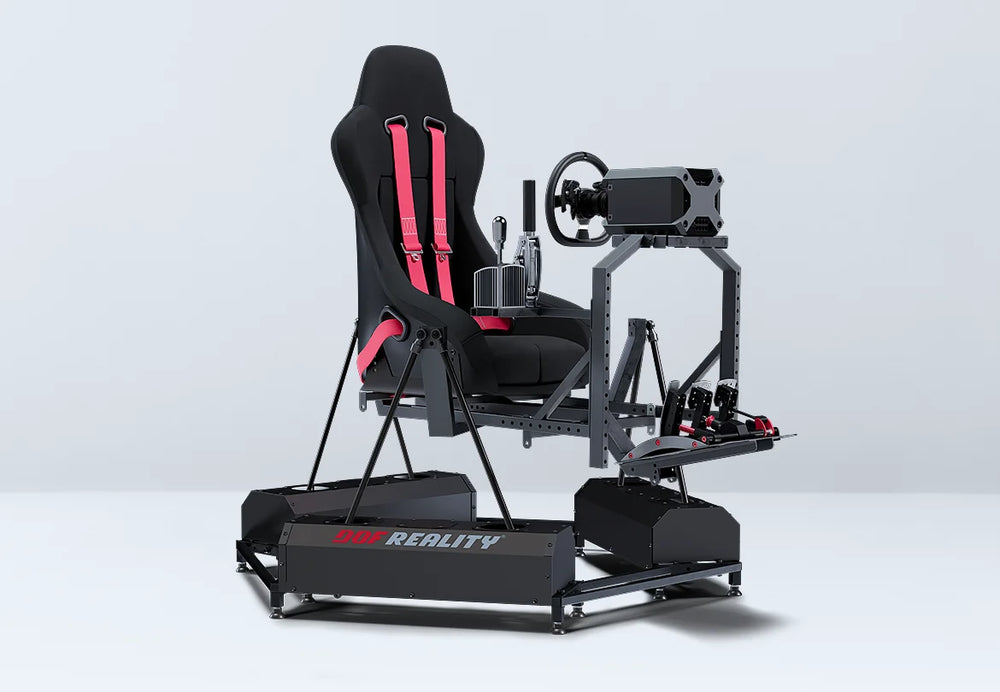

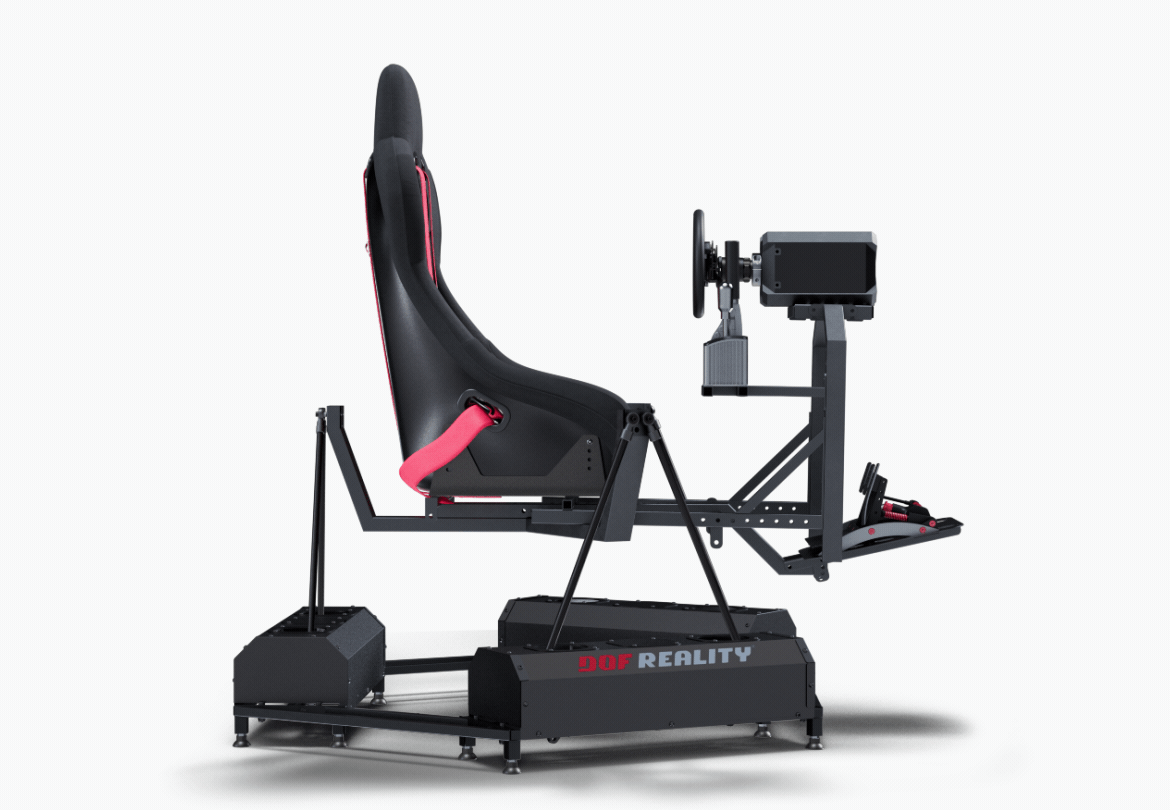

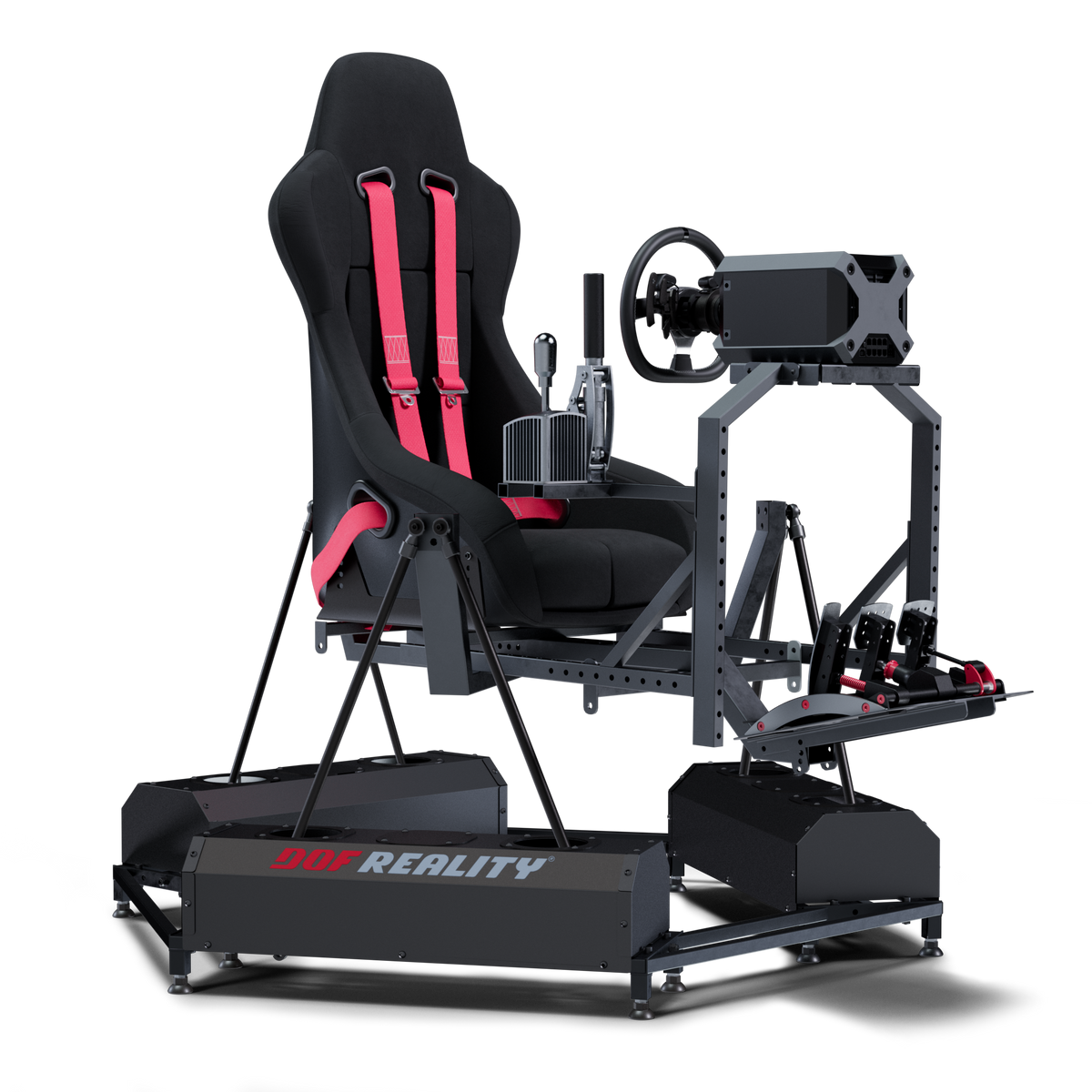

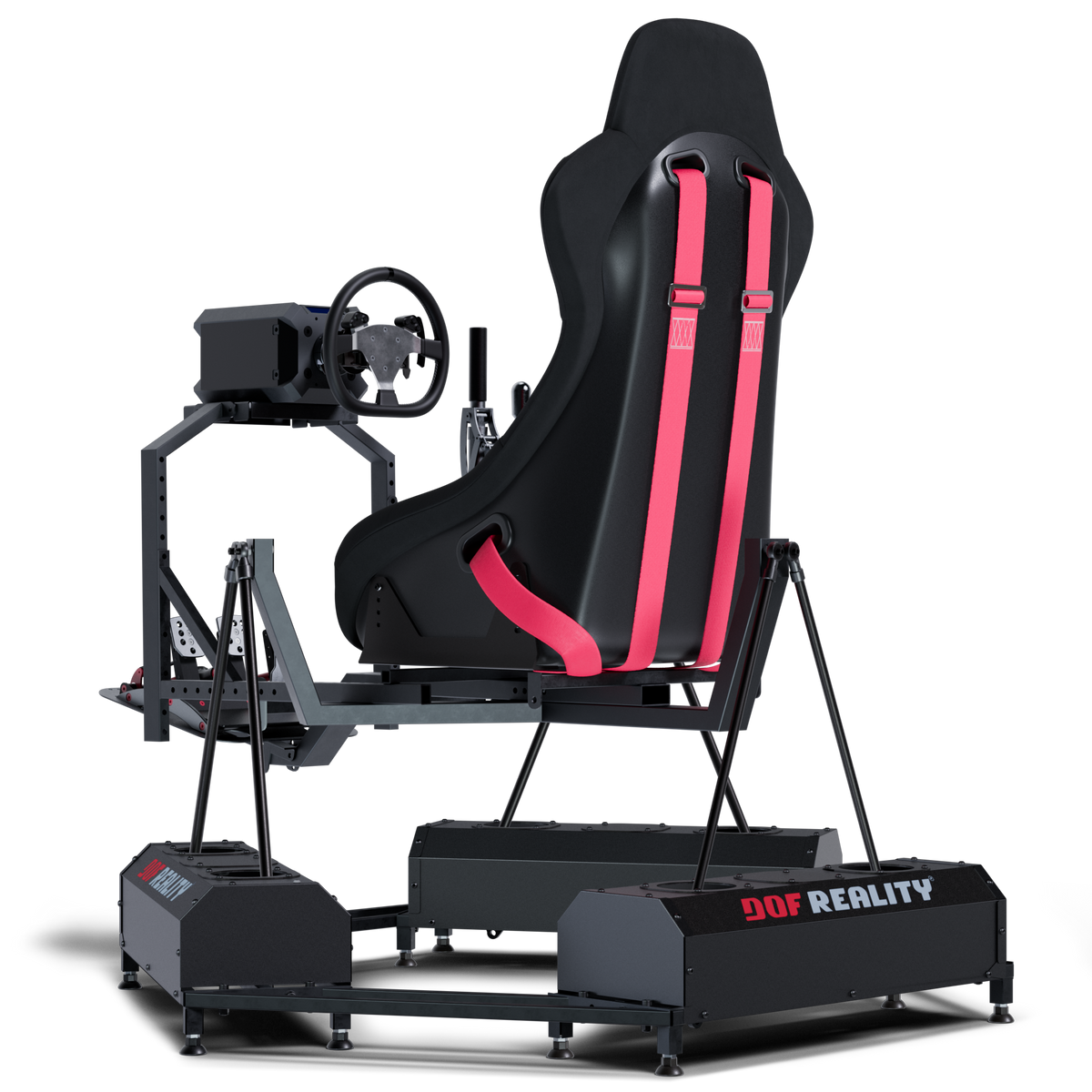

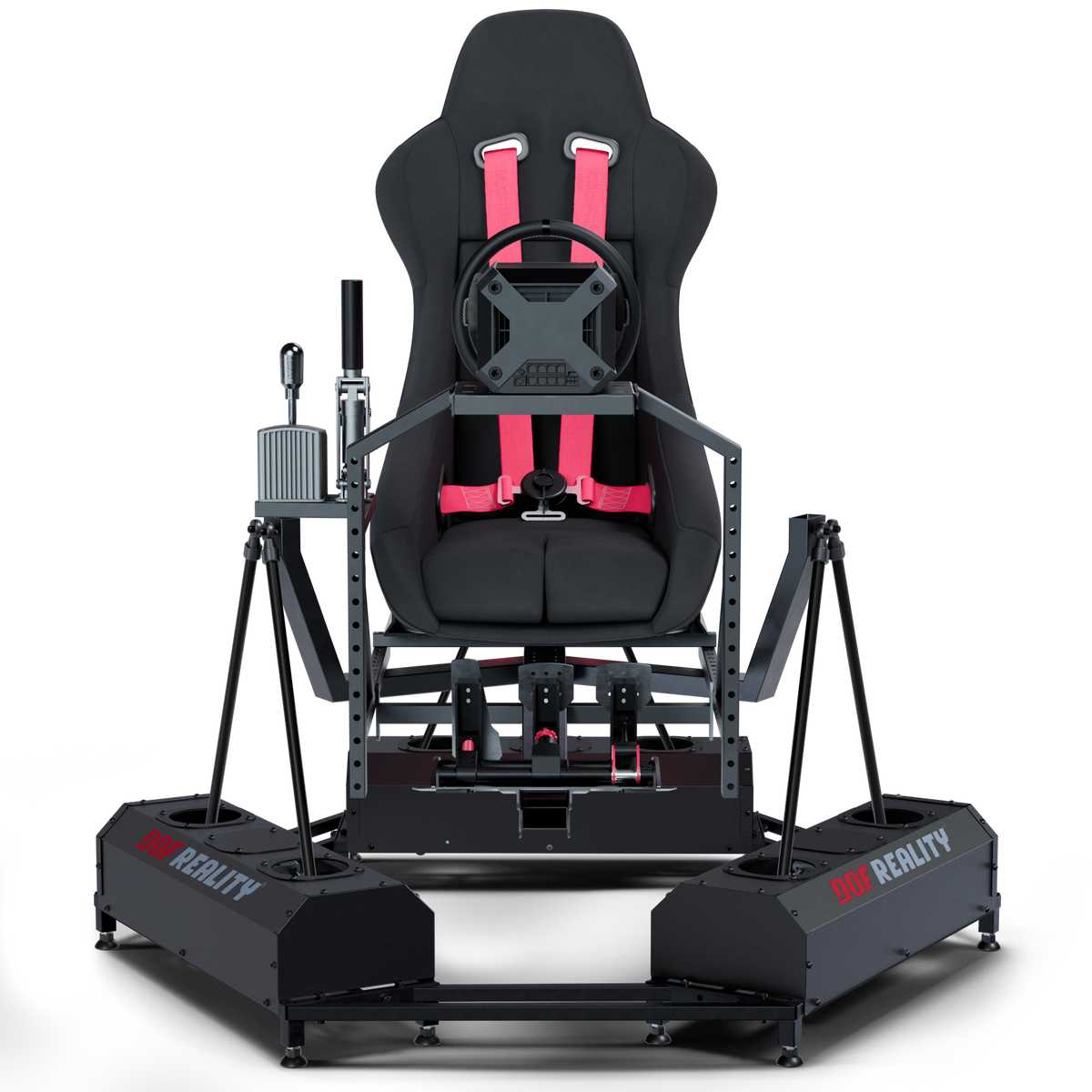

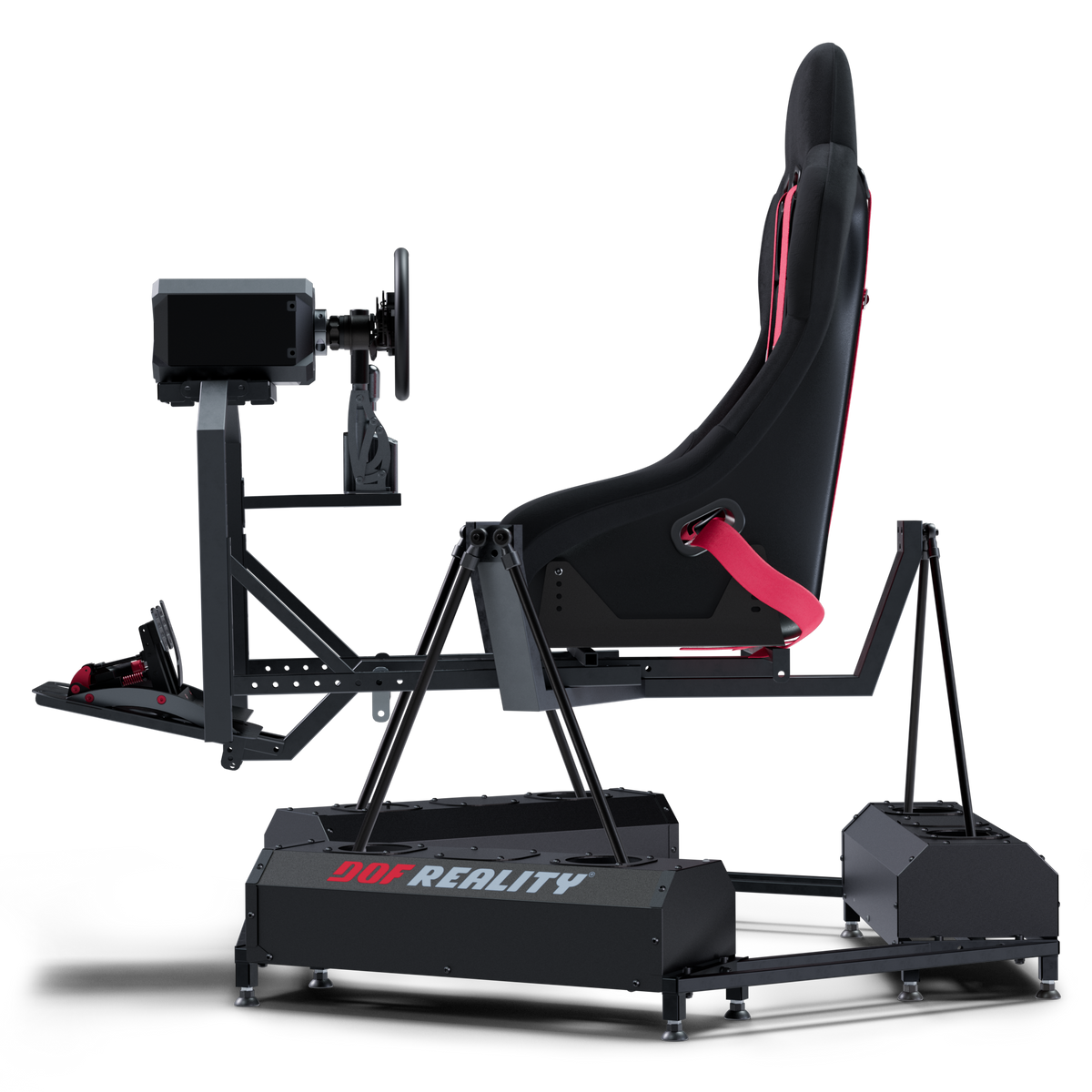

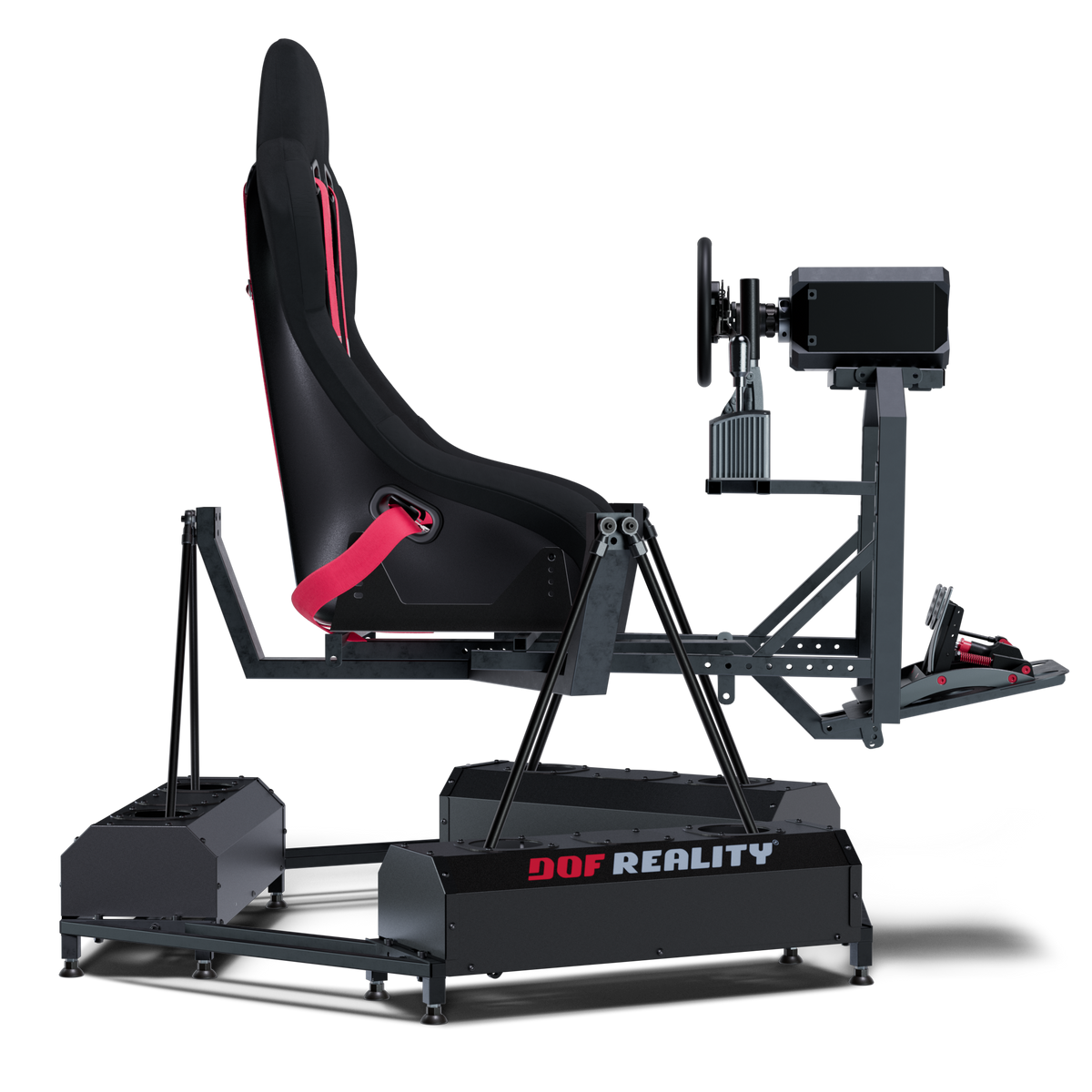

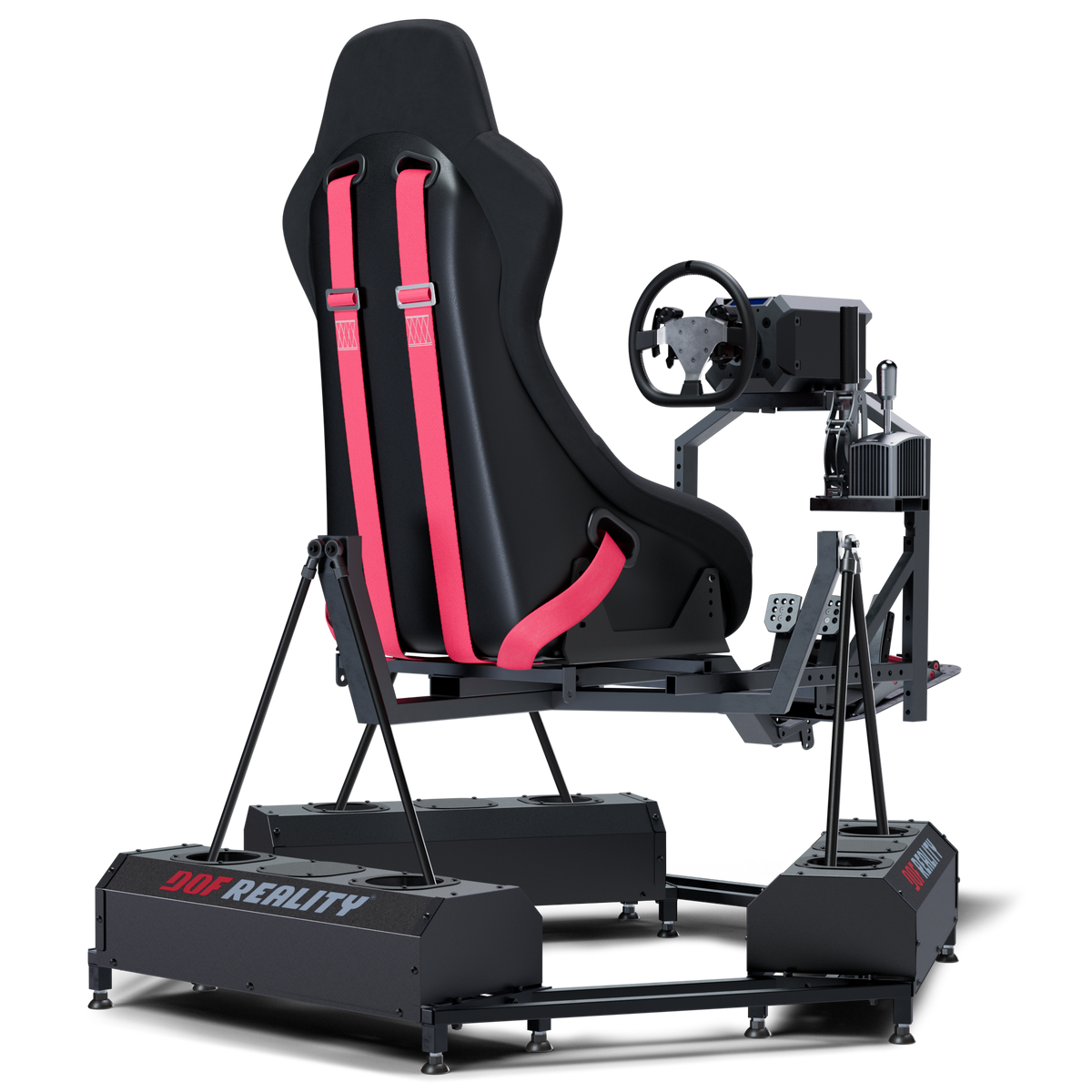

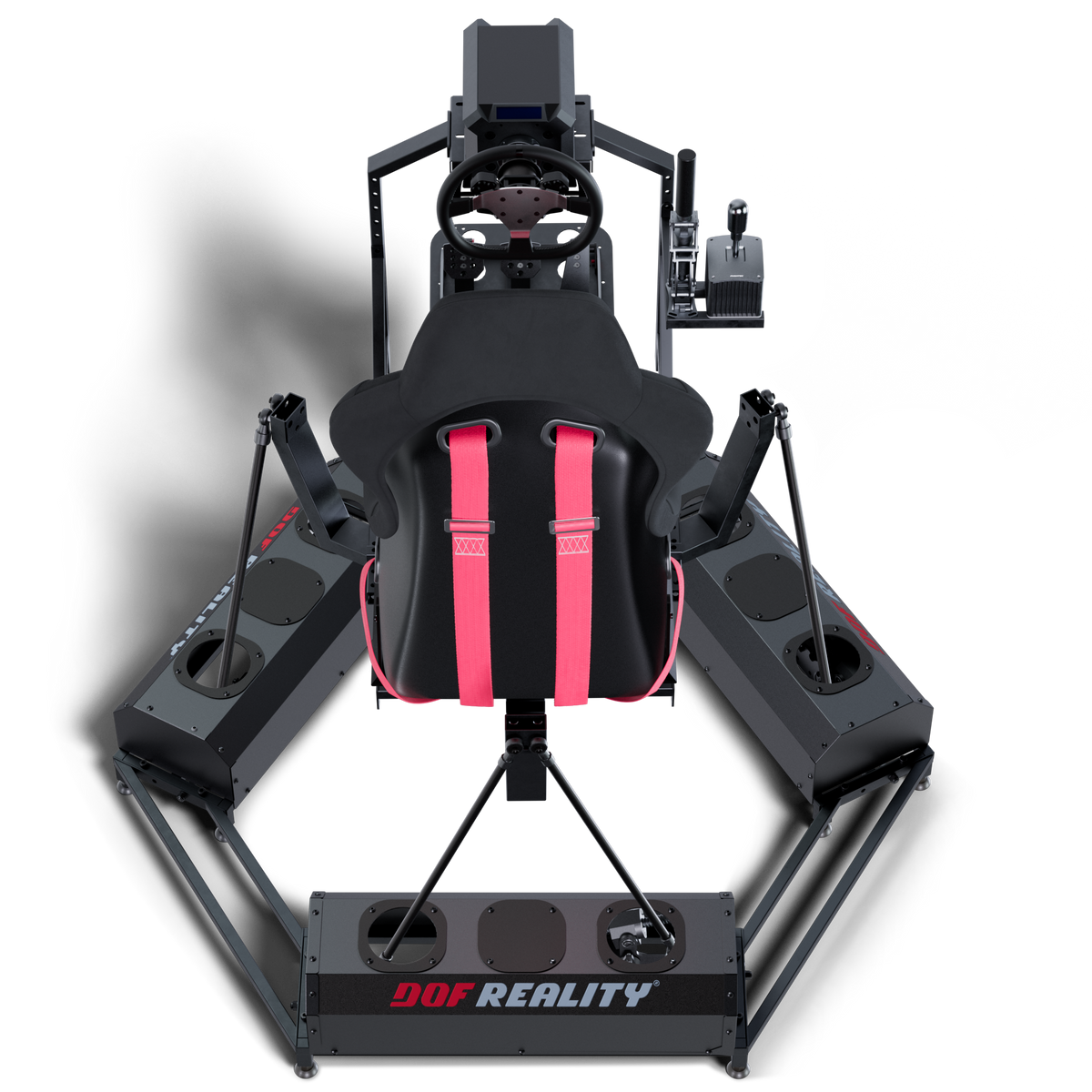

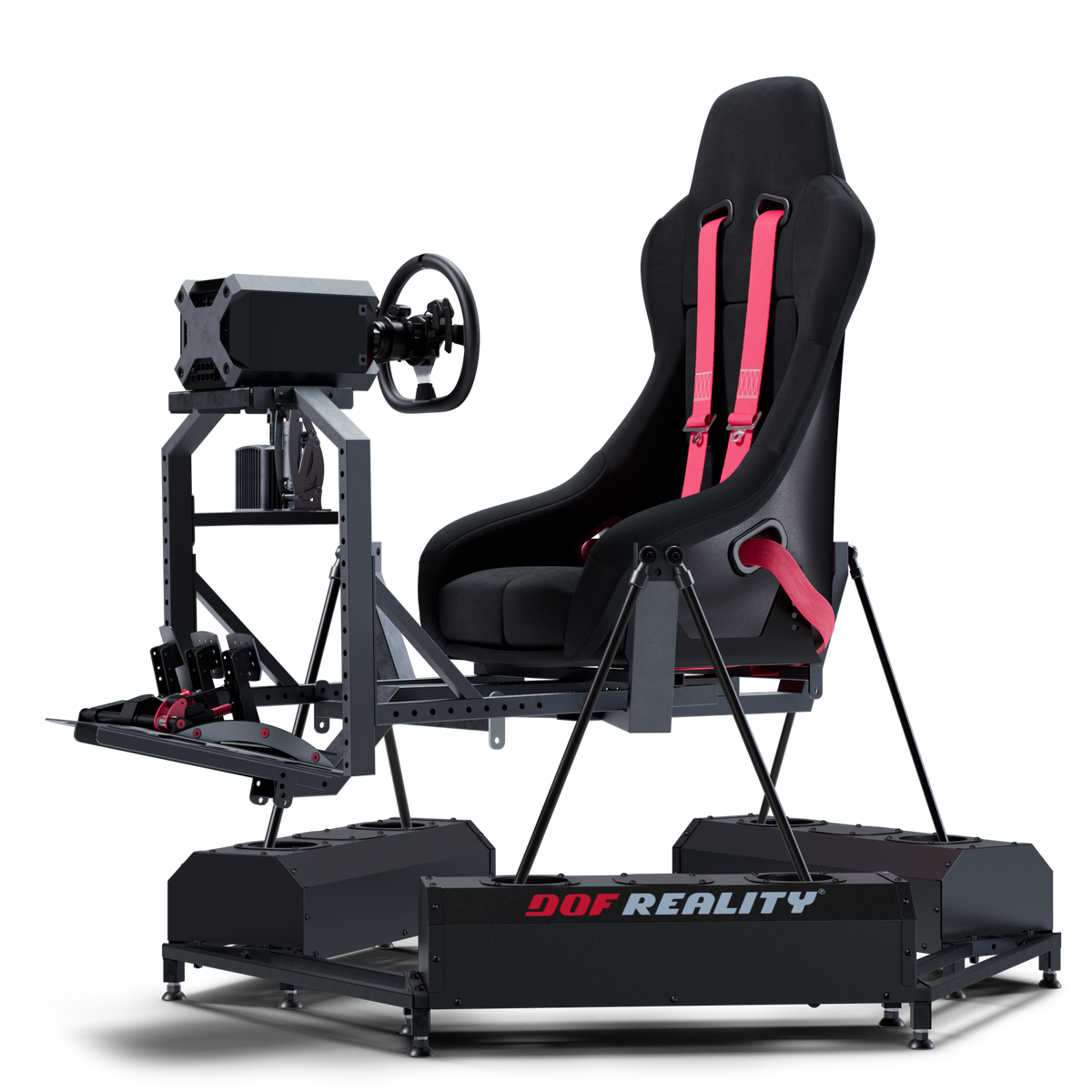

DOF Reality H6 6-Axis Motion Platform
Overview
The DOF Reality H6 is the flagship of the consumer Hero series. All six axes move: pitch, roll, yaw, surge, sway, and heave. Every motion you would feel in a real car is reproduced through the chassis. Curbs, bumps, weight transfer, hard cornering, traction loss, vertical impacts, and the gradual elevation changes that 3-axis platforms cannot capture.
Built since 2014 by DOF Reality in Ukraine with commercial-grade European steel. Six motors deliver 1500W peak power with 28 N/m torque each. Separate front and rear roll centers reproduce real chassis dynamics.
Holds 170 kg of pilot weight, supports the full 145+ title SimRacingStudio library, and works with every major direct drive wheelbase. If you want the most complete motion experience without stepping into commercial Pro tier, this is the build.
Key Features

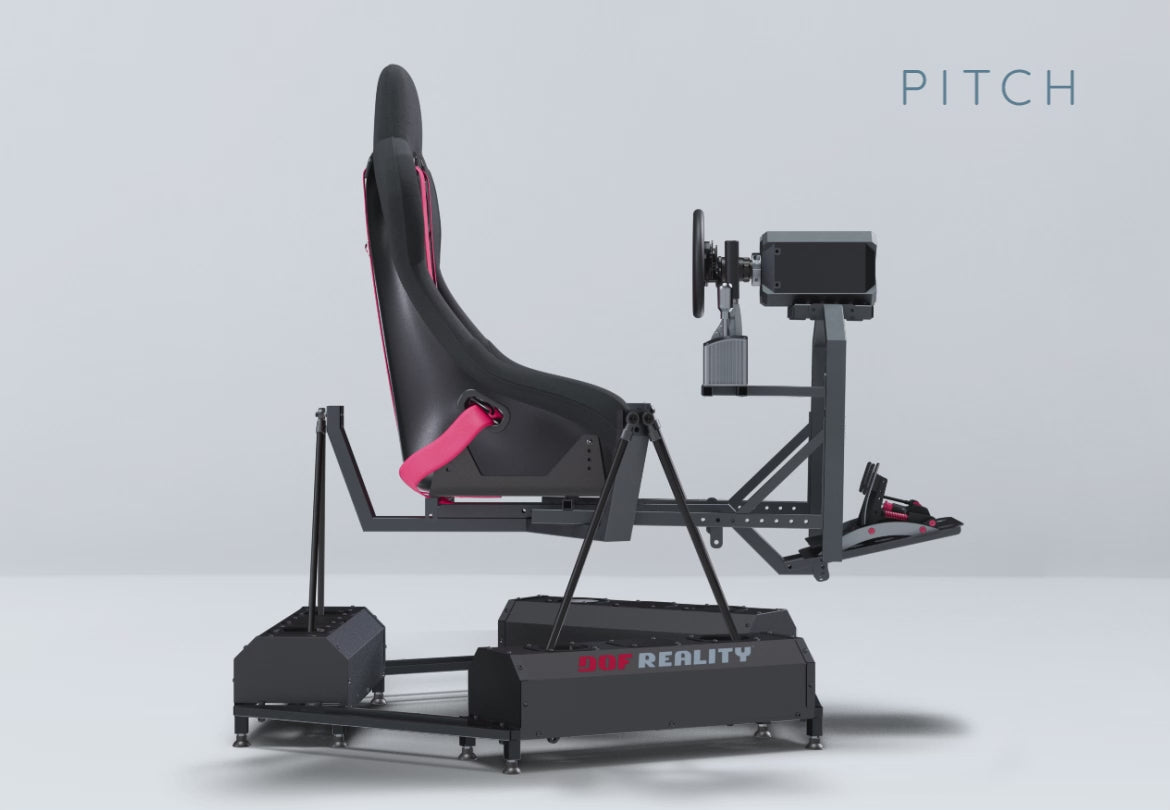

- True 6-axis full motion (Pitch, Roll, Yaw, Surge, Sway, Heave). Every dimension of car dynamics reproduced.
- Surge and sway are the H6-only axes. Front-back and side-to-side translation that no 4-axis platform offers.
- Separate front and rear roll centers for accurate chassis dynamics.
- 86 deg/sec across 17 degrees of motion at 0.5G all directions. 28 N/m torque per motor, 1500W peak power.
- SimRacingStudio license included. 145+ titles supported.
- Holds 170 kg of pilot weight on commercial-grade European steel.
- Klarna and Affirm financing available at checkout.
Specifications
| Spec | Value |
|---|---|
| DOF Count | 6 (Pitch, Roll, Yaw, Surge, Sway, Heave) |
| Range of Motion | 17 degrees |
| Speed | 86 deg/sec (50 cm/s) |
| Torque | 28 N/m |
| Acceleration | 0.5G all directions |
| Power Consumption | 1500W peak |
| Floor Footprint | 120 x 150 cm (4 x 5 ft) |
| Assembled Dimensions | 138 x 150 x 83 cm (54 x 59 x 33 in) — W x D x H |
| Height | 60 cm (2 ft) |
| Max Pilot Weight | 170 kg / 375 lbs |
| Material | Commercial-grade European steel |
| Power Supply | 100 to 240V control unit, USB |
Compatibility
Platforms: PC native via USB. Console motion (PlayStation, Xbox) requires the MagicBox accessory (sold separately) for select titles. VR-ready.
Sim titles supported (145+ via SimRacingStudio):
- Sim racing: iRacing, Assetto Corsa, Assetto Corsa Competizione, Automobilista 1 and 2, Le Mans Ultimate, F1 22 through 25, Forza Horizon 4 and 5, Forza Motorsport, Gran Turismo 7 and Sport, Project CARS 1 through 3 and PRO, Wreckfest 1 and 2, BeamNG.drive, rFactor 2, GRID 2019.
- Rally and drift: Dirt Rally 2.0, EA Sports WRC 24, Assetto Corsa Rally.
- Flight (same hardware, different SimRacingStudio profile): Microsoft Flight Simulator 2024, DCS, X-Plane 12. The H6's surge and heave axes deliver vertical and forward-backward forces that flight sim users specifically benefit from.
Wheels and pedals: works with all major direct drive wheelbases from major DD wheelbase manufacturers. Standard mounting plates accept 80/20 rig hardware.
What's in the Box
- H6 platform with integrated motors
- Rigid metal rig configurable for normal and F1 driving positions
- Mounts for seat or sliding rails
- 100 to 240V control unit with USB cable
- SimRacingStudio software license
- Quick assembly tool kit
- 1-year manufacturer warranty
Not included: seat, VR headset, wheelbase, pedals, monitor.
Shipping and Delivery
DOF Reality consolidates orders into a batch every 2 weeks. Total delivery time is 2 to 4 weeks from order placement to your door, via FedEx (North America) or DHL (rest of world). Two-box shipment: Box 1 is 61 kg / 80 x 70 x 30 cm, Box 2 is 55 kg / 80 x 70 x 30 cm.
Customer pays import duties on delivery. Duty varies by destination; typical US deliveries see import duties billed by the carrier (FedEx in North America, DHL elsewhere) on delivery. Sim Drive does not collect this — it is a separate transaction with the carrier.
Warranty and support. Full 1-year manufacturer warranty included. Sim Drive Performance is your first point of contact for product support and coordinates directly with DOF Reality on warranty claims and escalated technical issues. Extended +1 year warranty available as an upgrade option on request.
Overview
The DOF Reality H6 is the flagship of the consumer Hero series. All six axes move: pitch, roll, yaw, surge, sway, and heave. Every motion you would feel in a real car is reproduced through the chassis. Curbs, bumps, weight transfer, hard cornering, traction loss, vertical impacts, and the gradual elevation changes that 3-axis platforms cannot capture.
Built since 2014 by DOF Reality in Ukraine with commercial-grade European steel. Six motors deliver 1500W peak power with 28 N/m torque each. Separate front and rear roll centers reproduce real chassis dynamics.
Holds 170 kg of pilot weight, supports the full 145+ title SimRacingStudio library, and works with every major direct drive wheelbase. If you want the most complete motion experience without stepping into commercial Pro tier, this is the build.
Key Features
- True 6-axis full motion (Pitch, Roll, Yaw, Surge, Sway, Heave). Every dimension of car dynamics reproduced.
- Surge and sway are the H6-only axes. Front-back and side-to-side translation that no 4-axis platform offers.
- Separate front and rear roll centers for accurate chassis dynamics.
- 86 deg/sec across 17 degrees of motion at 0.5G all directions. 28 N/m torque per motor, 1500W peak power.
- SimRacingStudio license included. 145+ titles supported.
- Holds 170 kg of pilot weight on commercial-grade European steel.
- Klarna and Affirm financing available at checkout.
Specifications
| Spec | Value |
|---|---|
| DOF Count | 6 (Pitch, Roll, Yaw, Surge, Sway, Heave) |
| Range of Motion | 17 degrees |
| Speed | 86 deg/sec (50 cm/s) |
| Torque | 28 N/m |
| Acceleration | 0.5G all directions |
| Power Consumption | 1500W peak |
| Floor Footprint | 120 x 150 cm (4 x 5 ft) |
| Assembled Dimensions | 138 x 150 x 83 cm (54 x 59 x 33 in) — W x D x H |
| Height | 60 cm (2 ft) |
| Max Pilot Weight | 170 kg / 375 lbs |
| Material | Commercial-grade European steel |
| Power Supply | 100 to 240V control unit, USB |
Compatibility
Platforms: PC native via USB. Console motion (PlayStation, Xbox) requires the MagicBox accessory (sold separately) for select titles. VR-ready.
Sim titles supported (145+ via SimRacingStudio):
- Sim racing: iRacing, Assetto Corsa, Assetto Corsa Competizione, Automobilista 1 and 2, Le Mans Ultimate, F1 22 through 25, Forza Horizon 4 and 5, Forza Motorsport, Gran Turismo 7 and Sport, Project CARS 1 through 3 and PRO, Wreckfest 1 and 2, BeamNG.drive, rFactor 2, GRID 2019.
- Rally and drift: Dirt Rally 2.0, EA Sports WRC 24, Assetto Corsa Rally.
- Flight (same hardware, different SimRacingStudio profile): Microsoft Flight Simulator 2024, DCS, X-Plane 12. The H6's surge and heave axes deliver vertical and forward-backward forces that flight sim users specifically benefit from.
Wheels and pedals: works with all major direct drive wheelbases from major DD wheelbase manufacturers. Standard mounting plates accept 80/20 rig hardware.
What's in the Box
- H6 platform with integrated motors
- Rigid metal rig configurable for normal and F1 driving positions
- Mounts for seat or sliding rails
- 100 to 240V control unit with USB cable
- SimRacingStudio software license
- Quick assembly tool kit
- 1-year manufacturer warranty
Not included: seat, VR headset, wheelbase, pedals, monitor.
Shipping and Delivery
DOF Reality consolidates orders into a batch every 2 weeks. Total delivery time is 2 to 4 weeks from order placement to your door, via FedEx (North America) or DHL (rest of world). Two-box shipment: Box 1 is 61 kg / 80 x 70 x 30 cm, Box 2 is 55 kg / 80 x 70 x 30 cm.
Customer pays import duties on delivery. Duty varies by destination; typical US deliveries see import duties billed by the carrier (FedEx in North America, DHL elsewhere) on delivery. Sim Drive does not collect this — it is a separate transaction with the carrier.
Warranty and support. Full 1-year manufacturer warranty included. Sim Drive Performance is your first point of contact for product support and coordinates directly with DOF Reality on warranty claims and escalated technical issues. Extended +1 year warranty available as an upgrade option on request.
