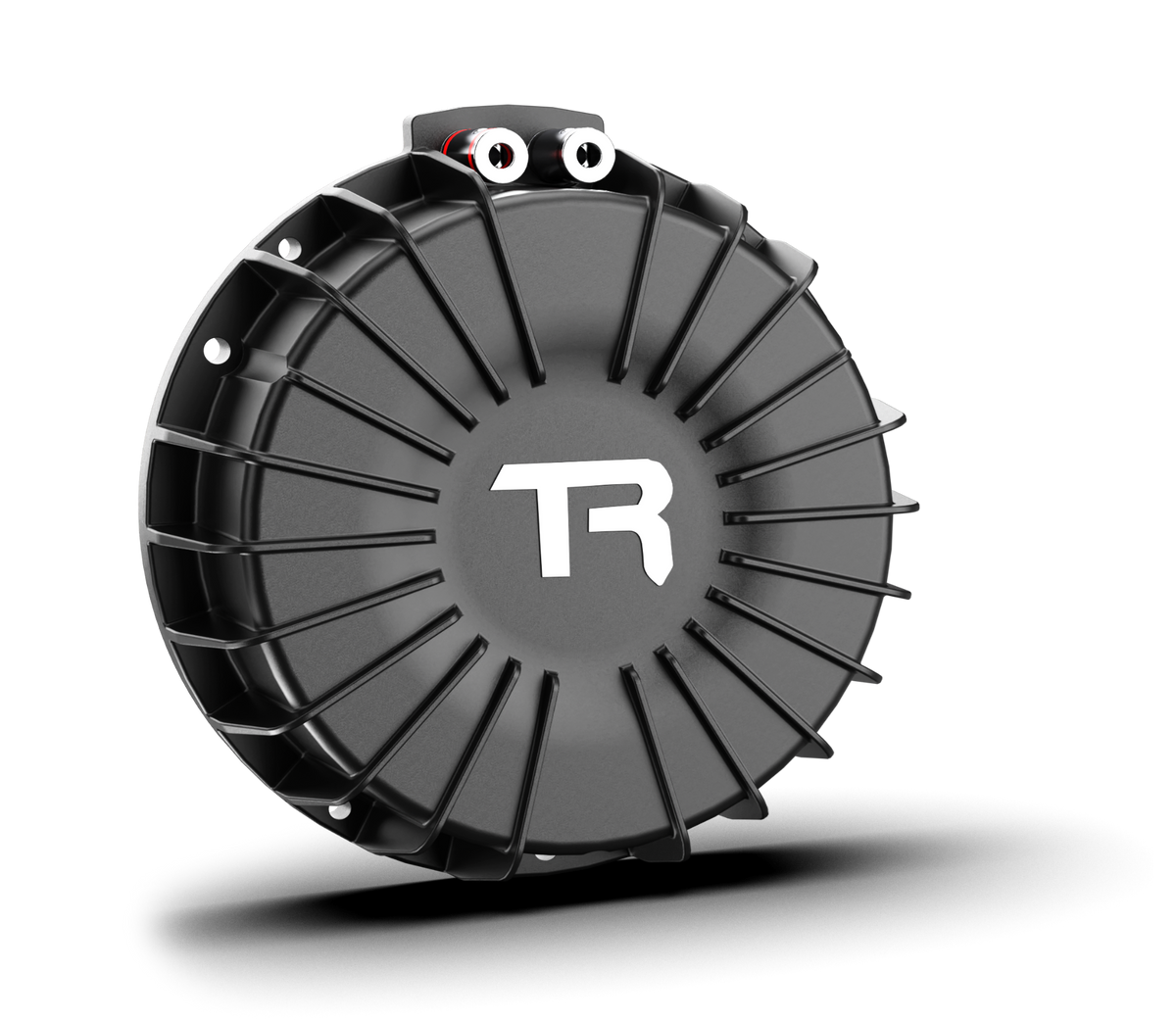

    Trak Racer TR-BSA100 Pro 100W Haptic Bass Shaker

    Turn low-frequency effects into powerful physical feedback throughout your simulator.

    The Trak Racer TR-BSA100 Pro Haptic Bass Shaker is a high-output tactile transducer designed to reproduce deep, physical vibration through your sim racing cockpit, simulator seat, flight simulator or gaming setup.

    Instead of simply hearing engine RPM, exhaust rumble, kerbs, bumps, impacts or runway vibration, the TR-BSA100 transfers low-frequency energy directly into the simulator structure so you can feel the action through the chassis and seat.

    With 50W nominal power, 100W maximum input power, 4Ω impedance and a 20–120 Hz effective frequency range, the TR-BSA100 is designed for deep, powerful haptic effects where a compact control-mounted shaker is not enough.

    Feel The Engine. Feel The Road. Feel The Impact.
    Built For Deep Tactile Immersion
    Sim Racing
    Feel the car through the cockpit
    • Engine RPM and exhaust vibration
    • Kerbs and road texture
    • Bumps and chassis impacts
    • Drivetrain and gear-change effects
    • Wheel slip and traction effects
    Flight Simulation
    Bring aircraft effects into the seat
    • Engine and propeller vibration
    • Runway rumble
    • Touchdown impacts
    • Turbulence effects
    Gaming & Media
    Add physical low-frequency effects
    • Explosions and impacts
    • Gunfire and recoil effects
    • Environmental bass
    • Music and low-frequency audio
    Deep, Powerful Low-Frequency Feedback
    50W Nominal / 100W Maximum Power

    The TR-BSA100 is designed to move significantly more mass than compact control-mounted shakers, creating deep physical feedback that can be transmitted through a simulator seat, chassis or rigid mounting point.

    Its 20–120 Hz effective frequency range is ideal for reproducing engine harmonics, exhaust resonance, impacts and other low-frequency effects that are difficult to experience through conventional speakers alone.

    Flexible Mounting

    For maximum effect, the TR-BSA100 should be mounted securely to a rigid simulator structure so vibration can be transferred efficiently through the cockpit.

    • Simulator seats and seat frames
    • Sim racing cockpits
    • Aluminium profile simulator frames
    • Motion platforms
    • Flight simulator frames
    • Gaming chairs and custom simulator installations

    For best performance, pair it with a compatible low-frequency Class-D amplifier and a suitable Trak Racer bass shaker mounting solution.

    What's Included
    • 1 × TR-BSA100 Pro Haptic Bass Shaker
    • 2 m / 6.56 ft 16-Gauge Speaker Wire
    PLEASE NOTE: Amplifier and mounting bracket are not included.
    Pair the TR-BSA100 with a compatible Trak Racer amplifier and mounting solution for a complete haptic setup.
    Specifications
    Product Model TR-BSA100
    Product Type Low-Frequency Tactile Transducer / Bass Shaker
    Dimensions Ø155 × 51 mm
    Rated AC Impedance 4Ω ±10% (22°C)
    Rated DC Resistance 3.0Ω ±3% (22°C)
    Resonant Frequency 40 Hz ±10%
    Effective Frequency Range 20–120 Hz
    Nominal Input Power 50W
    Maximum Input Power 100W
    Buzz & Rattle Test 14V, 20–200 Hz
    Operating Condition 10 Vrms sine wave at 20–200 Hz, normal operation
    Magnet Ø70 × Ø32 × 12 mm
    Product Weight 1.25 kg
    Trak Racer
    Device Manager

    One App. Complete Control.

    Configure compatible Trak Racer haptic hardware and electronics from one platform.

    Free Download
    Why Trak Racer?

    Trak Racer has been designing simulation hardware since 2008, developing products for sim racing, flight simulation and professional simulator environments.

    Feel the engine. Feel the impact. Feel the simulation.
