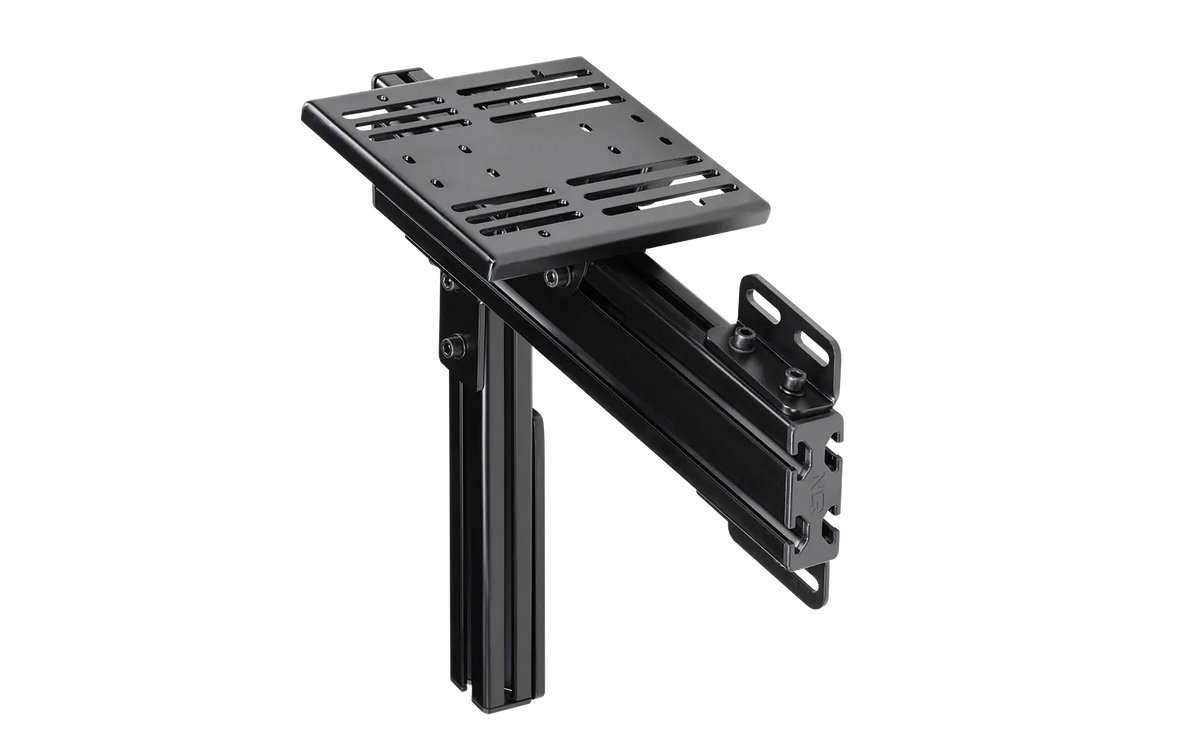

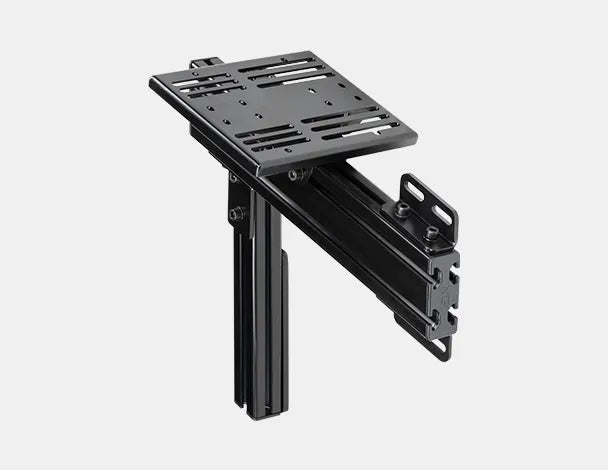

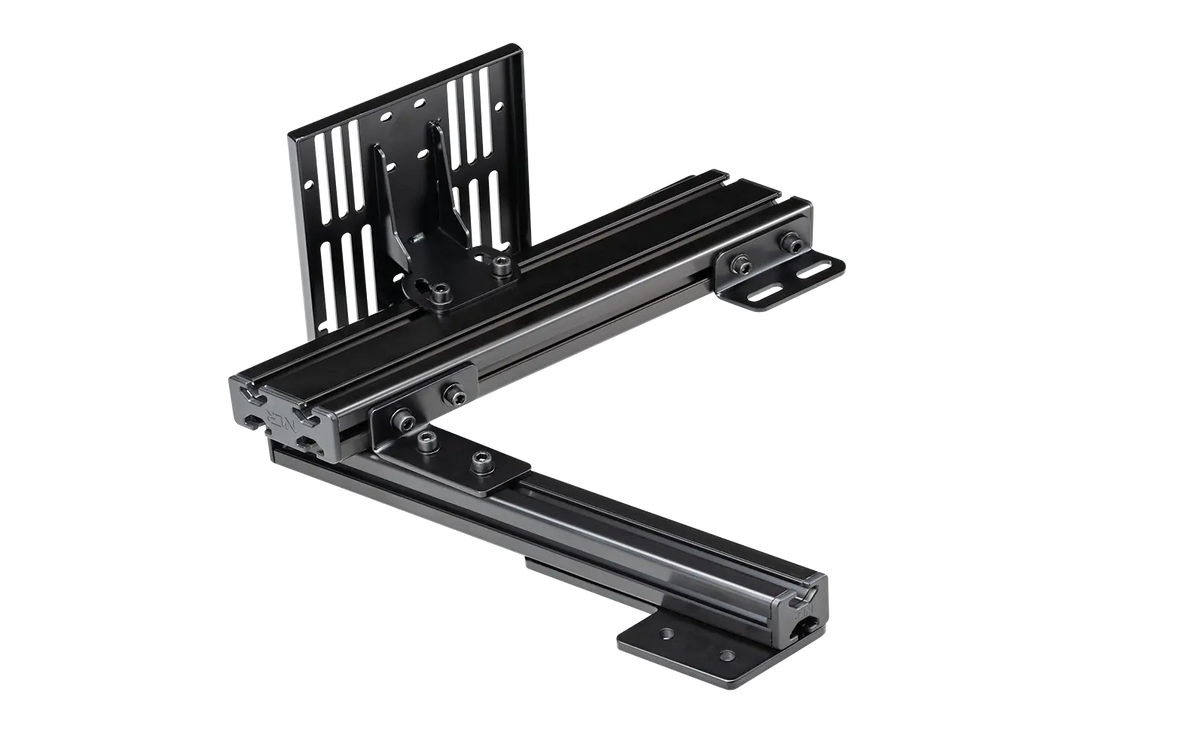

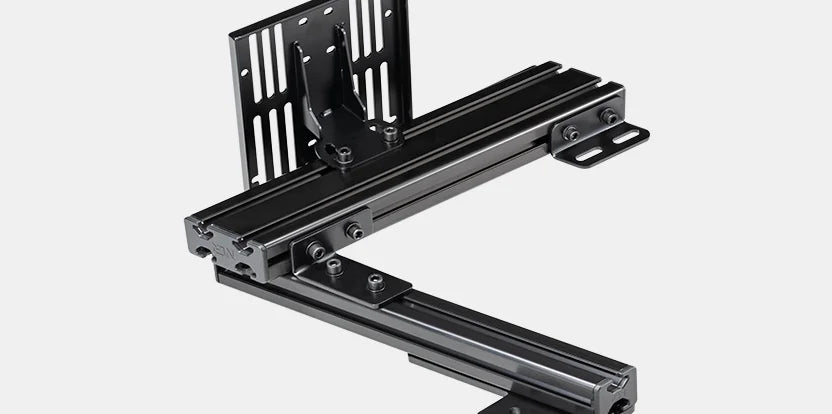

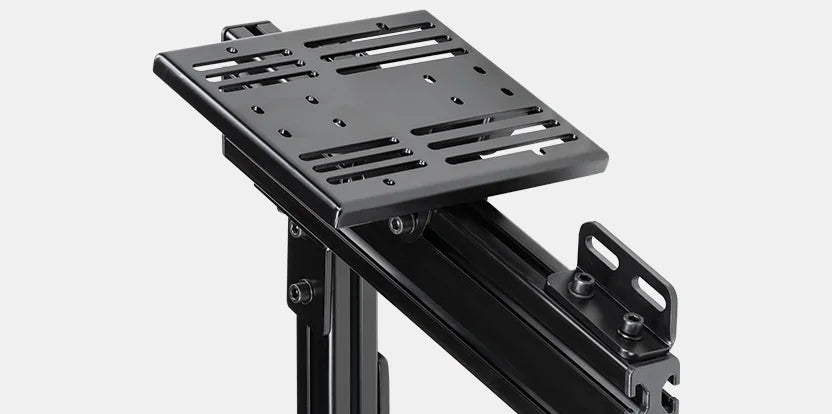

ELITE SHIFTER ADD-ON – BLACK EDITION
$151.99
- New and factory sealed
- Shipping cost shown at checkout
- Insured and tracked
- Manufacturer warranty
- Ships within 5 business days
About this product
The Elite Shifter Add-On, Black Edition, gives your shifter or handbrake a solid, adjustable mount on a Next Level Racing Elite cockpit. It assembles for left-hand or right-hand use, so it goes on whichever side you shift from.
Built to stay put
The add-on pairs aluminum extrusion, custom anodized black, with laser cut carbon steel. The hardware is black electroplated and rust resistant, so it holds up and looks right next to the rest of the Elite range. Here is what carries the load:
- Elite Shifter Plate in carbon steel
- 4080 aluminum extrusion shifter arm
- 4040 aluminum extrusion shifter arm support
- 8 mm carbon steel shifter support connecting plate
- 2 x 4 mm folded carbon steel corner brackets
- 5 mm carbon steel shifter arm support bracket
Those steel plates and brackets keep the shifter steady through intense races. It is a good match for high-end shifters and handbrakes.
Key features
- Reversible assembly, so it mounts on the left or the right of the cockpit
- Built for the Elite range of Next Level Racing cockpits
- Takes major shifters and handbrakes from Thrustmaster, Fanatec, BJ Sim Racing, Heusinkveld and Logitech
- Black anodized aluminum and carbon steel parts for strength and rigidity
- A 4080 extrusion arm on a 4040 extrusion support for extra strength
Adjustment range
The mount is designed around range of motion, so you can place the lever exactly where your hand falls.
| Adjustment | Range |
|---|---|
| Shifter plate angle | 32° |
| Shifter plate horizontal | 100 mm |
| Shifter arm angle | 16° |
| Shifter arm vertical | 180 mm |
| Shifter arm horizontal | 100 mm |
Key specs
| Spec | Value |
|---|---|
| Product dimensions | (L) 46 cm x (W) 23 cm x (H) 39.5 cm / (L) 18.1 inches x (W) 9 inches x (H) 15.6 inches |
| Product weight | 4.7 kg / 10.4 lbs |
| Boxed weight | 5.5 kg / 12.2 lbs |
| Box dimensions | (L) 51.5 cm x (W) 24 cm x (H) 18 cm / (L) 20.3 inches x (W) 9.4 inches x (H) 17.1 inches |
| Product number | NLR-E034 |
Compatibility
Cockpits:
- Next Level Racing F-GT Elite Lite
- Next Level Racing GTElite Lite
- Next Level Racing Elite Series cockpits
Compatible shifters and handbrakes include:
| Brand | Models |
|---|---|
| Fanatec | Clubsport Handbrake |
| Thrustmaster | TH8A, RSTSS, TSS+ |
| BJ Sim Racing | BJ Sim Racing Shifter 3.0; BJ Shifter and Handbrake |
| Heusinkveld | SQ Shifter |
| Logitech | G25, 27, 29, 920 Shifter |
| DSD | SQ Shifter (only 2 mounting points) |
| Jinx | Jinx Shifter (mounts directly to the extrusion piece) |
| Simworx | Pro Series |
In the box
- Next Level Racing Elite Shifter Arm
- Instruction manual
- Assembly hardware and tools
- Digital assembly instructions and video: bit.ly/nlr-instructions
Assembly
Common questions
What is it for?
It mounts a shifter or handbrake to an Elite series cockpit on a sturdy platform you can adjust.
Which cockpits does it fit?
The Next Level Racing Elite Series, including the F-GT Elite Lite and GTElite Lite.
Can I put it on the left?
Yes. It attaches to the right or the left side of the Elite cockpit.
The cockpit and electronics are not included.
Read more Show less
Specifications
Specifications
- Dimensions
- 46 x 23 x 39.5 cm
- Boxed dimensions
- 51.5 x 24 x 18 cm
- Boxed weight
- 5.5 kg
