F-GT ELITE 160 WHEEL PLATE EDITION
$1,240.99
- Brand-new, factory sealed
- Freight shown before you pay
- Insured and tracked delivery
- Full manufacturer warranty
- Ships within 5 business days
Build it out
Parts made for the Next Level Racing line. Tick what you want and it ships on the same order. Hover a part to see what it does.
Seats
The part you sit in. It bolts to the seat rails on the frame, and on most rigs the position slides back and forth to suit your height.
- A bucket seat that bolts to the rig frame, with motors inside that vibrate with the car.
$732.99In stock
- ES1 racing seat with built-in cooling fans, mounted to the cockpit on side seat brackets.
$676.99In stock
- A wide bucket seat that bolts into the rig to hold you in place while you drive.
$450.99In stock
- A reclining bucket seat with built-in lumbar support, bolted to the rig's seat rails.
$450.99In stock
- A bucket seat that bolts to the rig's floor rails and tilts back to the angle you want.
$450.99In stock
- A reclining bucket seat in PU leather that bolts into the rig's seat mounts.
$281.99In stock
- A reclining seat with breathable mesh panels, mounted on the rig's seat rails.
$337.99In stock
- A reclining seat in PU leather and suede, mounted on the rig's seat rails.
$337.99In stock
- A reclining seat with vibration motors built into it, so the seat shakes with the car.
$563.99In stock
-
ERS4 PU Leather & Suede Edition
$337.99Sold out
- A reclining seat with a tighter racing shape, in fabric and mesh, bolted into the rig.
$315.99In stock
- A reclining seat with a tighter racing shape, in PU leather and suede, bolted into the rig.
$315.99In stock
- Fixed-back ES3 racing seat with a gloss fibreglass shell, supplied with its own side-mount brackets.
$788.99In stock
- Fixed-back ES3 racing seat with a full carbon fibre shell, supplied with its own side-mount brackets.
$1,691.99In stock
- A hard-shell racing seat in Ferrari colours that bolts into the cockpit's seat mounts.
$563.99In stock
Monitors
Holds the screen at racing distance. A cockpit-mounted arm bolts to the rig so the screen and the seat move together. A freestanding stand sits on the floor by itself and carries heavier or triple-screen setups.
- A floor-standing post that holds one screen, up to 65 inches, in front of the driver.
$337.99In stock
- A floor-standing post in grey that holds one screen, up to 65 inches, in front of the driver.
$337.99In stock
- A floor-standing frame that holds three screens side by side in front of the driver.
$563.99In stock
- A stand that rests on the floor and holds four screens in an arc in front of the driver.
$676.99In stock
- An arm that fixes a screen straight onto the cockpit frame instead of using a floor stand.
$337.99In stock
- An extra arm that adds a screen above the others on an Elite freestanding monitor stand.
$224.99In stock
- Holds a second screen above the main one, bolted to the frame, for lap times and telemetry.
$224.99In stock
- Mounts an extra screen above the main display on the frame itself, for timing or telemetry.
$224.99In stock
Wheels and pedals
The controls themselves. The wheelbase bolts to the deck at the front of the rig, the pedals to the pedal plate down below.
- A bracket that lets a direct drive wheelbase bolt to the front or the sides of the rig.
$224.99In stock
Mounts
Brackets that keep everything else in reach once you are strapped in: keyboard and mouse, a tablet, a button box, a stream deck, the PC itself.
- A tray on a swivel arm that keeps a keyboard and mouse within reach of the seat.
$112.99In stock
- An adjustable arm that holds a tablet or a box of extra buttons next to the wheel.
$168.99In stock
- A clamp-on holder that keeps a VR headset, phone or drink beside the seat.
$89.99In stock
Motion and haptics
Physical feedback. Shakers bolt to the seat or the frame and vibrate with the road surface, the kerbs and the engine, so you feel the car as well as see it.
- Motion platform that sits under a compatible Next Level Racing cockpit and tilts it with the game for braking, cornering and bumps.
$3,158.99In stock
- Heave, pitch and roll motion platform that a compatible Next Level Racing cockpit bolts onto, so the rig moves with the game.
$2,819.99In stock
- Brackets that let the cockpit bolt onto a Motion V3 or Traction Plus platform.
$168.99In stock
Flight
Mounts for a flight stick, a throttle and rudder pedals, if you fly as well as drive.
- Plates and brackets that let a flight stick, throttle and yoke mount onto an aluminium-profile rig.
$224.99In stock
Extras
The things you notice later: casters so it rolls out of the way, a mat to protect the floor, covers, longer cables.
- Wheels that fit under the frame so the rig can be rolled away and then locked in place.
$89.99In stock
About this product

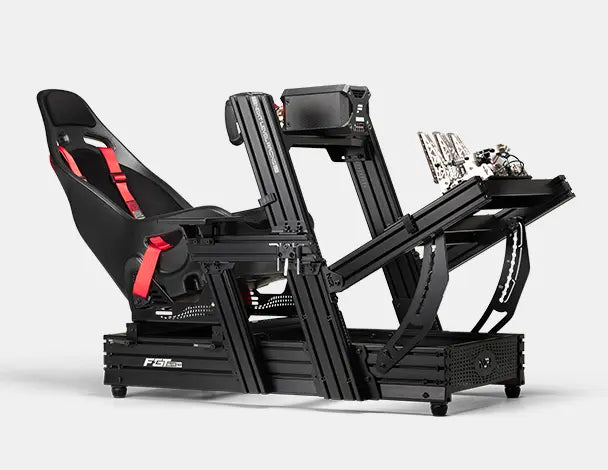

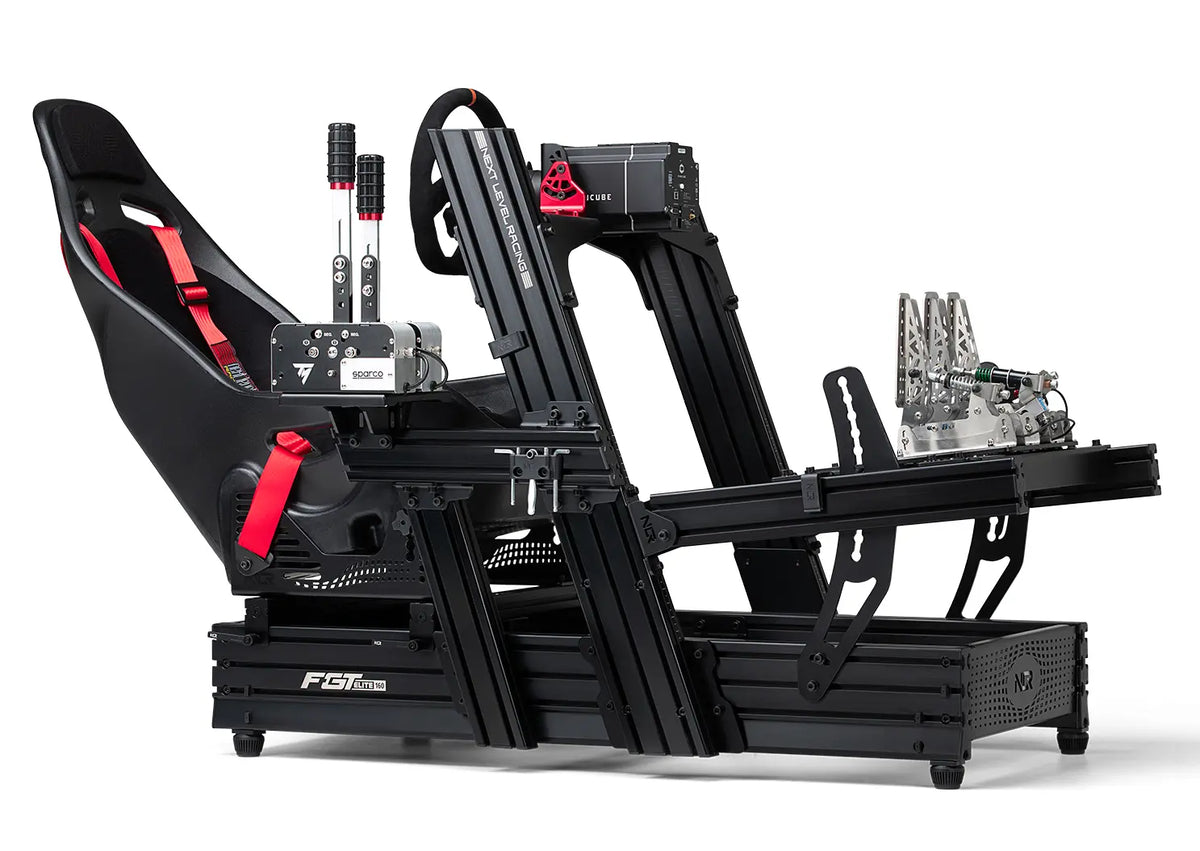

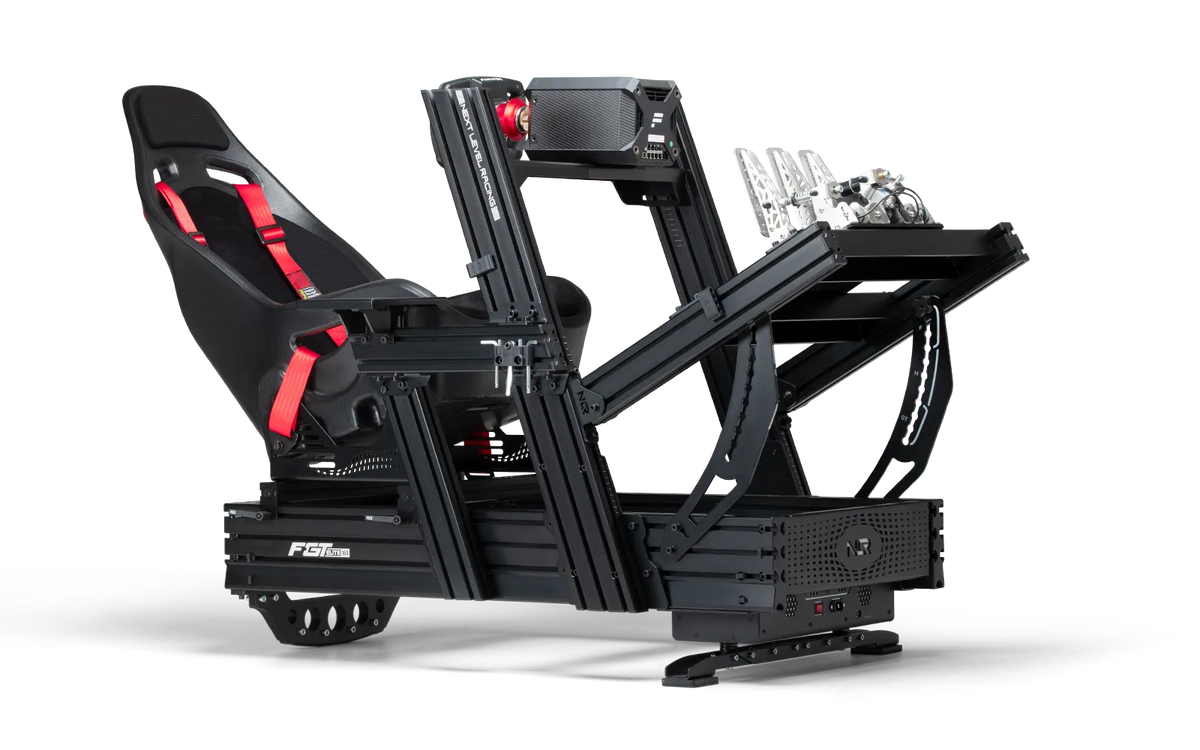

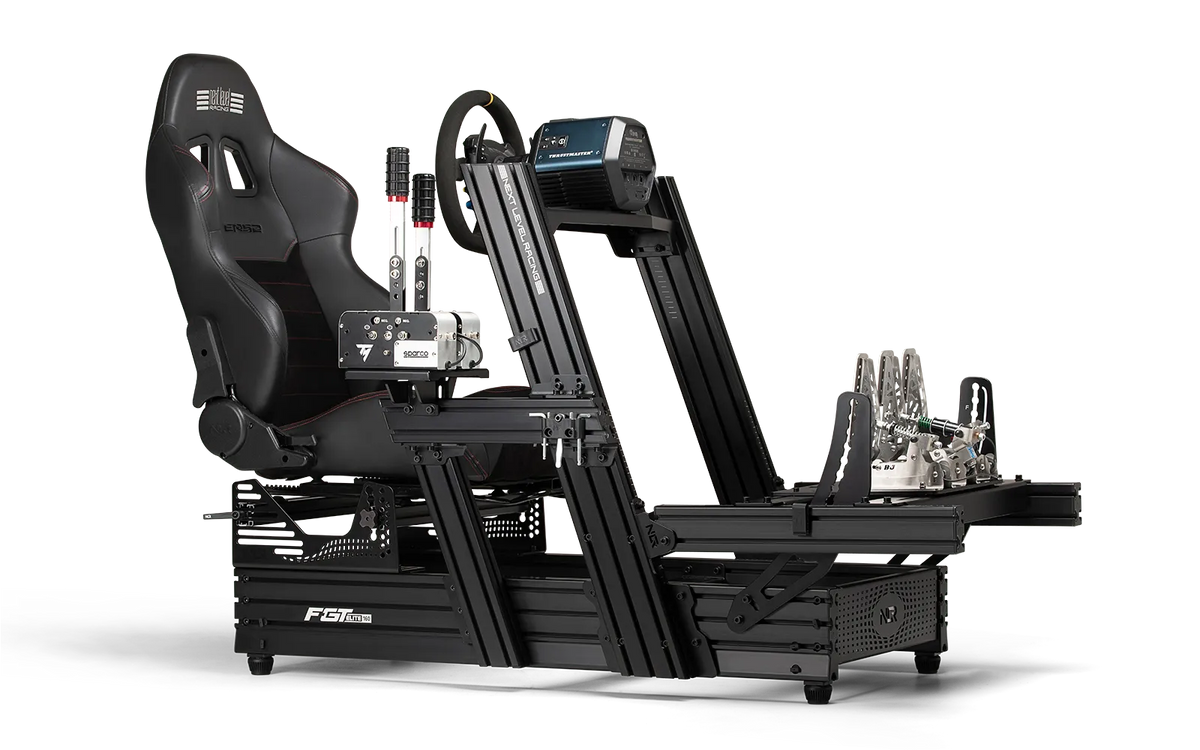

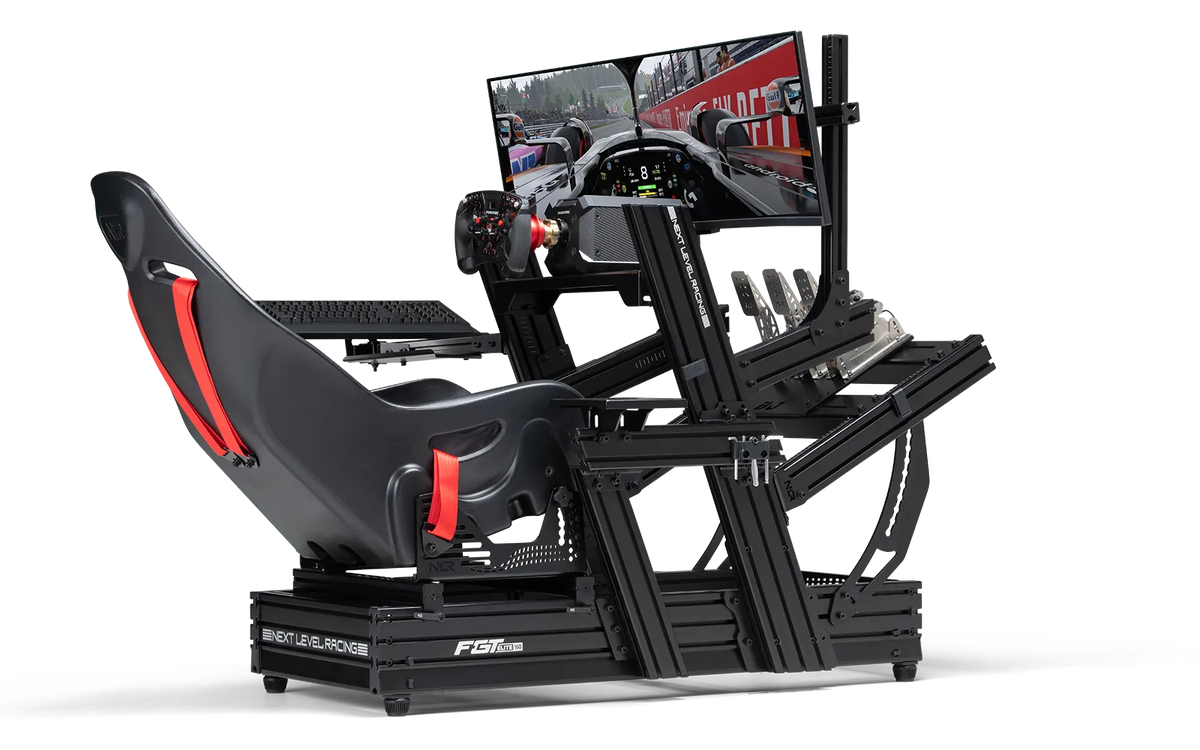

The Next Level Racing® F-GT Elite 160 Wheel Plate Edition is a flex-free aluminum extrusion cockpit with a wheel plate for bottom-mounted wheelbases. It suits serious racers who want a very rigid frame and plenty of room to adjust.
Why it matters
Shaped by research and user feedback
Next Level Racing developed the F-GT Elite 160 from in-depth research and feedback from its users. The result is a stiff aluminum extrusion cockpit that does not flex when you load it.
Quality parts throughout

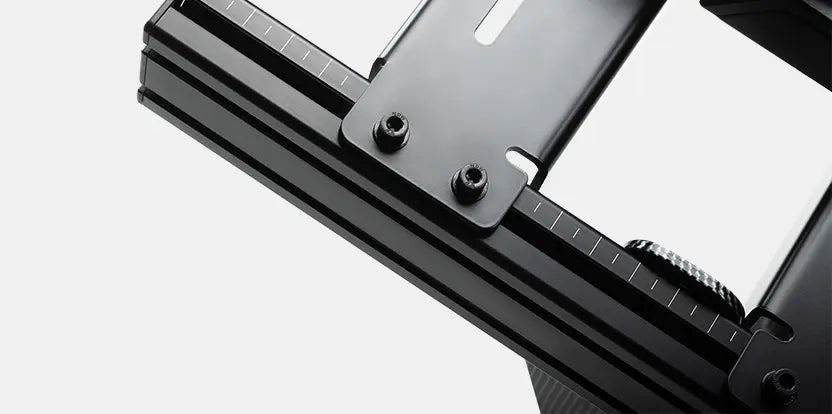

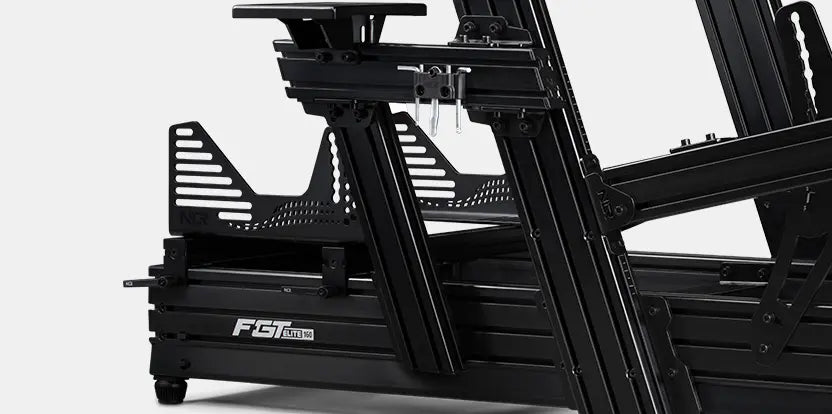

The structure combines high-grade anodized aluminum with powder-coated carbon steel components. Custom NLR end caps and T-slot nuts finish the profile, and the seat sliders (flex-free) and shoulder bolts are also Next Level Racing's own designs. The base uses a custom NLR 160mm x 40mm aluminum profile for strength. Pre-machined holes speed up assembly and add rigidity.
Many ways to sit

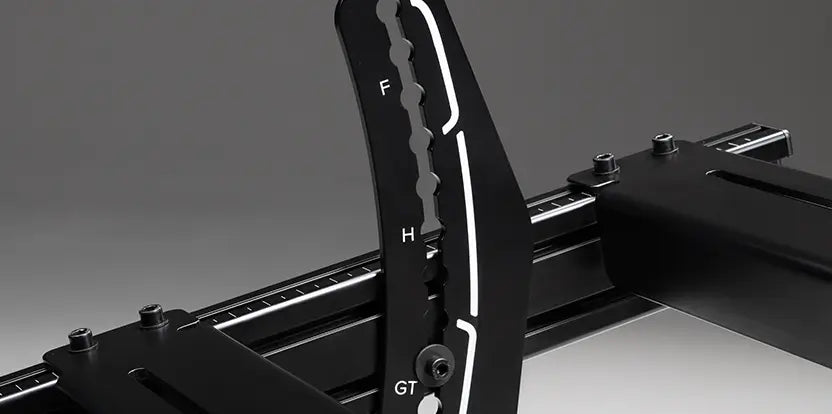

You get a wide range of adjustment and customization. Quick changes take you between Formula, GT, hybrid, truck and tank positions, so one rig handles many driving styles.
Built for bottom-mounted wheels

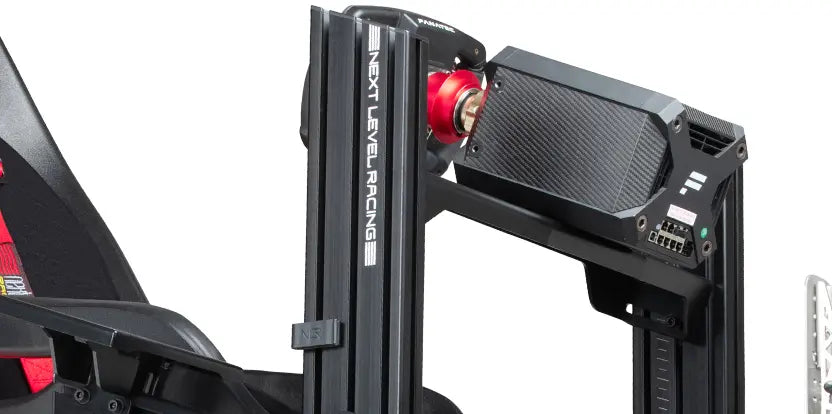

The wheel plate is made for bottom-mounted wheelbases. It is a good match for entry to mid-range wheels from brands like Logitech, Thrustmaster, Fanatec CSL/CSL DD and SimXperience AccuForce. The frame is also pre-drilled for major steering wheel, pedal, shifter and handbrake makers.
Motion compatibility
The cockpit works with the Next Level Racing® Motion Ecosystem. It is designed to integrate with the Motion Platform V3 and the Motion Plus Platform, and you can attach two Motion Plus Platforms. Adding the Traction Plus Platform, or running both motion units together, needs the Next Level Racing® Elite Motion Adaptor Upgrade Kit.
Key features
- 160 aluminum profile: all-in-one, no-compromise cockpit for elite sim racers
- Custom base: NLR 160mm x 40mm aluminum profile for strength and rigidity
- NLR hardware: bespoke end caps, T-slot nuts, flex-free seat sliders and shoulder bolts
- Universal drilling: fits major wheel, pedal, shifter and handbrake brands
- Driving positions: Formula, hybrid, GT, truck and tank
- Motion compatible: works with Next Level Racing Motion Platforms
- Finish: black anodized aluminum profile with powder-coated carbon steel parts
Key specs
| Spec | Value |
|---|---|
| Material | 40/40, 40/80, 40/120, 40/160 aluminum extrusion |

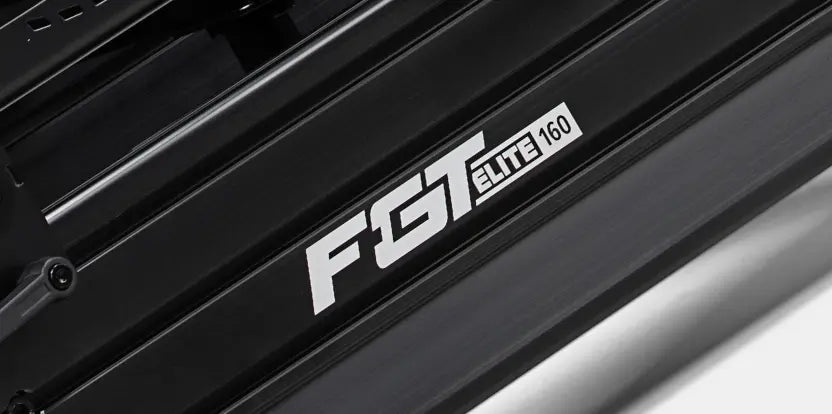

| Finish | Powder coat / anodized aluminum / laser engraved logos and alignment lines |
| Product dimensions | 136cm (L) x 84.2cm (W) x 94.2cm (H) / 53.5inches (L) x 33inches (W) x 37.1inches (H) |
| Boxed dimensions | 126.5cm (L) x 31.5cm (W) x 44cm (H) / 49.8inches (L) x 12.4inches (W) x 17.3inches (H) |
| Product weight (NW) | 57.1 kg / 125.9 lbs |
| Boxed weight (GW) | 63.6 kg / 140.2 lbs |
| Part number | NLR-E025 |
Compatibility
You can add the following Next Level Racing® gear to this cockpit:
| Product | What it adds |
|---|---|
| Next Level Racing® Motion Platform V3 | Motion |
| Next Level Racing® Motion Plus Platform | Motion |
| Next Level Racing® Motion Adaptor Upgrade Kit | Motion mounting |
| Next Level Racing® ES1 Seat | Seat |
| Next Level Racing® ERS1 Seat | Seat |
| Next Level Racing® ERS2 Seat | Seat |
| Next Level Racing® F-GT ELITE 160 Side and Front Mount Brackets | Side or front wheel mounting |
| Next Level Racing® Direct Mount Monitor Stand Black Edition | Screen mounting |
| Next Level Racing® Elite Range of Free Standing Monitor Stand | Screen mounting |
| Next Level Racing® Elite Keyboard and Mouse Tray Black Edition | Keyboard and mouse |
| Next Level Racing® Tablet and Button Box Holder | Tablet and button box |
| Next Level Racing® VR Headset Holder | VR headset |
| Next Level Racing® Lockable Castor Wheels | Moving the rig |
| Next Level Racing® Elite Range of Accessories | Add-ons |
In the box
- Black anodized aluminum extrusion and the wheel plate
- Mounting brackets for the Motion Platform V3

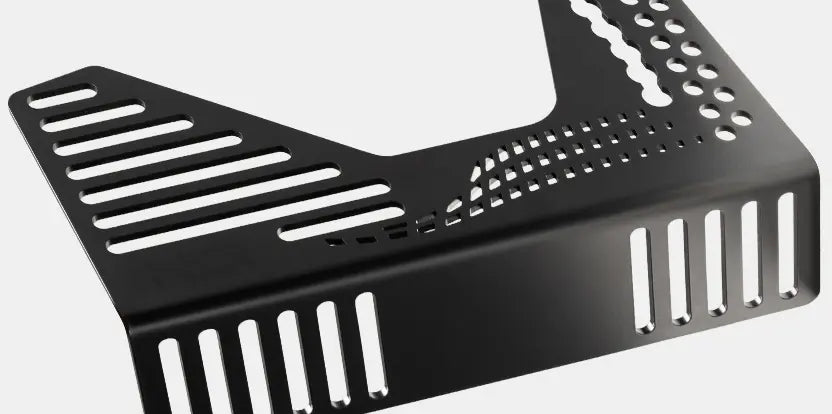

- Seat brackets (Next Level Racing®)
- Shifter and handbrake plate

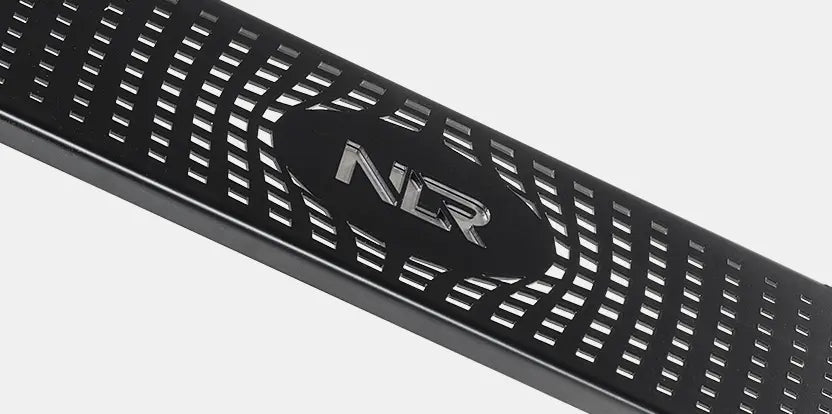

- Safety footstep (Next Level Racing®)
- Shock absorbing feet with height adjustment (Next Level Racing®)
- Custom cable clips (Next Level Racing®)
- ButtKicker® mounting pole
- Toolkit and spirit level (Next Level Racing®)
- Assembly instructions and extra hardware for peripherals
You can also find digital assembly instructions and videos at bit.ly/nlr-instructions. Electronics and accessories are not included.
Assembly
Tap the manual cover to open the PDF instructions.
Read more Show less
Specifications
Specifications
- Dimensions
- 136 x 84.2 x 94.2 cm
- Material
- 40/40, 40/80, 40/120, 40/160 Aluminium Extrusion
- Finish
- High Quality Powder Coat / Anodised Aluminium / Laser Engraved Logos and Alignment Lines
- Boxed dimensions
- 126.5 x 31.5 x 44 cm
- Boxed weight
- 63.6 kg
