GTElite Lite Wheel Plate Edition
$676.99
- Brand-new, factory sealed
- Freight shown before you pay
- Insured and tracked delivery
- Full manufacturer warranty
- Ships within 5 business days
- Assembly required
Build it out
Parts made for the Next Level Racing line. Tick what you want and it ships on the same order. Hover a part to see what it does.
Seats
The part you sit in. It bolts to the seat rails on the frame, and on most rigs the position slides back and forth to suit your height.
- A bucket seat that bolts to the rig frame, with motors inside that vibrate with the car.
$732.99In stock
- ES1 racing seat with built-in cooling fans, mounted to the cockpit on side seat brackets.
$676.99In stock
- Brackets so a side-mount seat you already own can bolt onto the cockpit frame.
$89.99In stock
- A reclining bucket seat with built-in lumbar support, bolted to the rig's seat rails.
$450.99In stock
- A bucket seat that bolts to the rig's floor rails and tilts back to the angle you want.
$450.99In stock
- A reclining bucket seat in PU leather that bolts into the rig's seat mounts.
$281.99In stock
- A reclining seat with breathable mesh panels, mounted on the rig's seat rails.
$337.99In stock
- A reclining seat in PU leather and suede, mounted on the rig's seat rails.
$337.99In stock
- A reclining seat with vibration motors built into it, so the seat shakes with the car.
$563.99In stock
-
ERS4 PU Leather & Suede Edition
$337.99Sold out
- A reclining seat with a tighter racing shape, in fabric and mesh, bolted into the rig.
$315.99In stock
- A reclining seat with a tighter racing shape, in PU leather and suede, bolted into the rig.
$315.99In stock
- Fixed-back ES3 racing seat with a gloss fibreglass shell, supplied with its own side-mount brackets.
$788.99In stock
- Fixed-back ES3 racing seat with a full carbon fibre shell, supplied with its own side-mount brackets.
$1,691.99In stock
- A hard-shell racing seat in Ferrari colours that bolts into the cockpit's seat mounts.
$563.99In stock
Monitors
Holds the screen at racing distance. A cockpit-mounted arm bolts to the rig so the screen and the seat move together. A freestanding stand sits on the floor by itself and carries heavier or triple-screen setups.
- A floor-standing post that holds one screen, up to 65 inches, in front of the driver.
$337.99In stock
- A floor-standing post in grey that holds one screen, up to 65 inches, in front of the driver.
$337.99In stock
- A floor-standing frame that holds three screens side by side in front of the driver.
$563.99In stock
- A stand that rests on the floor and holds four screens in an arc in front of the driver.
$676.99In stock
- An arm that fixes a screen straight onto the cockpit frame instead of using a floor stand.
$337.99In stock
- An extra arm that adds a screen above the others on an Elite freestanding monitor stand.
$224.99In stock
- Holds a second screen above the main one, bolted to the frame, for lap times and telemetry.
$224.99In stock
- Mounts an extra screen above the main display on the frame itself, for timing or telemetry.
$224.99In stock
Wheels and pedals
The controls themselves. The wheelbase bolts to the deck at the front of the rig, the pedals to the pedal plate down below.
- A plate that lets a direct drive wheel base bolt to the front or the side of the frame.
$224.99In stock
Mounts
Brackets that keep everything else in reach once you are strapped in: keyboard and mouse, a tablet, a button box, a stream deck, the PC itself.
- A tray on a swivel arm that keeps a keyboard and mouse within reach of the seat.
$112.99In stock
- An adjustable arm that holds a tablet or a box of extra buttons next to the wheel.
$168.99In stock
- A clamp-on holder that keeps a VR headset, phone or drink beside the seat.
$89.99In stock
Motion and haptics
Physical feedback. Shakers bolt to the seat or the frame and vibrate with the road surface, the kerbs and the engine, so you feel the car as well as see it.
- Heave, pitch and roll motion platform that a compatible Next Level Racing cockpit bolts onto, so the rig moves with the game.
$2,819.99In stock
- Motion platform that sits under a compatible Next Level Racing cockpit and tilts it with the game for braking, cornering and bumps.
$3,158.99In stock
- Brackets that let the cockpit bolt onto a Motion V3 or Traction Plus platform.
$168.99In stock
Flight
Mounts for a flight stick, a throttle and rudder pedals, if you fly as well as drive.
- Plates and brackets that let a flight stick, throttle and yoke mount onto an aluminium-profile rig.
$224.99In stock
Extras
The things you notice later: casters so it rolls out of the way, a mat to protect the floor, covers, longer cables.
- Changes a frame that only has a GT seating position so it can also do formula and hybrid.
$224.99In stock
About this product

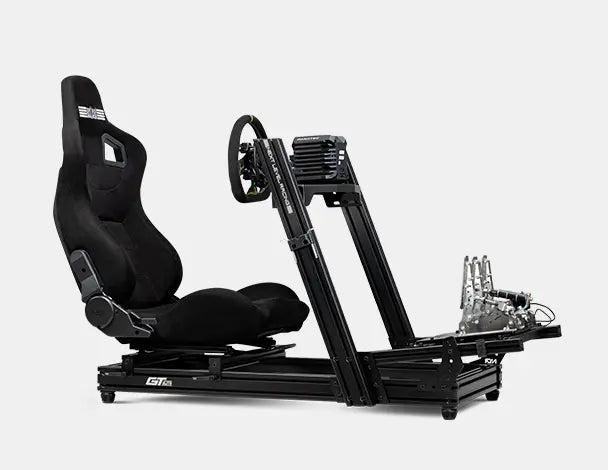

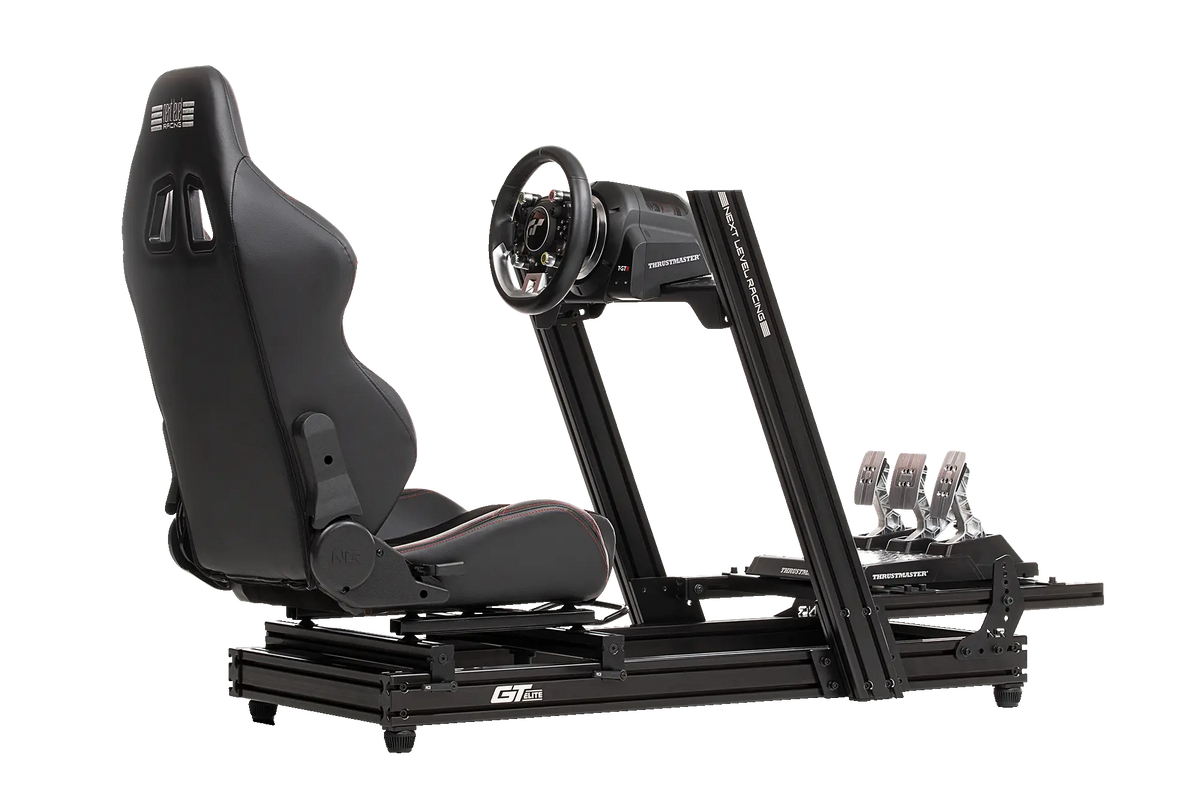

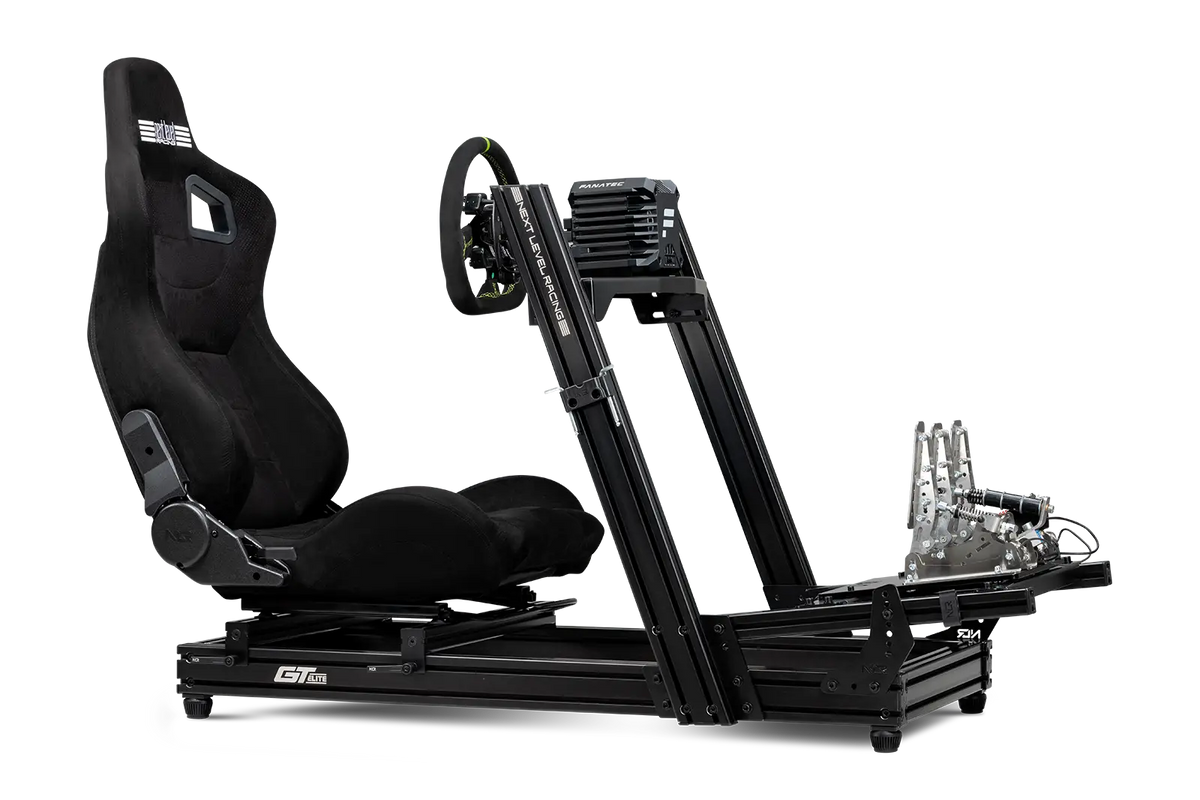

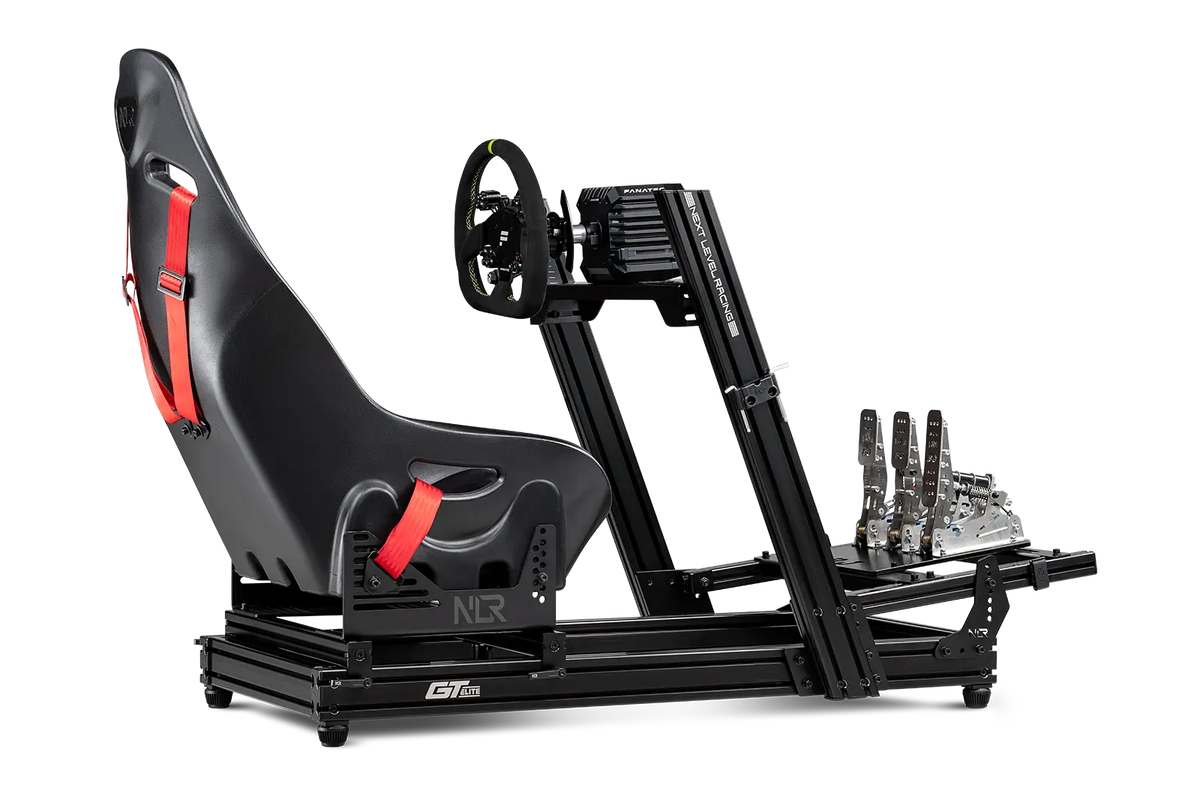

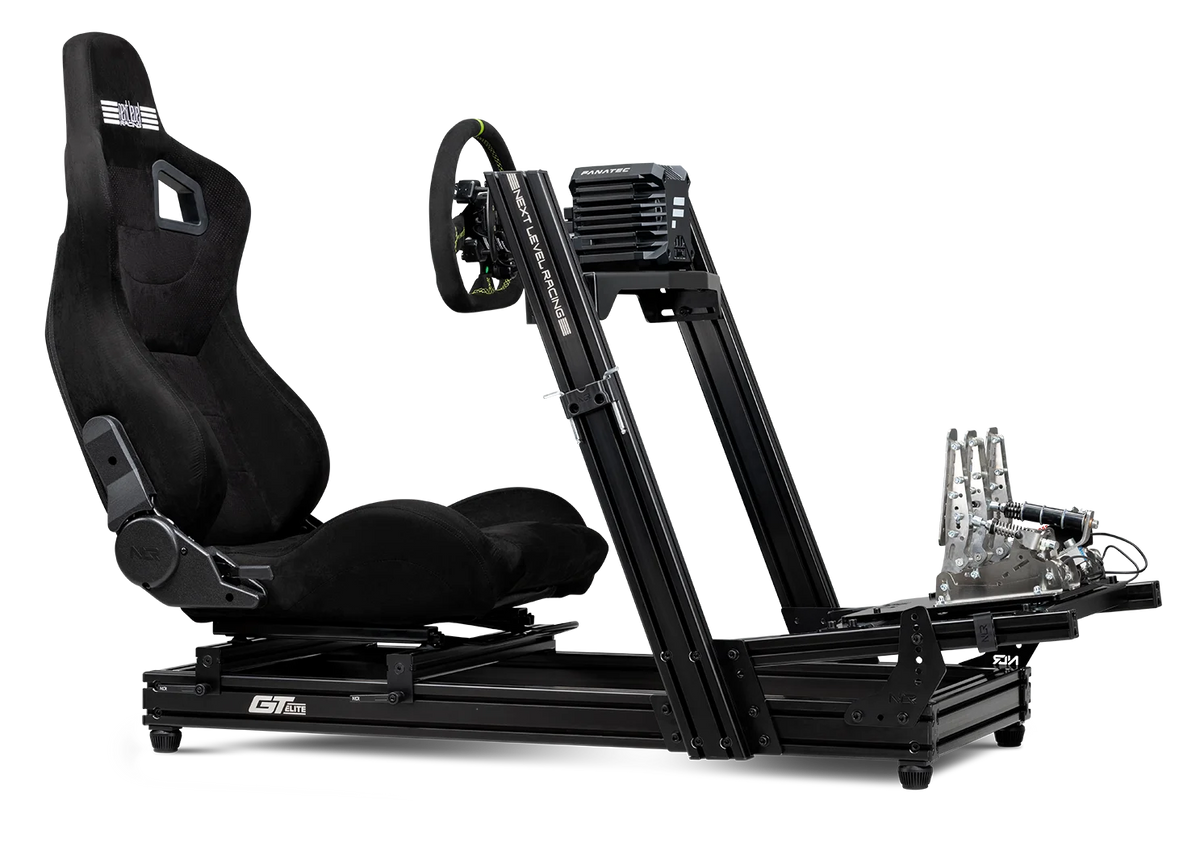

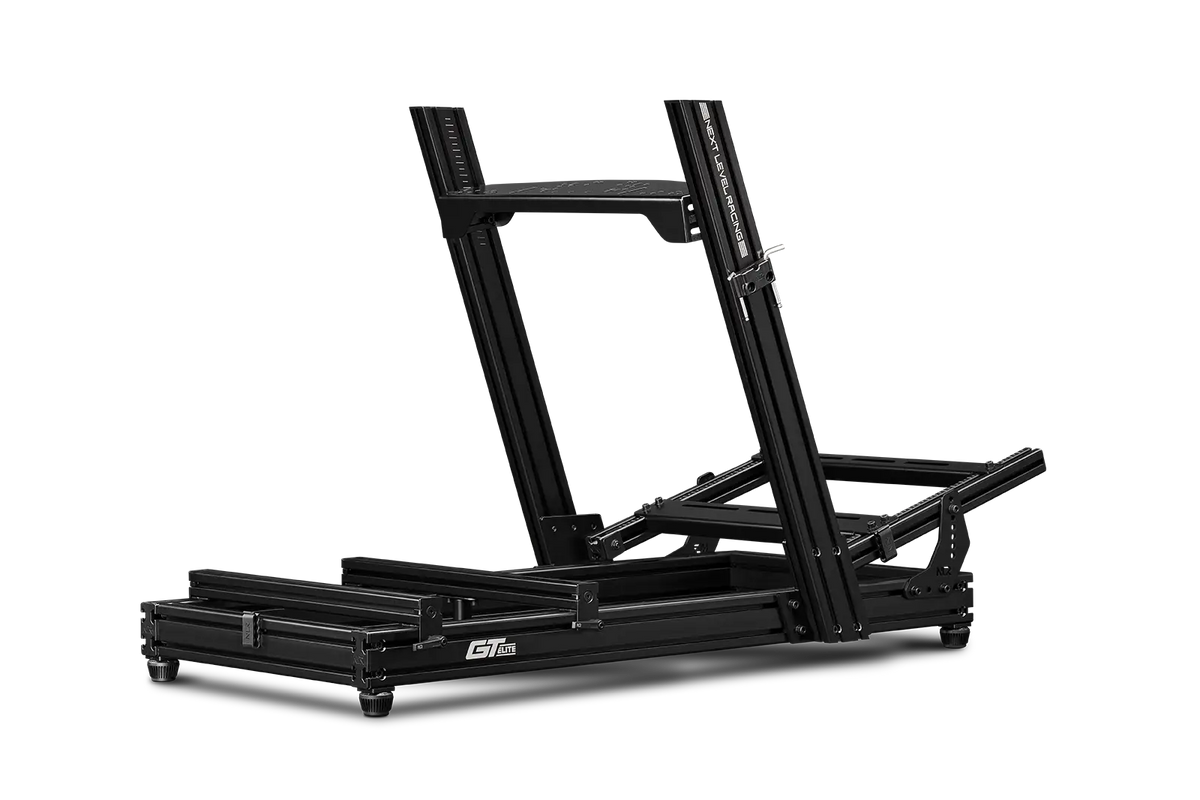

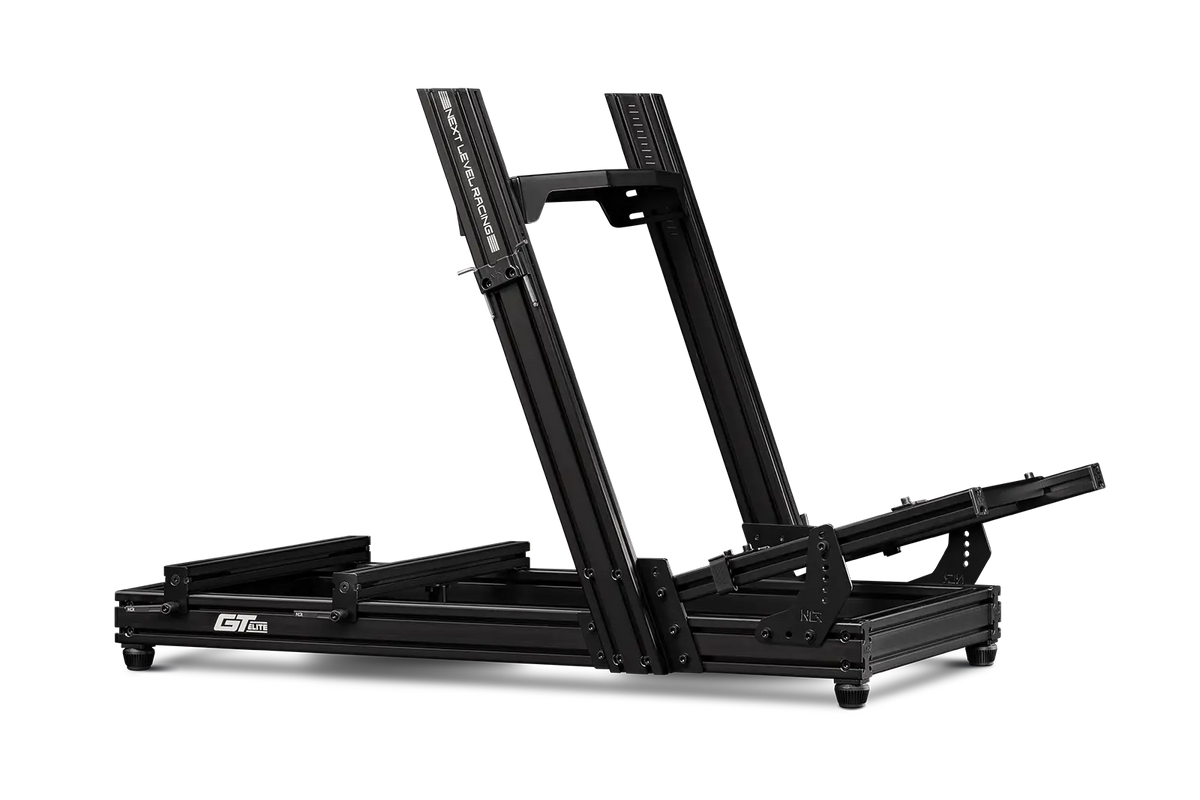

The GTElite Lite Wheel Plate Edition from Next Level Racing® is an aluminum profile GT cockpit built around a wheel plate for bottom-mounted wheelbases. It fits racers on entry to mid-range wheels who want a solid frame now and the option to add motion later.
What sets it apart

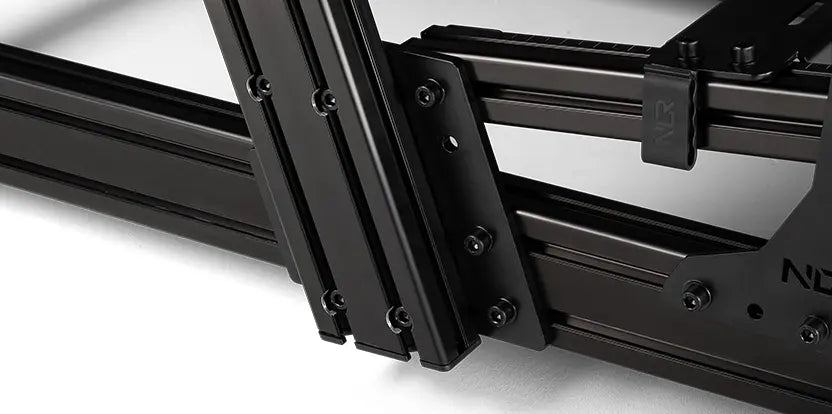

The frame uses a “4080” profile, built for the mid-range category. The difference is a patent-pending layout with its own components, fixtures and reinforcements. Next Level Racing rates it as the most rigid mid-range cockpit, and in some cases stronger than conventional “16040” cockpits.
Detailing borrowed from the Elite series shows up throughout. Against other cockpits in its class, the brand says the GTElite Lite is stiffer, easier to put together, ships with more inclusions and has a better finish.

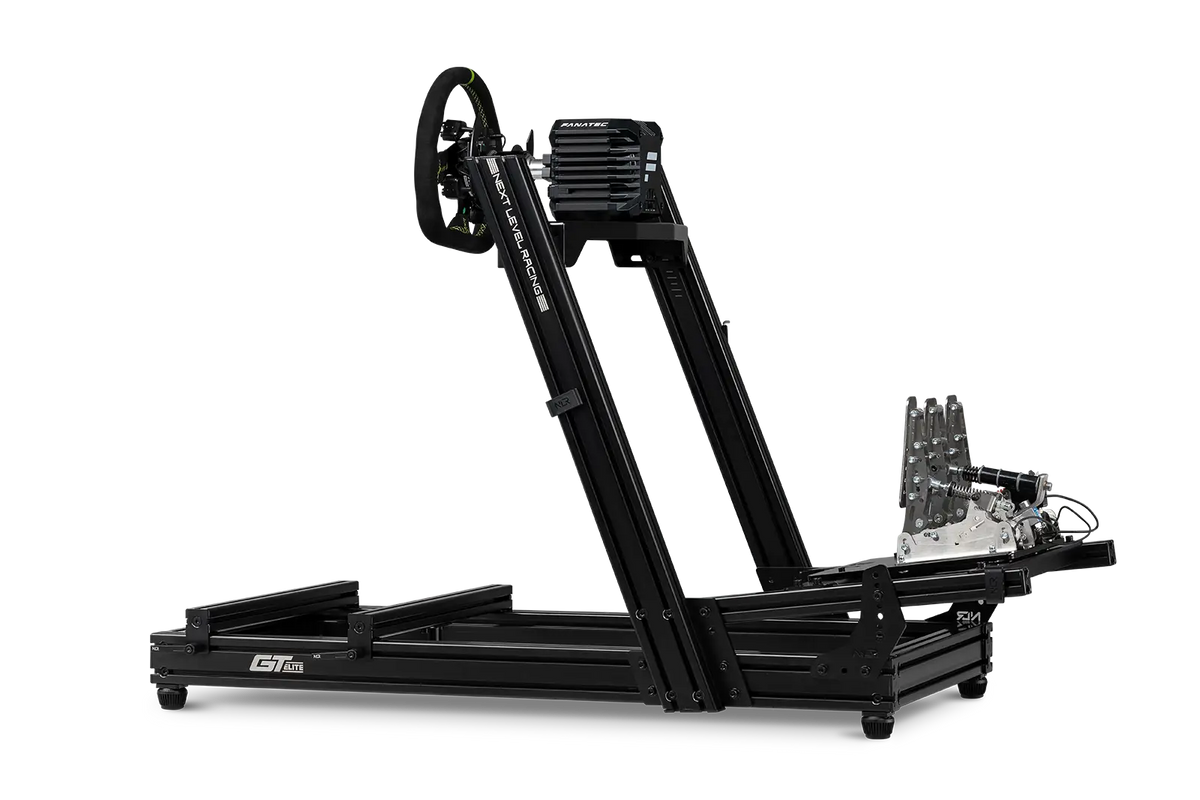

Made for bottom-mounted wheels
The wheel plate is designed for bases that bolt on from below. Good matches include Logitech, Thrustmaster, Fanatec CSL/CSL DD and SimXperience AccuForce. The frame also takes all major brands of wheels, pedals and shifters.
Your driving position

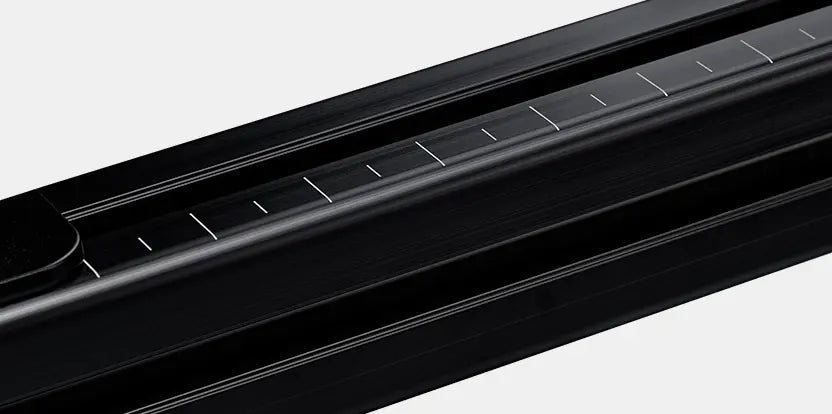

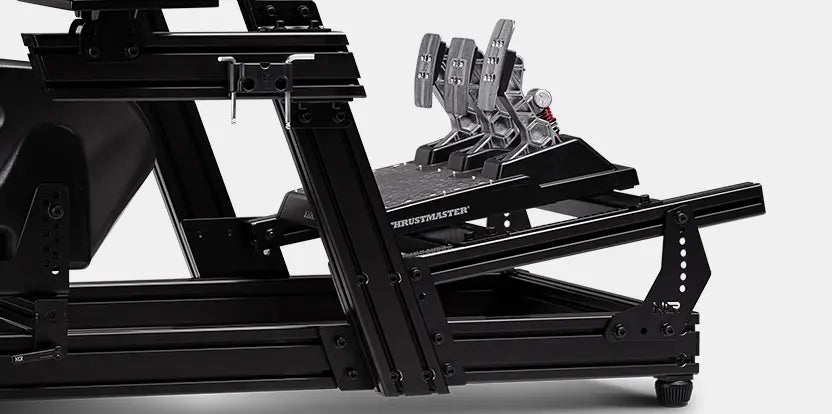

This is a dedicated GT cockpit with a natural, adaptable seating position. The pedal plate moves for height, angle and distance, and the flex-free seat slider system lets you place your seat precisely. Taller wheel mount uprights open up a wider range of positions, so drivers of many sizes can get comfortable.
Upgrade path
Straight from the box, the cockpit pairs with the Next Level Racing® Motion Plus Platform. The Motion Platform V3 and Traction Plus Platform need the Elite Motion Adaptor Upgrade Kit. Ready-set kits can also turn it into a multi-position cockpit. The Motion Kit and Formula kit are purchased separately.
Key features
- Pre-machined holes for a stiffer frame and a simpler build

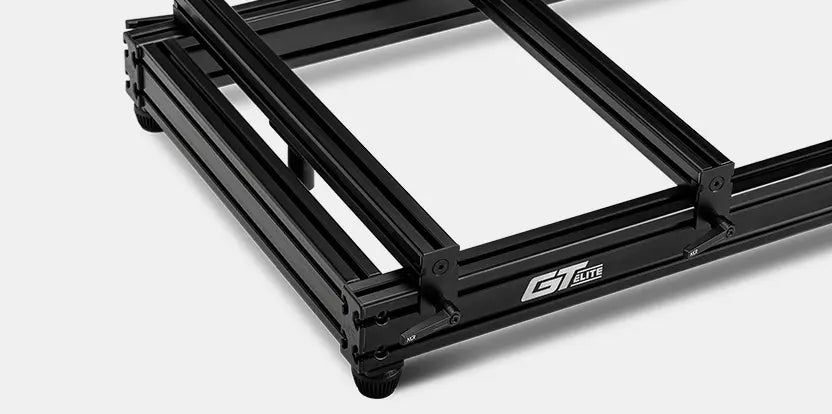

- Fully enclosed base frame and one-piece aluminum profiles
- Anodized black aluminum finish with powder-coated carbon steel parts

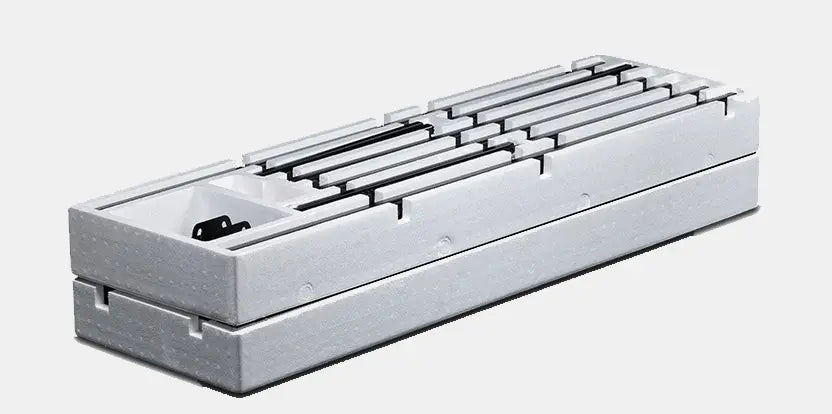

- Double boxing and molded foam to protect profiles and parts in transit
- Extras included: NLR flex-free seat slider system, height adjustable shock absorption feet, Buttkicker® Gamer 2 Adapter, cable management clips and tool kit holder
- Rigid, adjustable mounting for your seat, wheel and pedals
Key specs
| Spec | Value |
|---|---|
| Supported height | 120-210 cm or 4ft to 6ft 9 inches |
| Supported max weight | 150 kg or 330 lbs |
| Product dimensions | (L) 148 cm x (W) 82.5 cm x (H) 86.5cm / (L) 58.3 inches x (W) 32.5 inches x (H) 34.1 inches |
| Box dimensions | 128.5 cm (L) x 41cm (W) x 25.1cm (H) / 50.6 inches (L) x 16.1 inches (W) x 9.9 inches (H) |
| Product weight | 31 kg or 68.3 lbs |
| Boxed weight | 34.3 kg or 75.6 lbs |
| Part number | NLR-E028 |
Compatibility
Next Level Racing® add-ons that fit this cockpit:
- Seats: ERS1 Elite Reclining Seat, ERS2 Elite Reclining Seat, ES1 Seat, Universal Seat Brackets
- Screens: Elite Freestanding Monitor Stands, Elite Direct Monitor Mount (Black Edition)
- Motion: Motion Plus platform out of the box; Motion Platform V3 and Traction Plus platforms with the Elite Motion Adaptor Upgrade Kit
- Accessories: Elite Keyboard and Mouse Tray (Black Edition), Elite Tablet/Button Box Mount Add-On, Elite Formula and Hybrid Pedal Upgrade Kit, Floor Mat
In the box
- The GTElite Lite frame
- Shock-absorbing feet with height adjustment
- Tool holder with Allen keys
- Spirit level (magnetic)
- 6 x cable management clips
- Adaptor for the Buttkicker® Gamer 2
- Hard-mount bolts for wheel and pedals
- Custom end caps
- Printed color assembly booklet
You can also follow the digital instructions and videos at bit.ly/nlr-instructions. Electronics and accessories are not included.
Assembly
Tap the manual cover to open the PDF instructions.
Read more Show less
Specifications
Specifications
- Dimensions
- 148 x 82.5 x 86.5 cm
- Fits drivers
- 120 -210 cm or 4ft – 6ft 9 inches
- Max user weight
- 150 kg
- Boxed dimensions
- 128.5 x 41 x 25.1 cm
- Boxed weight
- 34.3 kg
