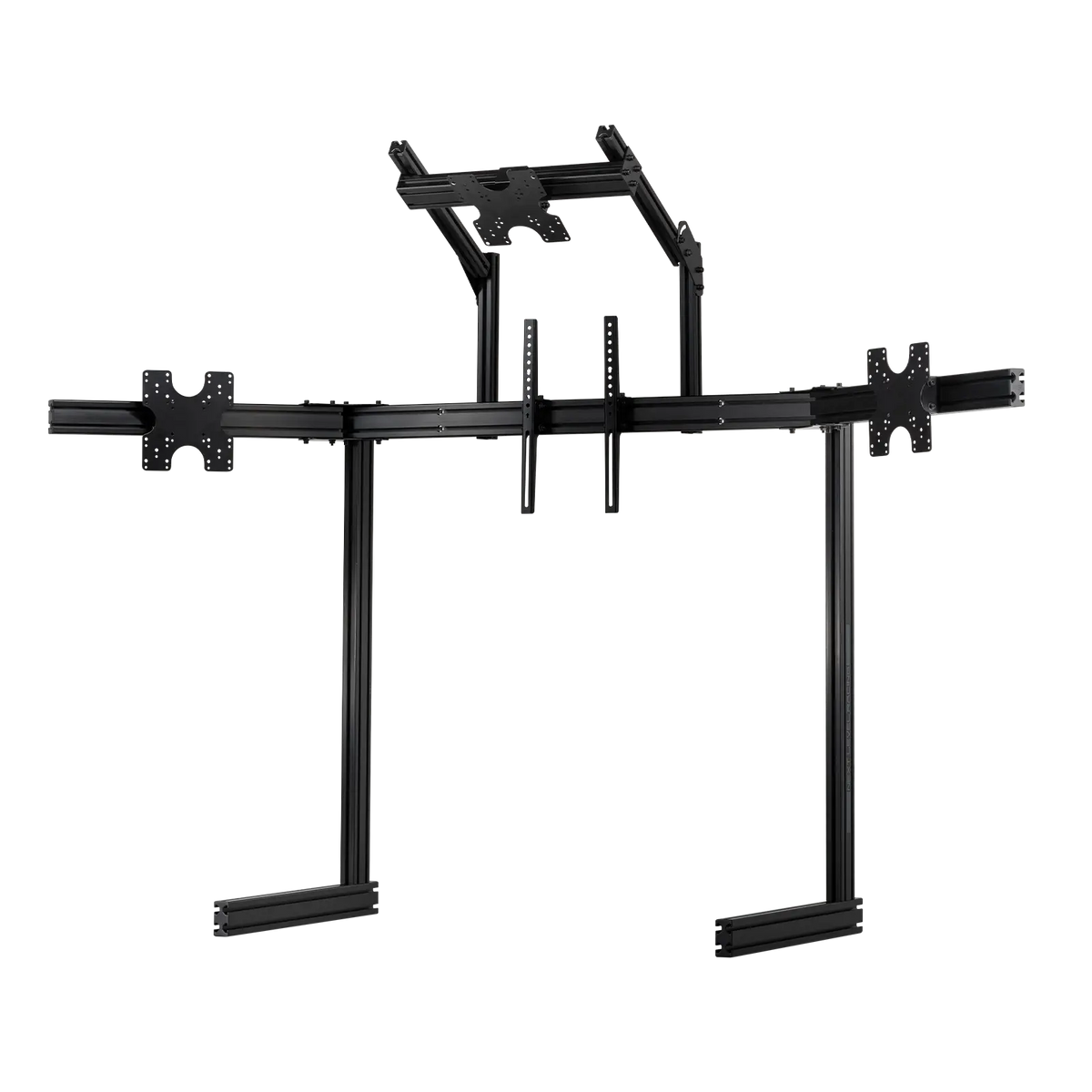

ELITE QUAD MONITOR STAND- BLACK EDITION

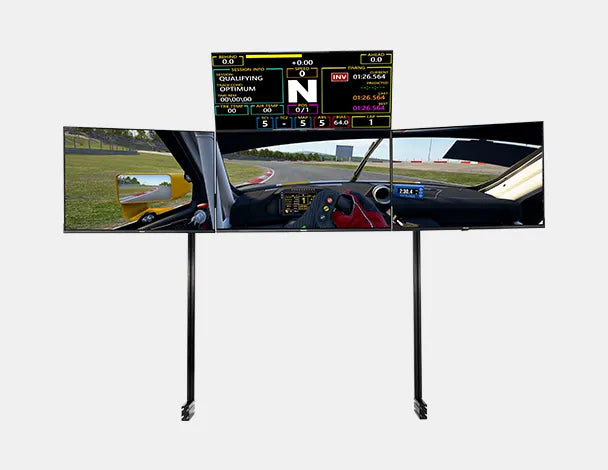

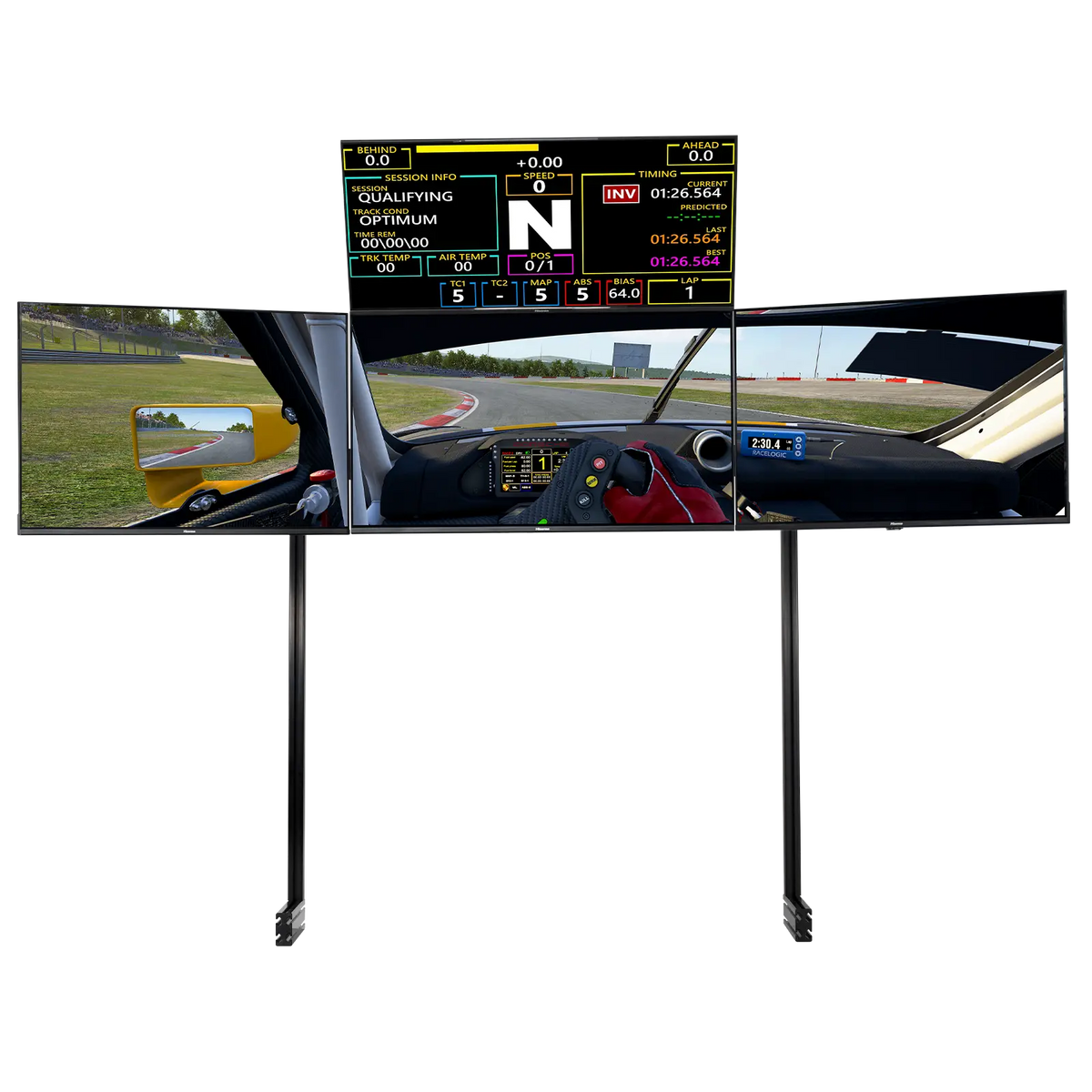

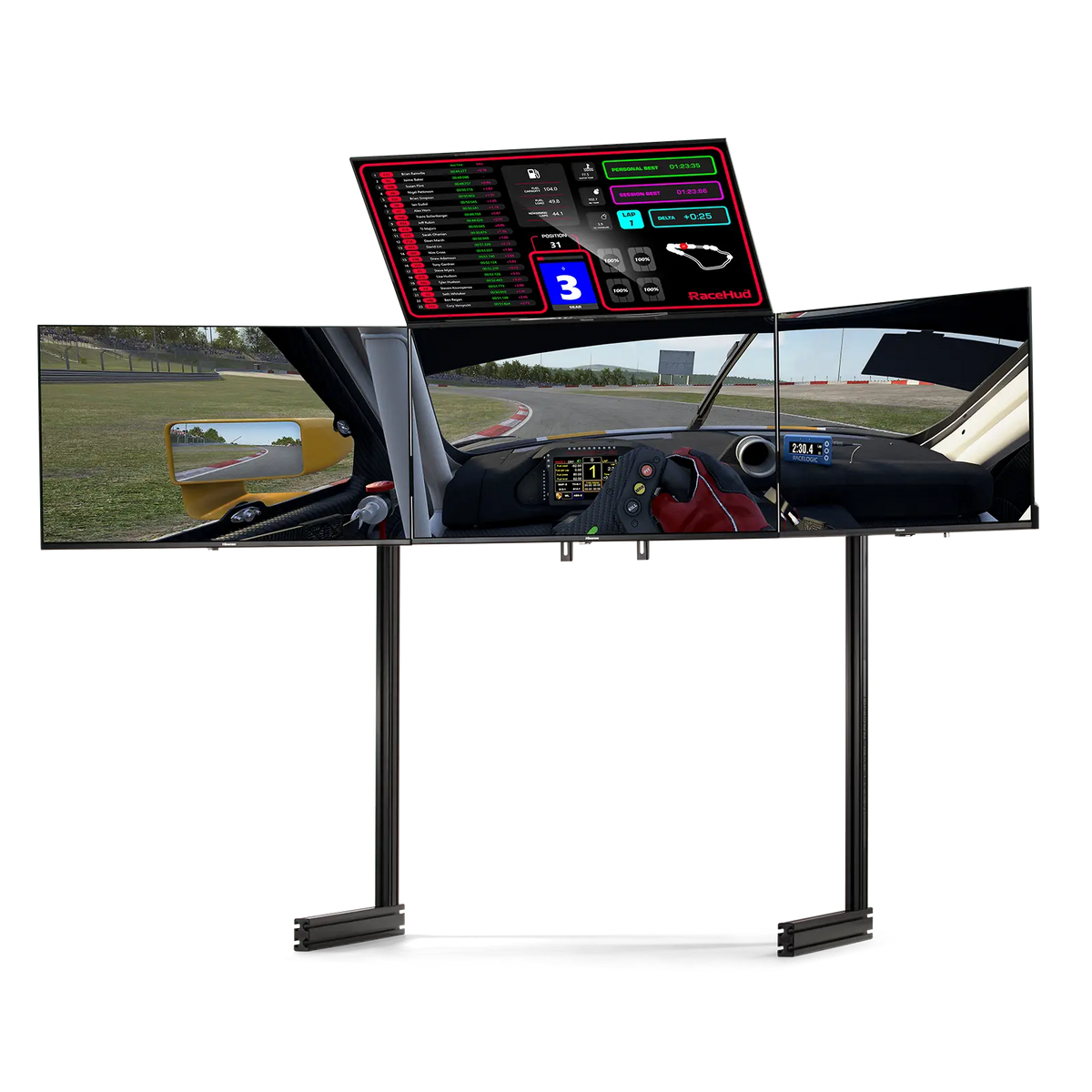

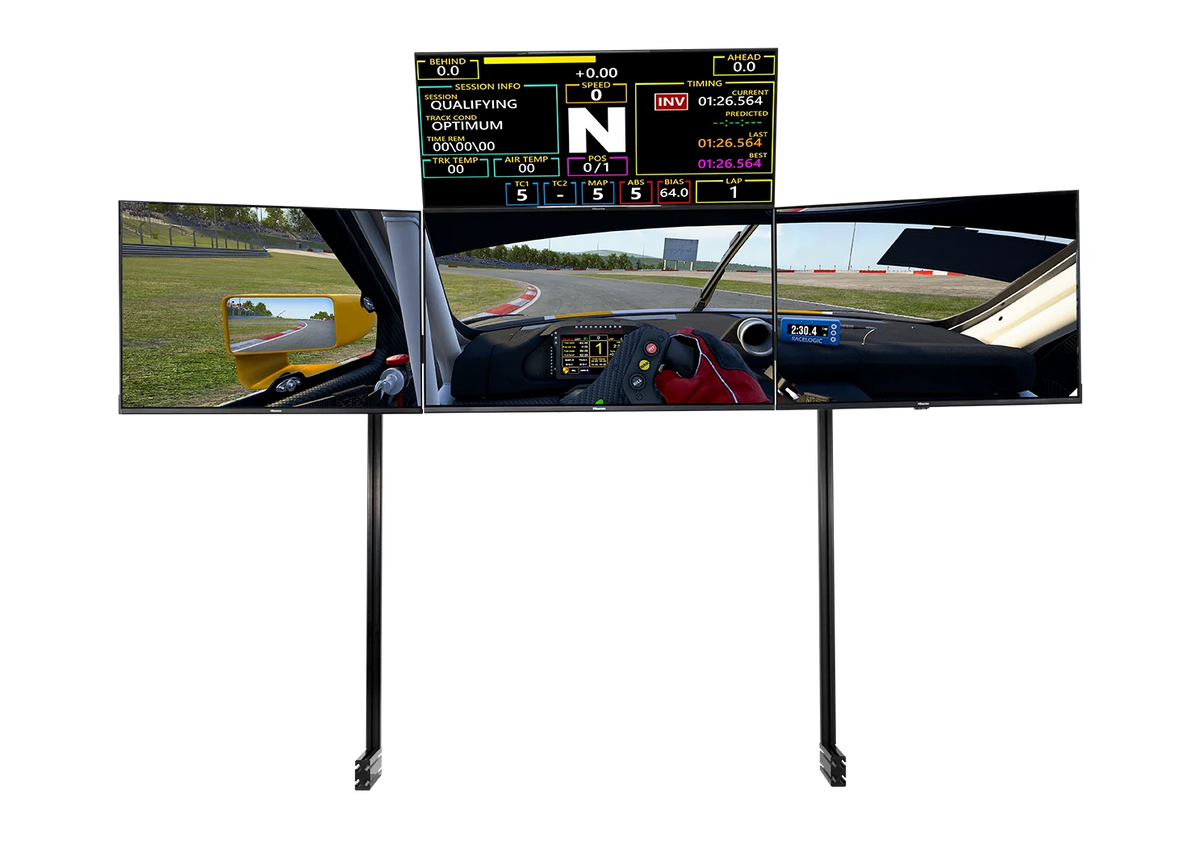

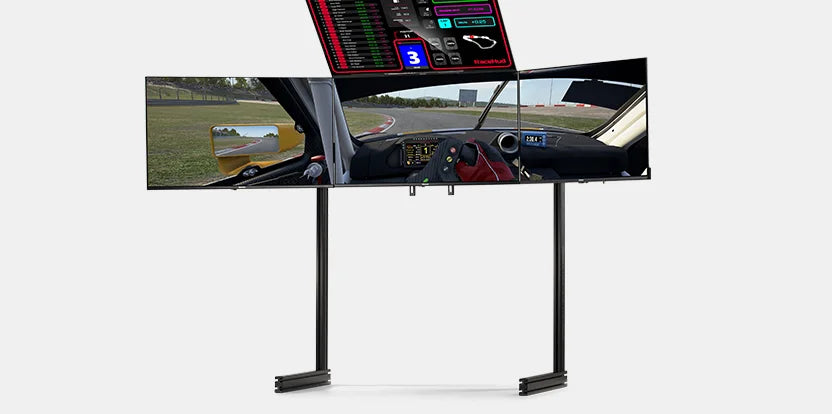

The Elite Freestanding Quad Monitor Stand, Black Edition, holds four 21” to 43” monitors: three around you and one overhead. It is a complete monitor mount for sim racing and flight sim setups, and it runs all four screens with no extra parts.

Why it matters

Three surround screens plus an overhead screen wrap the view around you, and each one can be adjusted. Because the stand is freestanding, you decide how far the screens sit from your seat.

The vertical uprights adjust in width, with post mount points from 720 to 1240mm apart. If you run a Next Level Racing Traction Plus platform or a wider cockpit, you can bring the screens in closer to your seated position and find the field of view you want. The same range lets it work with racing cockpits, flight cockpits and commercial setups.

Adjustment

• Height
• Width, from 720mm to 1240mm
• Angle
• Tilt

Build quality

The frame uses high-grade 6063 aluminum extrusion with a black anodized finish, plus powder-coated carbon steel components. Custom black electroplated hardware and cable management clips finish it off. It is strong enough for up to four screens from 21” to 43”.

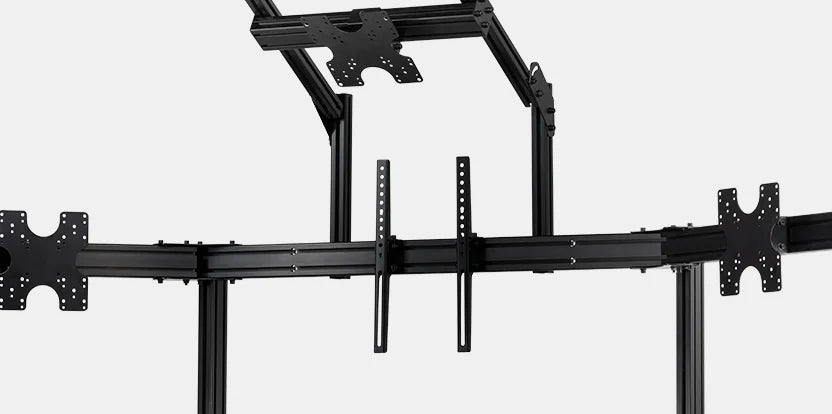

VESA mounting

Universal 3mm thick VESA plates are included. The three star-shaped mounts cover patterns from 75mm (H) x 75mm (L) up to 200mm (H) x 200mm (L):

• 200x200mm
• 100x200mm
• 200x100mm
• 150x150mm
• 100x100mm
• 75x75mm

There is also one set of upright VESA mounts with a much wider range, from 75mm (H) x 75mm (L) up to 800mm (H) x 400mm (L). Between the two, most monitor sizes and mounting standards are covered.

Key specs

Compatibility

• Works with all Next Level Racing cockpits and wheel stands
• The wide base adjustment lets it work with cockpits from any brand

In the box

• Aluminum extrusions
• Screen mounting hardware
• Next Level Racing cable management clips
• Next Level Racing mounting arms and brackets
• Next Level Racing custom end caps
• Spirit level
• 4X VESA plates (200x200mm, 100x200mm, 200x100mm, 150x150mm, 100x100mm, 75x75mm)
• Assembly hardware
• Digital assembly instructions and videos: bit.ly/nlr-instructions

Assembly

The two instruction booklets open as PDFs from their covers.

Good to know

This is a standalone stand. You do not need any other components to run a quad monitor setup.
