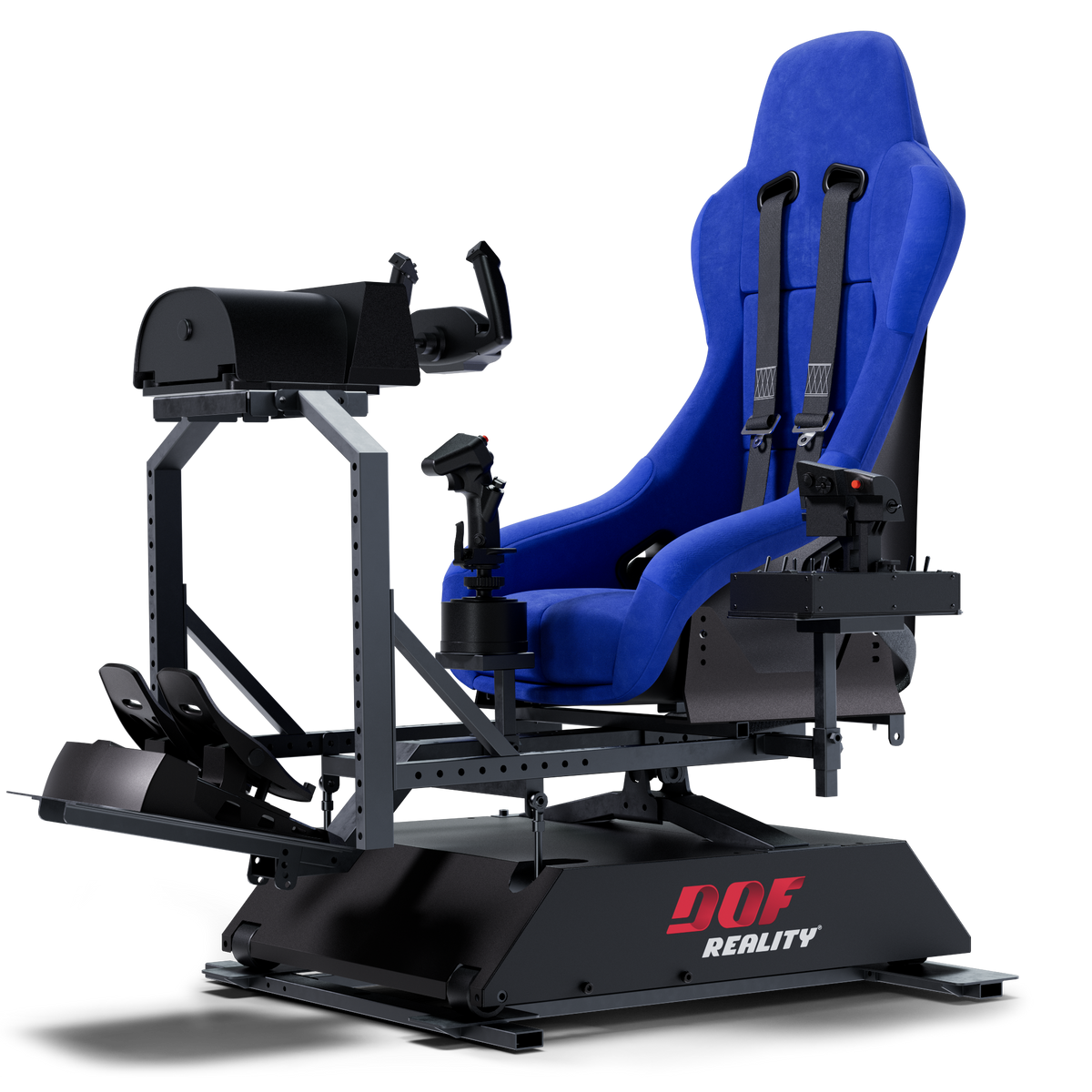

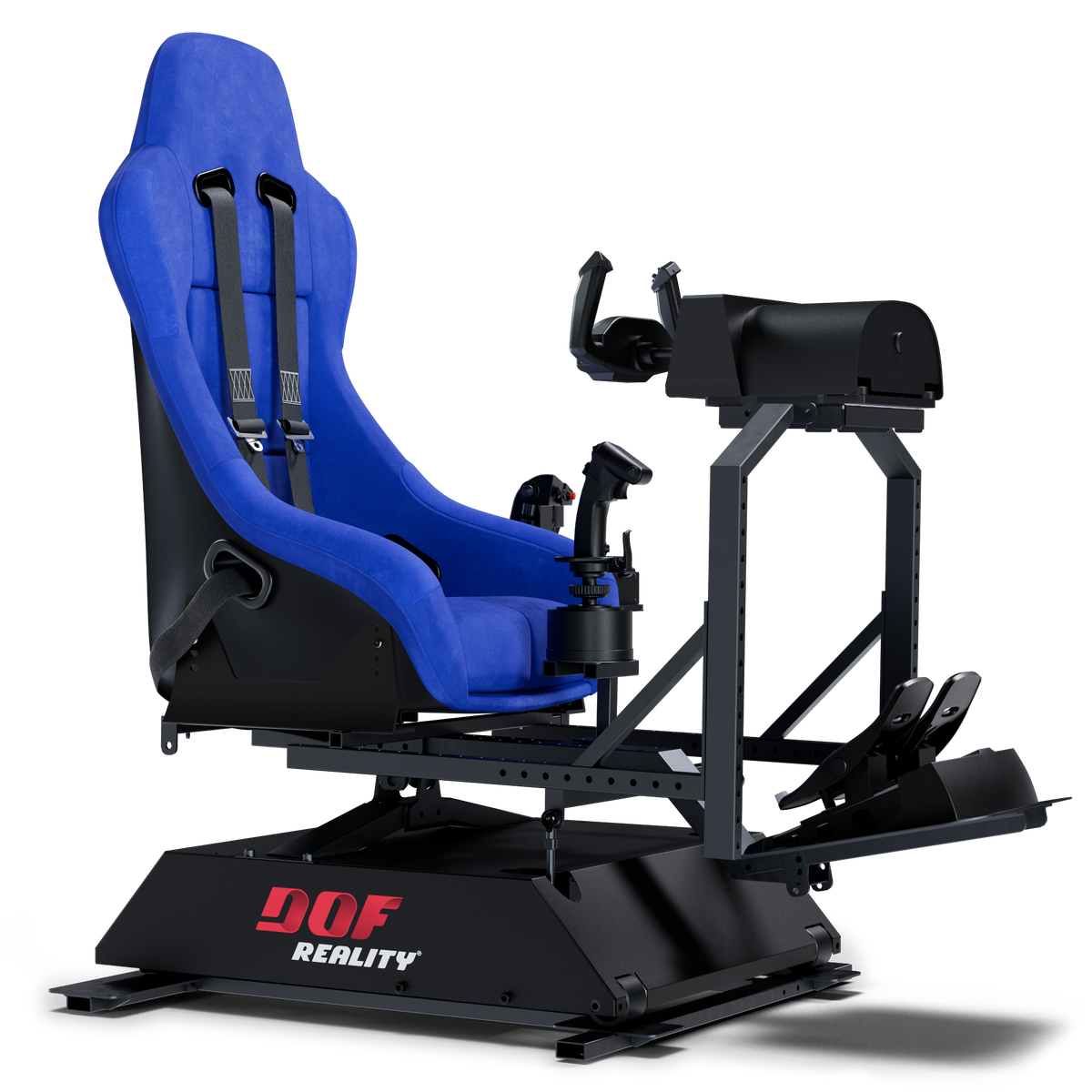

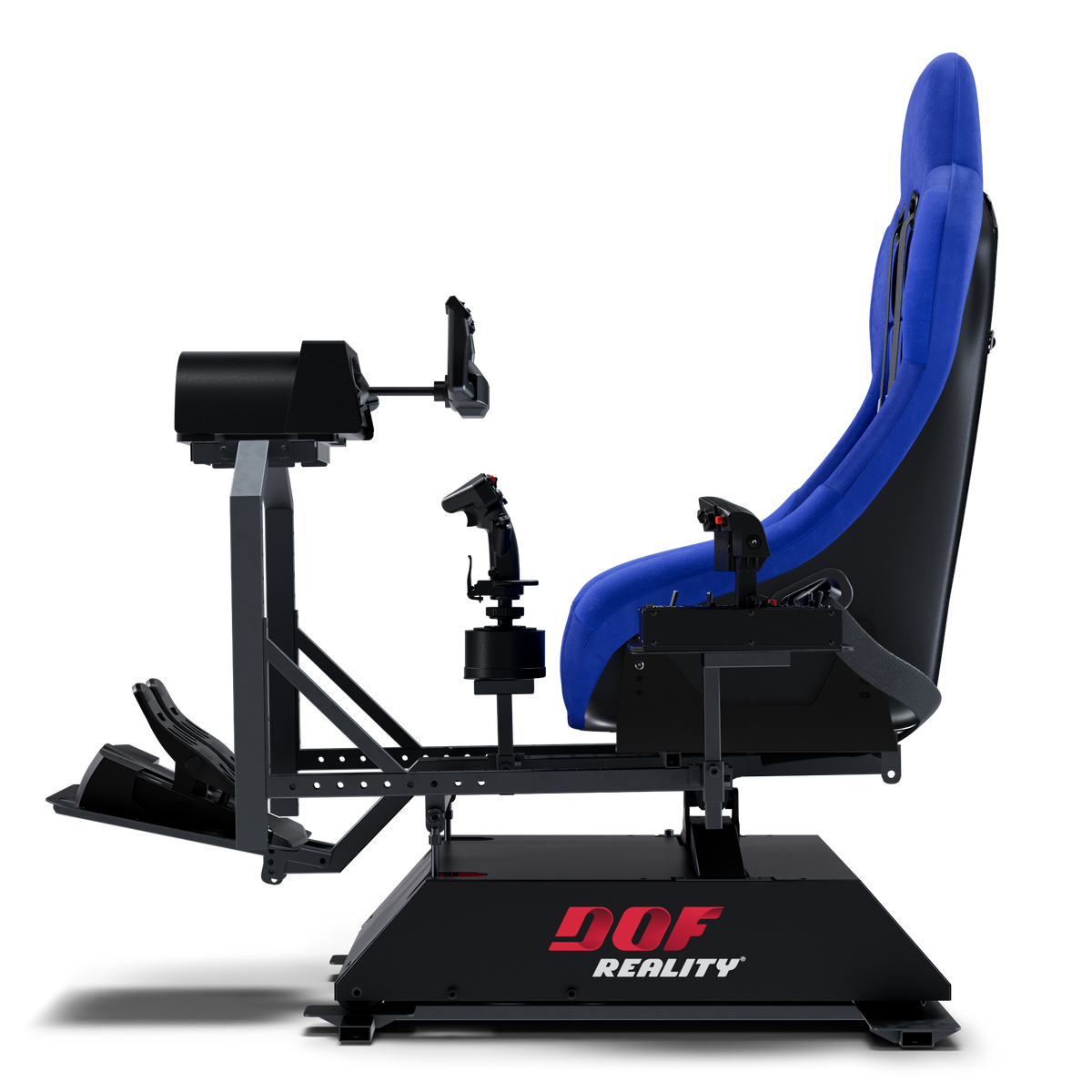

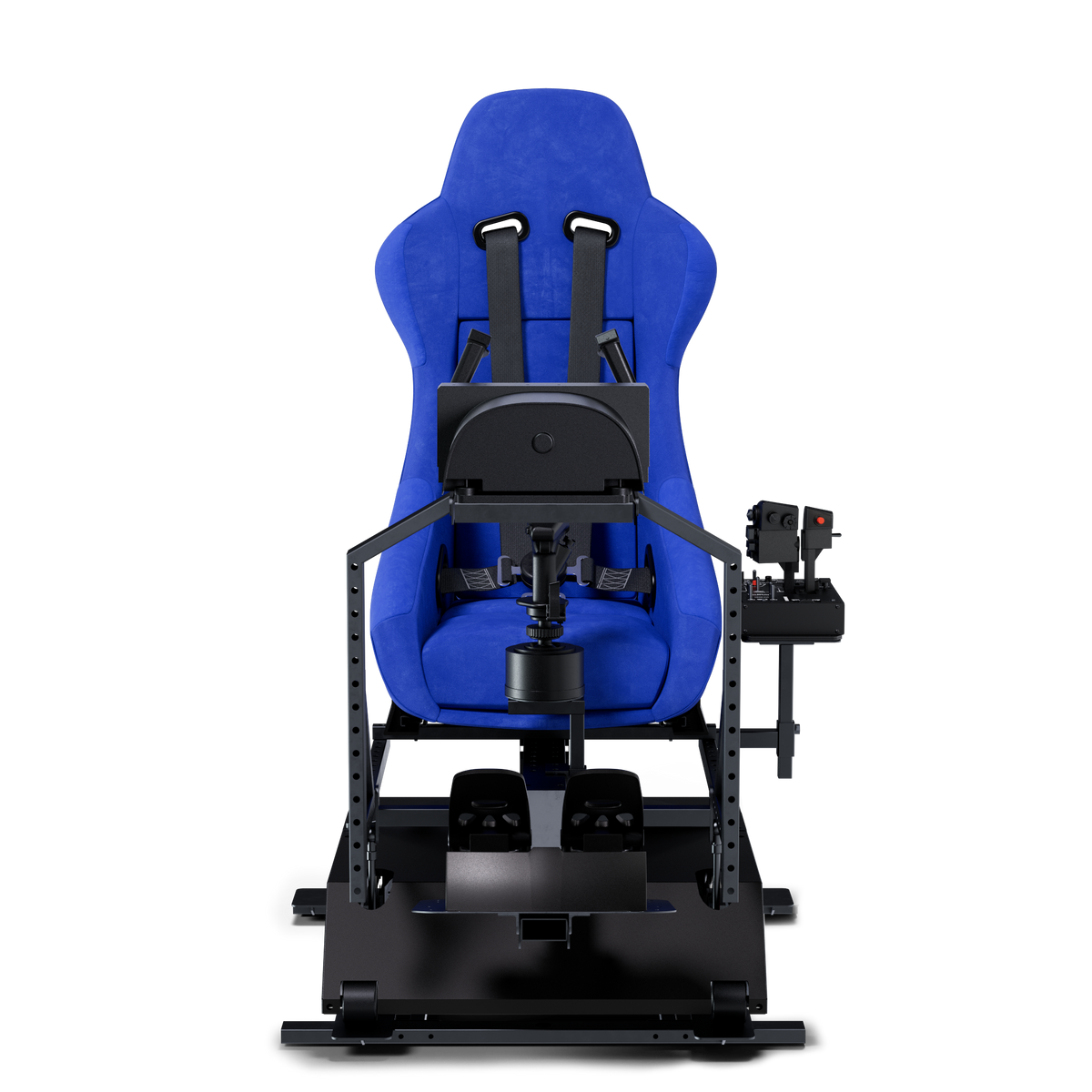

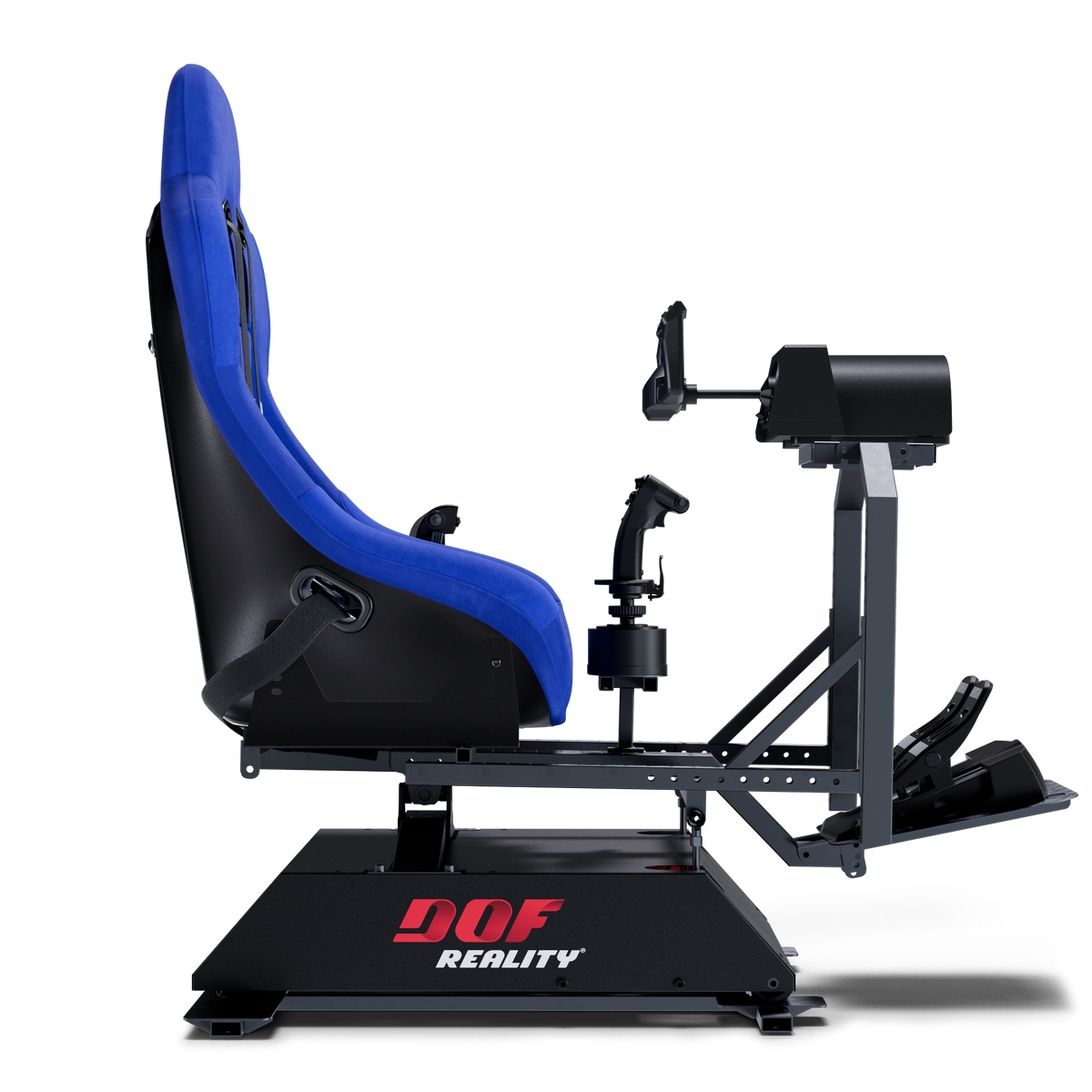

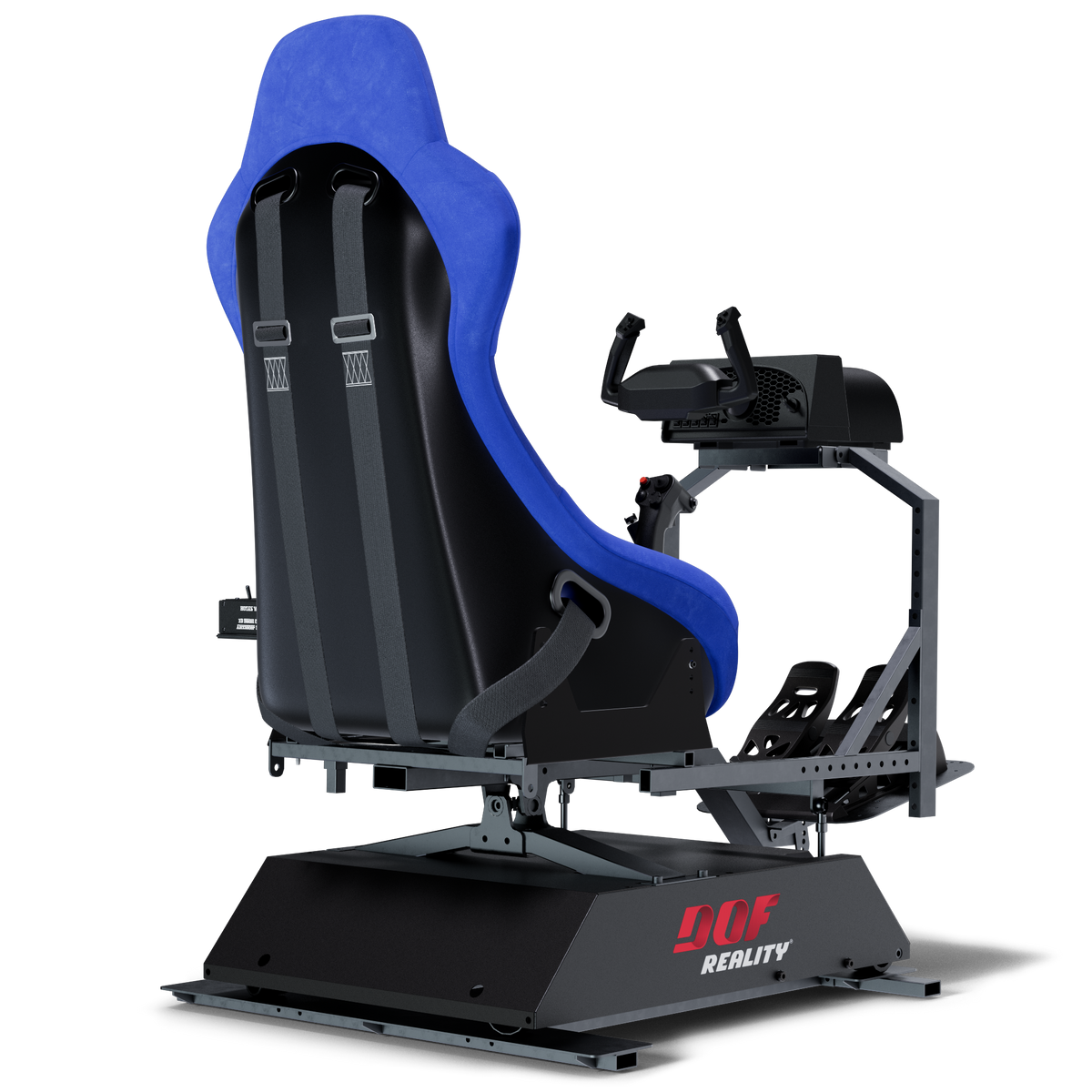

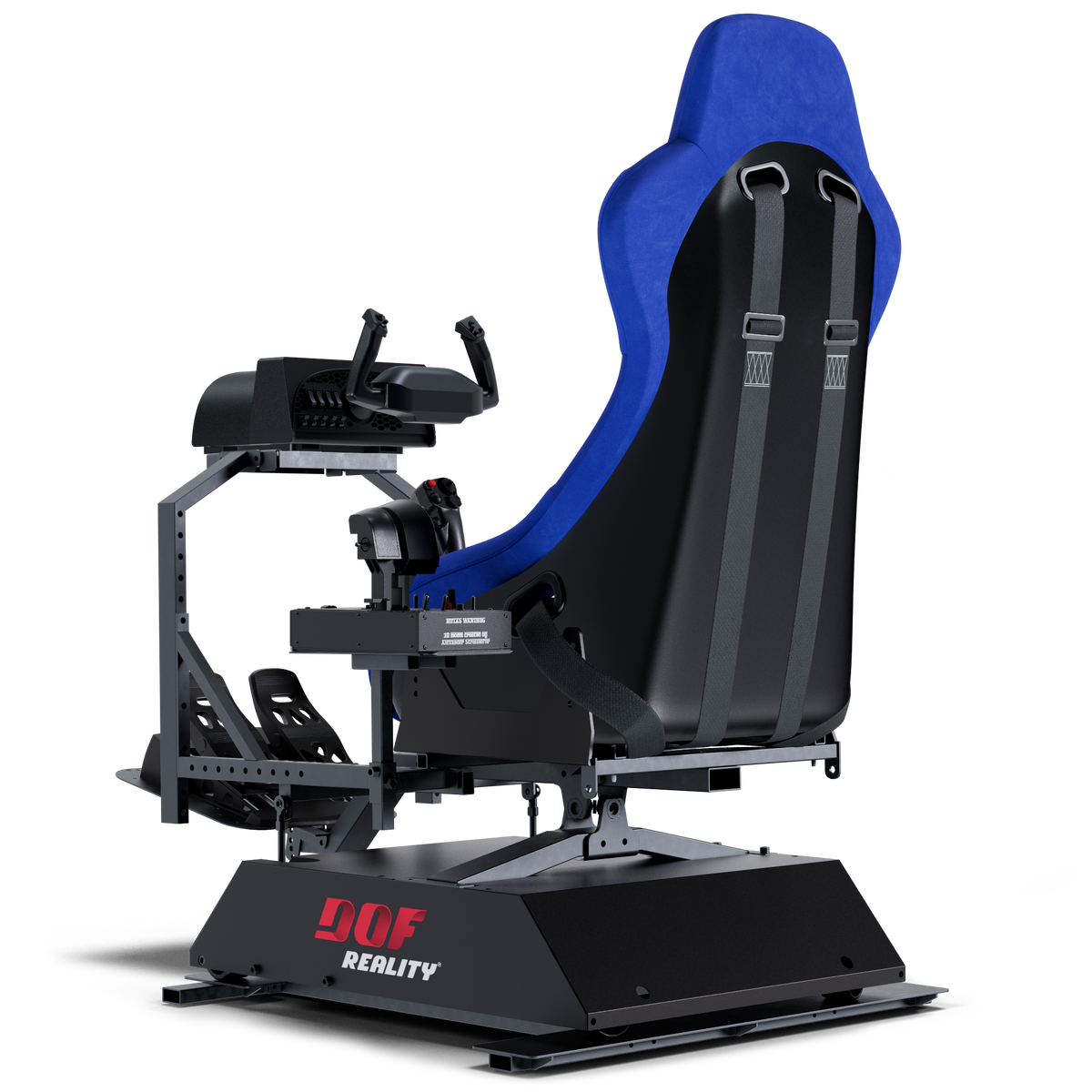

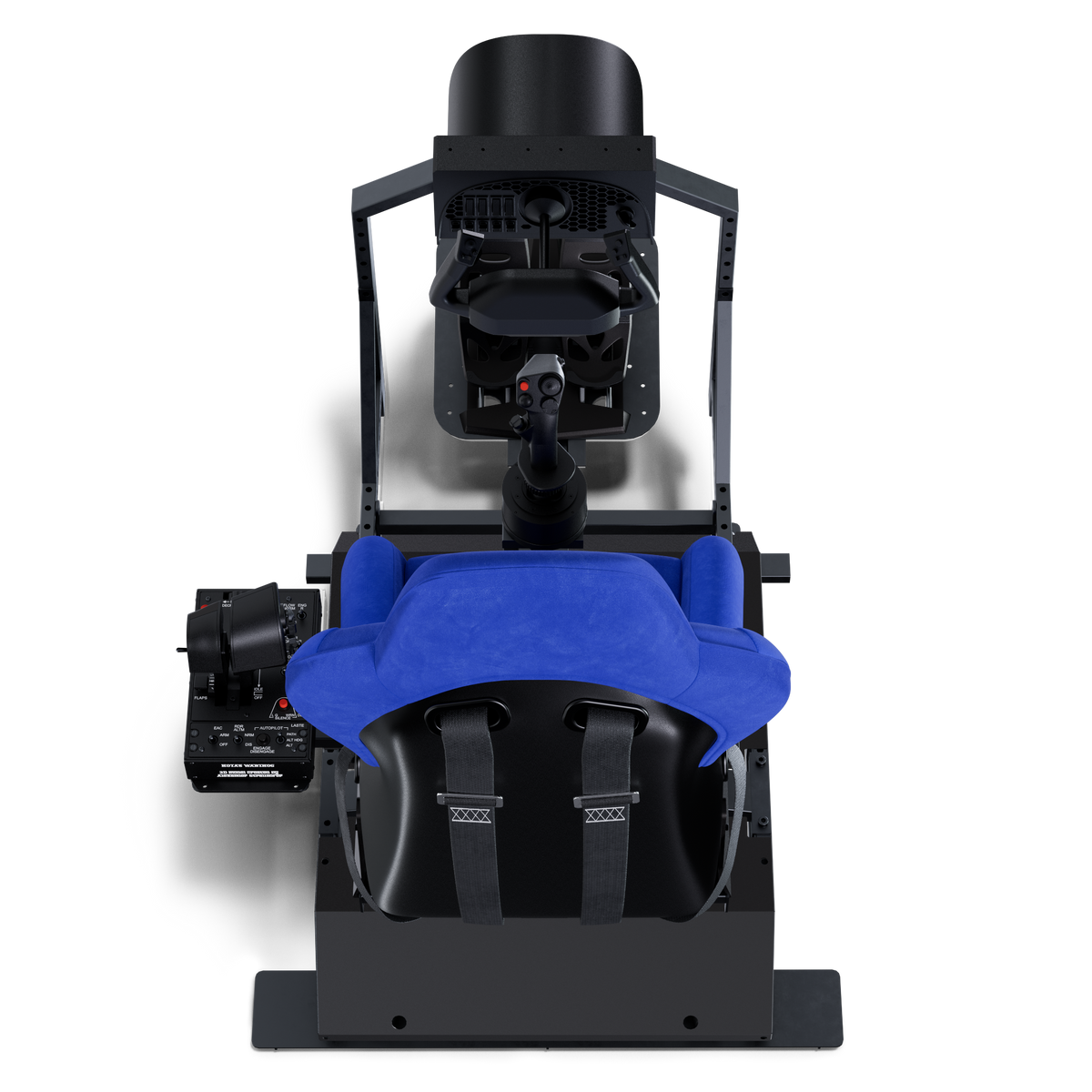

DOF Reality H3r 3-Axis Motion Platform (Flight / Universal)
Overview
The DOF Reality H3r is the flight and universal configuration of the H3 chassis. Three axes (Pitch, Roll, Yaw), but with the rig geometry, mount points, and orientation needed for stick-and-throttle flight or combined-use cockpits.
The Yaw axis on the H3r is what flight sim users feel most strongly: rudder input, weathervaning in crosswind, helicopter pedal turns, and adverse yaw on prop fighters all become physical sensations through the chassis. Pitch and roll handle climb, dive, bank, and bank reversal.
Built since 2014 by DOF Reality in Ukraine with commercial-grade European steel. The full platform moves as one piece. Stick, throttle, rudder pedals, and seat all travel together, so feedback transfers through your body the way it would in a real airframe.
Key Features
- True 3-axis full cockpit motion (Pitch, Roll, Yaw). Yaw is the defining flight axis: rudder, weathervaning, adverse yaw, helicopter pedal turns.
- Universal cockpit geometry. HOTAS mount points, rudder pedal rails, combined sim use out of the box.
- Same motion engine as the H3 racing build. 86 deg/sec across 20 degrees of motion at 0.7G transverse. 25 N/m torque per motor, 750W peak.
- SimRacingStudio license included. Full flight library plus 145+ racing and rally titles.
- Holds 150 kg of pilot weight on commercial-grade European steel.
- Klarna and Affirm financing available at checkout.
Specifications
| Spec | Value |
|---|---|
| DOF Count | 3 (Pitch, Roll, Yaw) |
| Range of Motion | 20 degrees |
| Speed | 86 deg/sec (50 cm/s) |
| Torque | 25 N/m |
| Acceleration | 0.7G transverse, 0.5G longitudinal |
| Power Consumption | 750W peak |
| Floor Footprint | 100 x 150 cm (3 x 5 ft) |
| Height | 60 cm (2 ft) |
| Max Pilot Weight | 150 kg / 330 lbs |
| Material | Commercial-grade European steel |
| Power Supply | 100 to 240V control unit, USB |
| Configuration | Flight / Universal (HOTAS mount points, universal rig) |
| UPC | 804043446869 |
Compatibility
Platforms: PC native via USB. VR-ready.
Flight sim titles supported via SimRacingStudio: Microsoft Flight Simulator 2024, DCS World, X-Plane 12, IL-2 Sturmovik series, Falcon BMS, War Thunder, Rise of Flight, plus helicopter sims and the full racing/rally library.
HOTAS and pedals: works with all major HOTAS systems, plus rudder pedals from MFG Crosswind, Thrustmaster TPR, and Logitech. Standard mounting plates accept 80/20 rig hardware.
What's in the Box
- H3r platform with integrated motors
- Universal flight rig with HOTAS mount points
- Mounts for seat or sliding rails
- 100 to 240V control unit with USB cable
- SimRacingStudio software license
- Quick assembly tool kit
- 1-year manufacturer warranty
Not included: seat, VR headset, HOTAS, rudder pedals, monitor.
Shipping and Delivery
DOF Reality consolidates orders into a batch every 2 weeks. Total delivery time is 2 to 4 weeks from order placement to your door, via FedEx (North America) or DHL (rest of world). Two-box shipment: Box 1 is 33 kg / 94 x 38 x 28 cm, Box 2 is 38 kg / 80 x 60 x 25 cm.
Customer pays import duties on delivery. Duty varies by destination; typical US deliveries see import duties billed by the carrier (FedEx in North America, DHL elsewhere) on delivery. Sim Drive does not collect this — it is a separate transaction with the carrier.
Warranty and support. Full 1-year manufacturer warranty included. Sim Drive Performance is your first point of contact for product support and coordinates directly with DOF Reality on warranty claims and escalated technical issues. Extended +1 year warranty available as an upgrade option on request.
Overview
The DOF Reality H3r is the flight and universal configuration of the H3 chassis. Three axes (Pitch, Roll, Yaw), but with the rig geometry, mount points, and orientation needed for stick-and-throttle flight or combined-use cockpits.
The Yaw axis on the H3r is what flight sim users feel most strongly: rudder input, weathervaning in crosswind, helicopter pedal turns, and adverse yaw on prop fighters all become physical sensations through the chassis. Pitch and roll handle climb, dive, bank, and bank reversal.
Built since 2014 by DOF Reality in Ukraine with commercial-grade European steel. The full platform moves as one piece. Stick, throttle, rudder pedals, and seat all travel together, so feedback transfers through your body the way it would in a real airframe.
Key Features
- True 3-axis full cockpit motion (Pitch, Roll, Yaw). Yaw is the defining flight axis: rudder, weathervaning, adverse yaw, helicopter pedal turns.
- Universal cockpit geometry. HOTAS mount points, rudder pedal rails, combined sim use out of the box.
- Same motion engine as the H3 racing build. 86 deg/sec across 20 degrees of motion at 0.7G transverse. 25 N/m torque per motor, 750W peak.
- SimRacingStudio license included. Full flight library plus 145+ racing and rally titles.
- Holds 150 kg of pilot weight on commercial-grade European steel.
- Klarna and Affirm financing available at checkout.
Specifications
| Spec | Value |
|---|---|
| DOF Count | 3 (Pitch, Roll, Yaw) |
| Range of Motion | 20 degrees |
| Speed | 86 deg/sec (50 cm/s) |
| Torque | 25 N/m |
| Acceleration | 0.7G transverse, 0.5G longitudinal |
| Power Consumption | 750W peak |
| Floor Footprint | 100 x 150 cm (3 x 5 ft) |
| Height | 60 cm (2 ft) |
| Max Pilot Weight | 150 kg / 330 lbs |
| Material | Commercial-grade European steel |
| Power Supply | 100 to 240V control unit, USB |
| Configuration | Flight / Universal (HOTAS mount points, universal rig) |
| UPC | 804043446869 |
Compatibility
Platforms: PC native via USB. VR-ready.
Flight sim titles supported via SimRacingStudio: Microsoft Flight Simulator 2024, DCS World, X-Plane 12, IL-2 Sturmovik series, Falcon BMS, War Thunder, Rise of Flight, plus helicopter sims and the full racing/rally library.
HOTAS and pedals: works with all major HOTAS systems, plus rudder pedals from MFG Crosswind, Thrustmaster TPR, and Logitech. Standard mounting plates accept 80/20 rig hardware.
What's in the Box
- H3r platform with integrated motors
- Universal flight rig with HOTAS mount points
- Mounts for seat or sliding rails
- 100 to 240V control unit with USB cable
- SimRacingStudio software license
- Quick assembly tool kit
- 1-year manufacturer warranty
Not included: seat, VR headset, HOTAS, rudder pedals, monitor.
Shipping and Delivery
DOF Reality consolidates orders into a batch every 2 weeks. Total delivery time is 2 to 4 weeks from order placement to your door, via FedEx (North America) or DHL (rest of world). Two-box shipment: Box 1 is 33 kg / 94 x 38 x 28 cm, Box 2 is 38 kg / 80 x 60 x 25 cm.
Customer pays import duties on delivery. Duty varies by destination; typical US deliveries see import duties billed by the carrier (FedEx in North America, DHL elsewhere) on delivery. Sim Drive does not collect this — it is a separate transaction with the carrier.
Warranty and support. Full 1-year manufacturer warranty included. Sim Drive Performance is your first point of contact for product support and coordinates directly with DOF Reality on warranty claims and escalated technical issues. Extended +1 year warranty available as an upgrade option on request.
