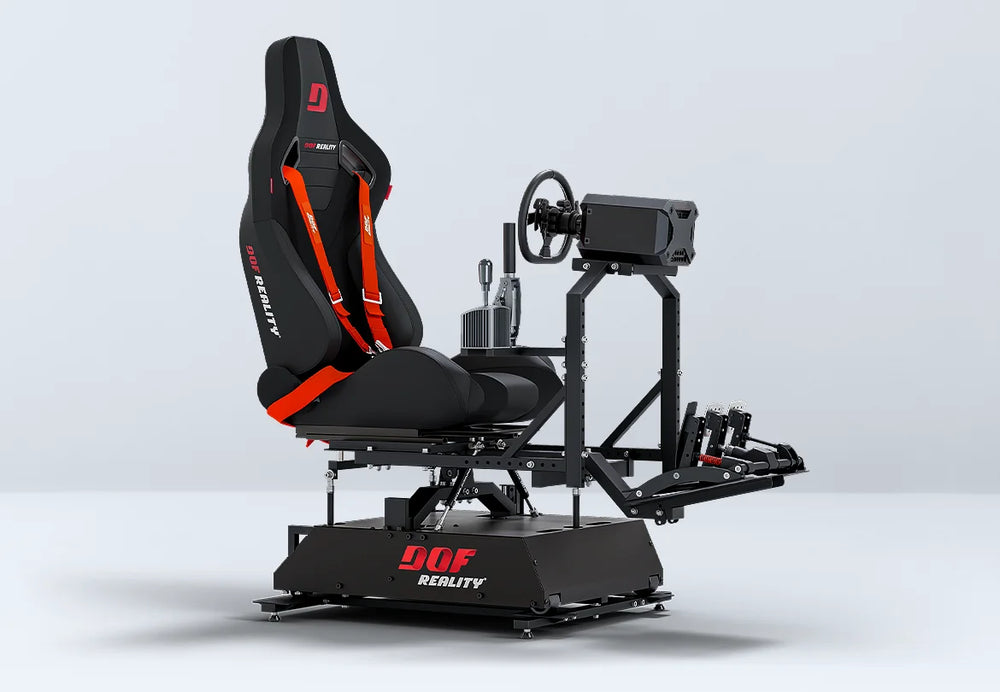

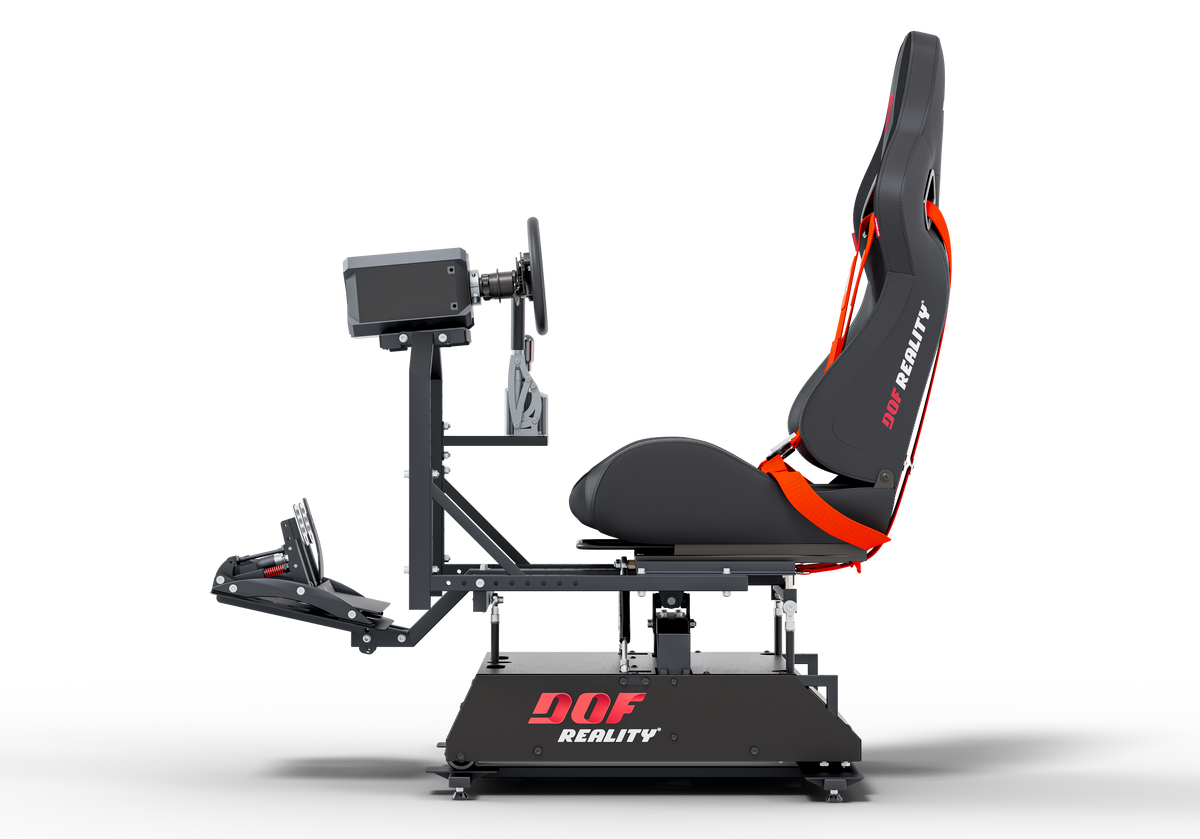

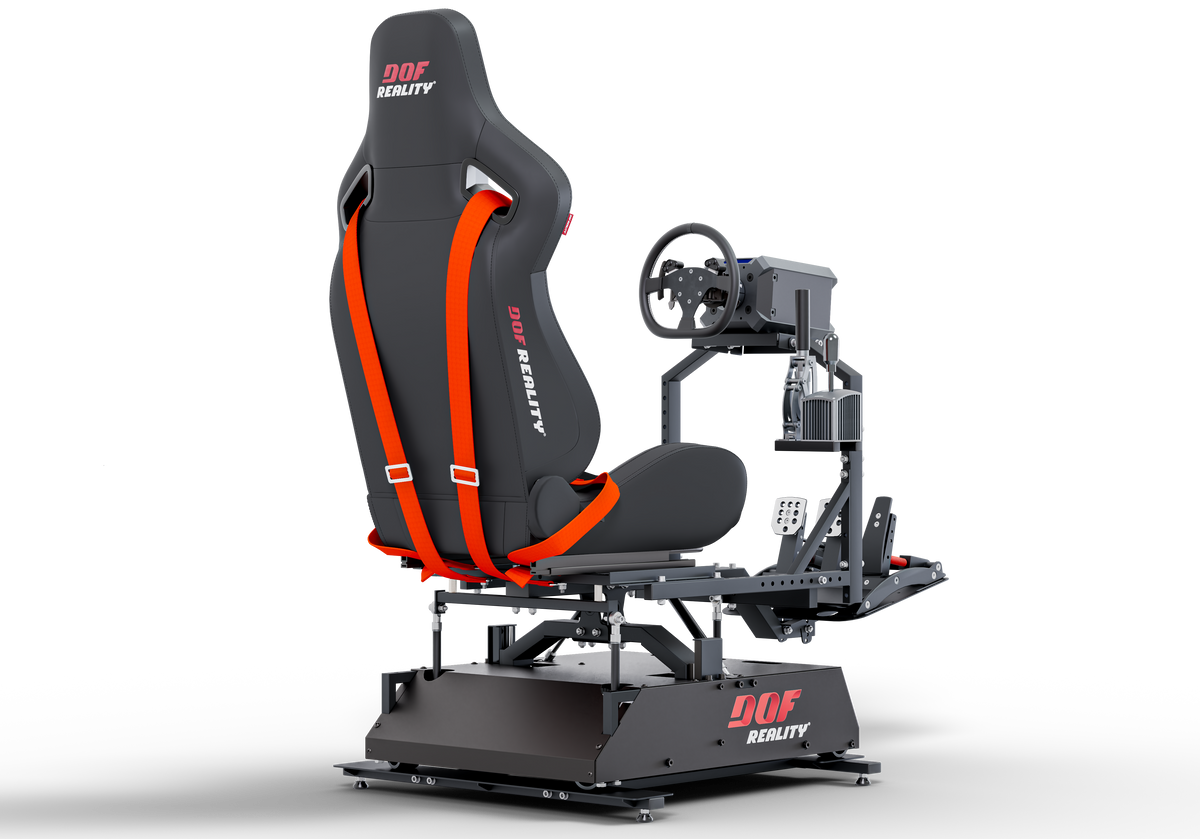

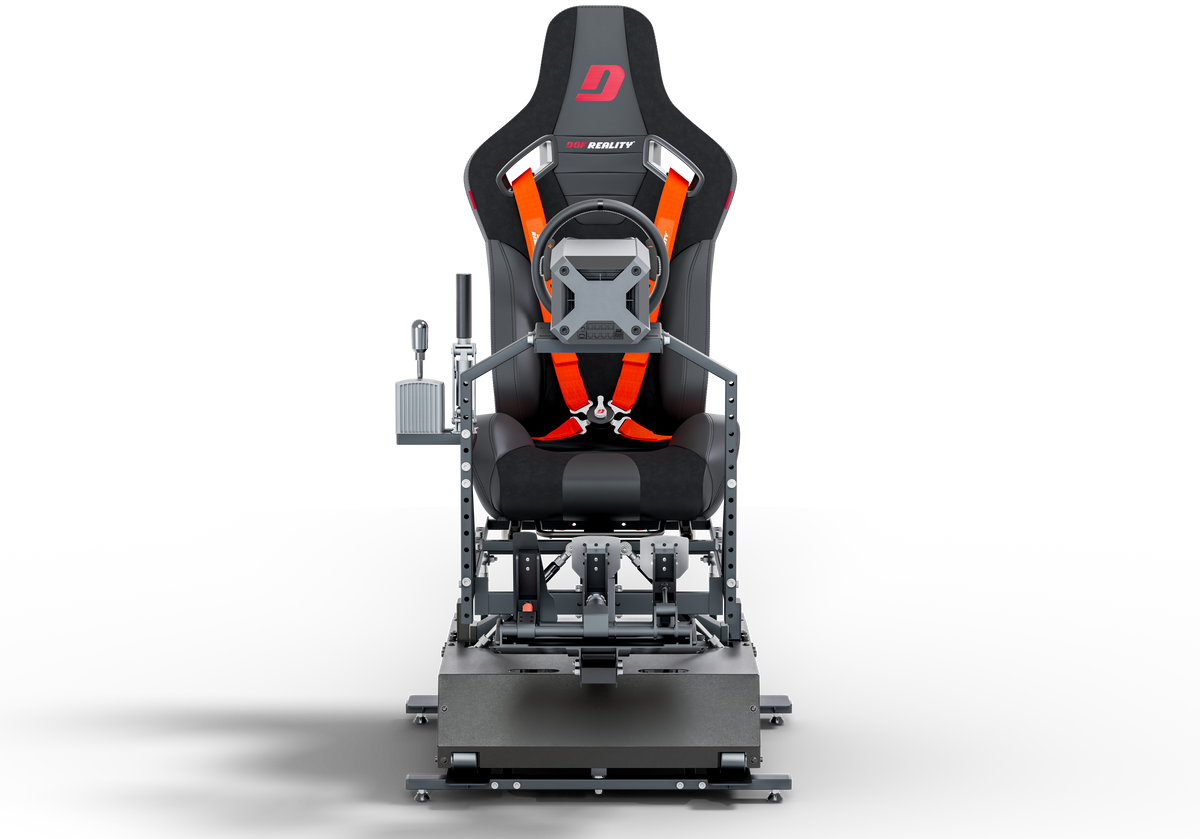

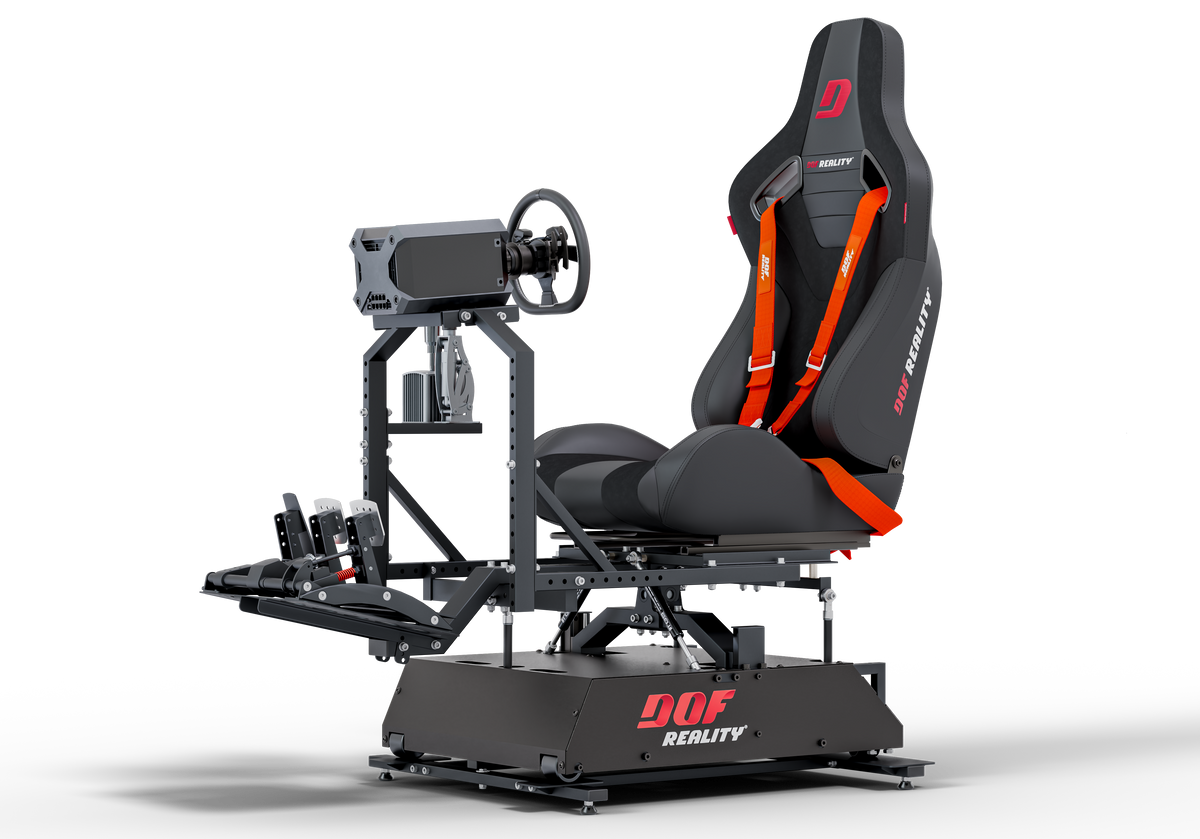

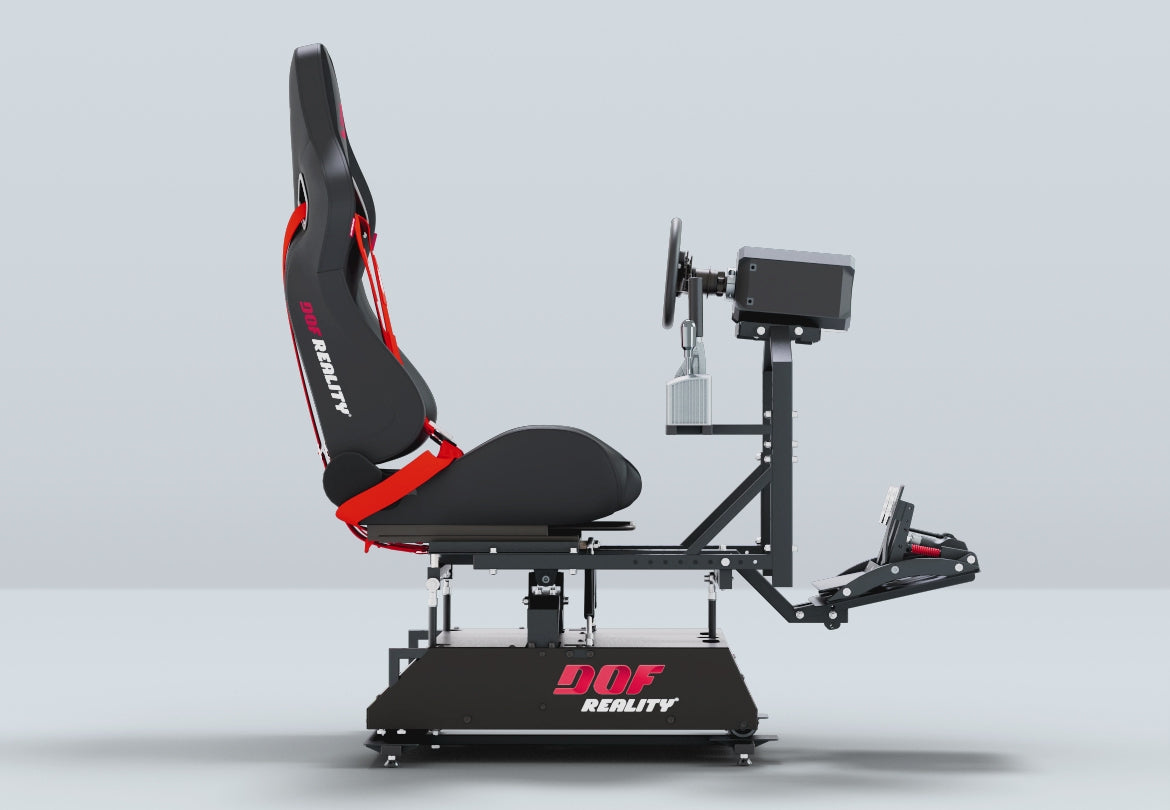

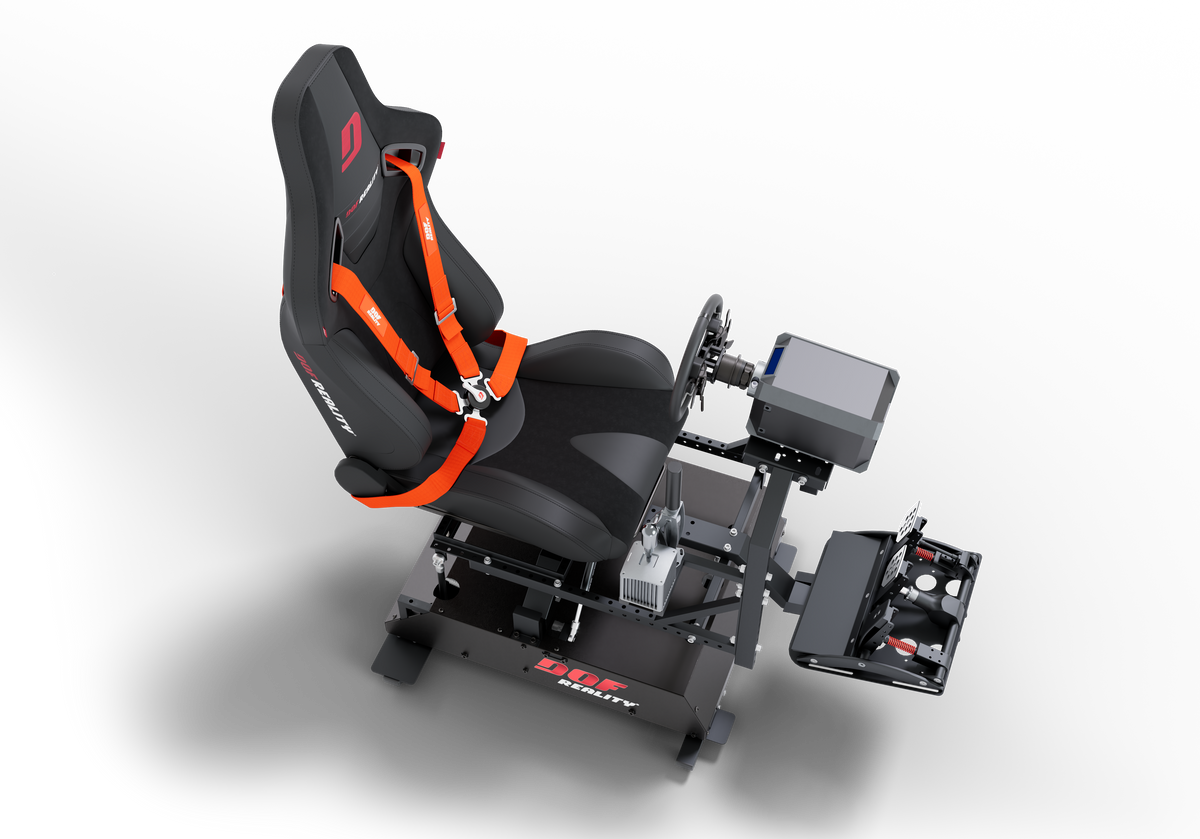

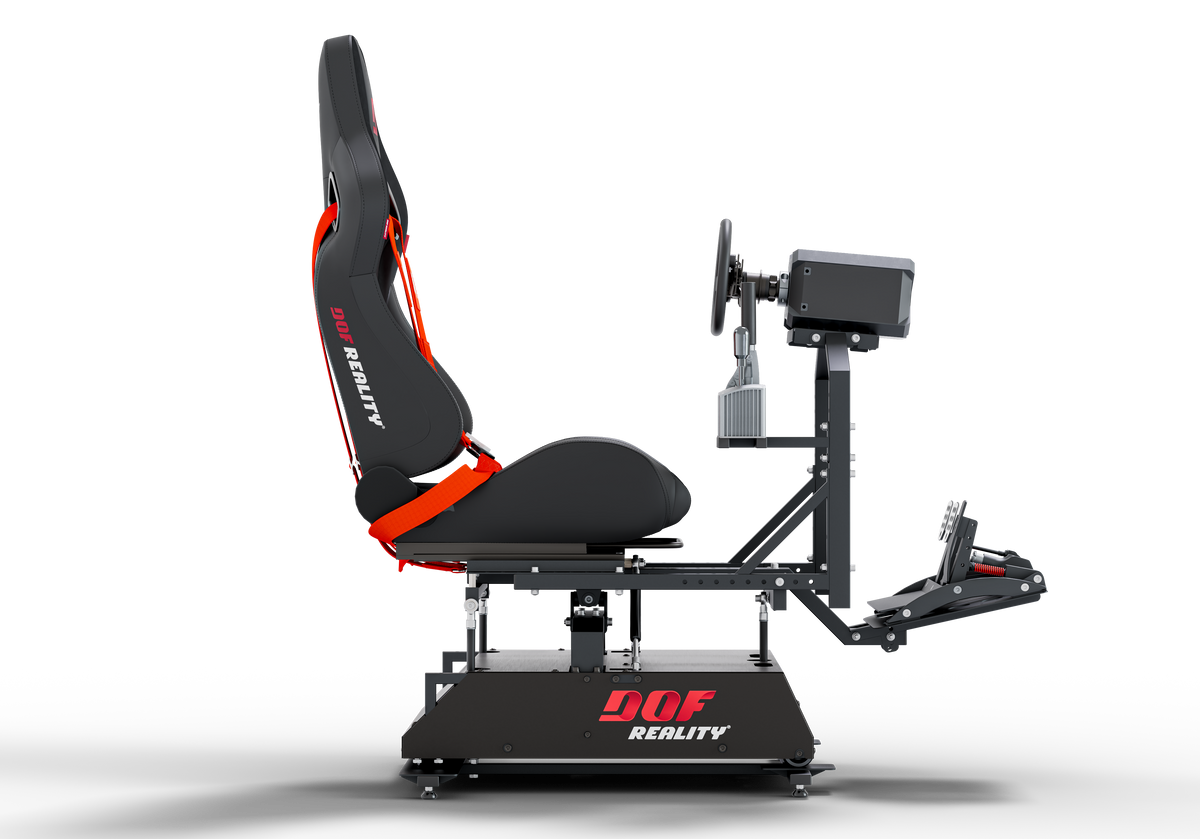

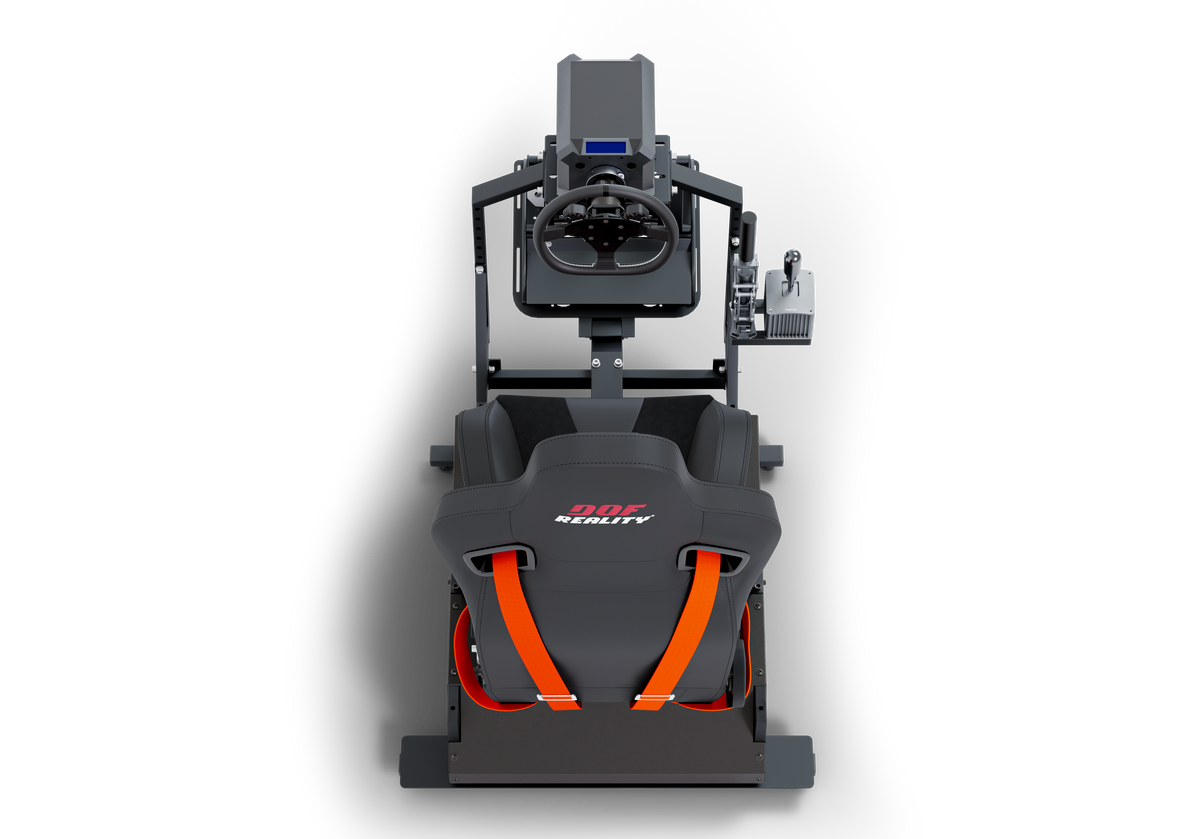

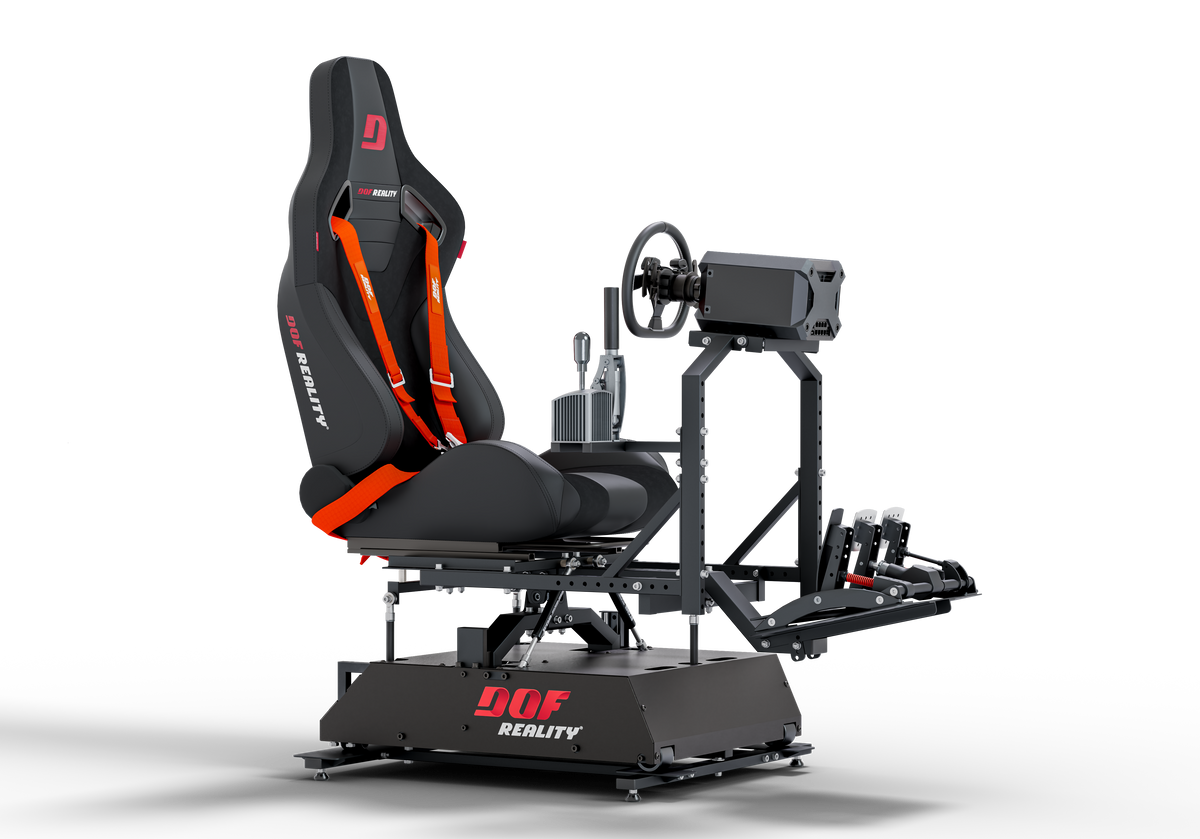

DOF Reality H4 4-Axis Motion Platform with Heave
Overview
The DOF Reality H4 closes a gap that no other home motion platform addresses: real vertical motion. While 3DOF rigs deliver pitch, roll, and yaw, only the H4 adds Heave. That fourth axis turns curbs, kerbs, road texture, and elevation changes into physical sensation rather than sound effects.
Built since 2014 by DOF Reality in Ukraine, the H4 uses commercial-grade European steel and integrated power drive motors with the Smooth Force Unit (SFU) gearing. The full platform moves as one piece. Wheel, pedals, seat, and monitor all travel together, so force feedback transfers through the chassis the way it would in a real car.
The H4 is the hardware step between the H3 (3-axis) and the H6 (6-axis flagship). If you want pitch, roll, yaw, and the visceral hit of vertical force without committing to the larger 6DOF footprint, this is the build.
Key Features
- True 4-axis motion (Pitch, Roll, Yaw, Heave). Vertical g-forces are the differentiator vs every 3DOF platform on the market.
- Full cockpit motion. Wheel, pedals, and seat move together. Feedback hits through the chassis, not just the rim.
- Holds up to 150 kg of pilot plus rig weight on commercial-grade European steel.
- SimRacingStudio license included. Telemetry-driven feedback for racing, rally, and flight sims.
- Klarna and Affirm financing available at checkout.
Specifications
| Spec | Value |
|---|---|
| DOF Count | 4 (Pitch, Roll, Yaw, Heave) |
| Range of Motion | 20° |
| Speed | 50 cm/s (86°/s) |
| Torque | 25 N/m |
| Acceleration | 0.7G transverse / 0.5G longitudinal |
| Power Consumption | 750W peak |
| Floor Footprint | 100 × 150 cm (3 × 5 ft), 60 cm height |
| Assembled Dimensions | 79 x 87 x 123 cm (31 x 34 x 48 in) — W x D x H |
| Height | 60 cm (2 ft) |
| Max Pilot Weight | 330 lbs / 150 kg |
| Material | Commercial-grade European steel |
| Power Supply | 100 to 240V control unit, USB |
| UPC | 804043447040 |
Compatibility
Platforms: PC native via USB. Console motion (PlayStation, Xbox) requires the MagicBox accessory (sold separately) for select titles. VR-ready.
Sim titles supported via SimRacingStudio:
- Sim racing: iRacing, Assetto Corsa, Assetto Corsa Competizione, Automobilista 1 and 2, F1 series, Forza Horizon 4 and 5, Forza Motorsport, Gran Turismo 7 and Sport, Project CARS series, Wreckfest, BeamNG.drive, rFactor 2, GRID series.
- Rally and drift: Dirt Rally 2.0, EA Sports WRC, Assetto Corsa Rally.
- Flight (same hardware, different SimRacingStudio profile): Microsoft Flight Simulator 2024, DCS, X-Plane 12.
Total title count: 145+ (DOF Reality publishes this site-wide). SimRacingStudio library is shared across the H-series.
Wheels and pedals: works with all major direct drive wheelbases from major DD wheelbase manufacturers. Standard mounting plates accept 80/20 rig hardware.
What's in the Box
- H4 platform with integrated motors
- Rigid metal rig configurable for normal and F1 driving positions
- Mounts for seat or sliding rails
- 100 to 240V control unit with USB cable
- SimRacingStudio software license
- Quick assembly tool kit
- 1-year manufacturer warranty
Not included: seat, VR headset, wheelbase, pedals, monitor.
Shipping and Delivery
DOF Reality consolidates orders into a batch every 2 weeks. Total delivery time is 2 to 4 weeks from order placement to your door, via FedEx (North America) or DHL (rest of world). Two-box shipment (verified): Box 1 is 40 kg / 94 x 38 x 28 cm, Box 2 is 60 kg / 80 x 60 x 30 cm.
Customer pays import duties on delivery. Duty varies by destination; typical US deliveries see import duties billed by the carrier (FedEx in North America, DHL elsewhere) on delivery. Sim Drive does not collect this — it is a separate transaction with the carrier.
Warranty and support. Full 1-year manufacturer warranty included. Sim Drive Performance is your first point of contact for product support and coordinates directly with DOF Reality on warranty claims and escalated technical issues. Extended +1 year warranty available as an upgrade option on request.
