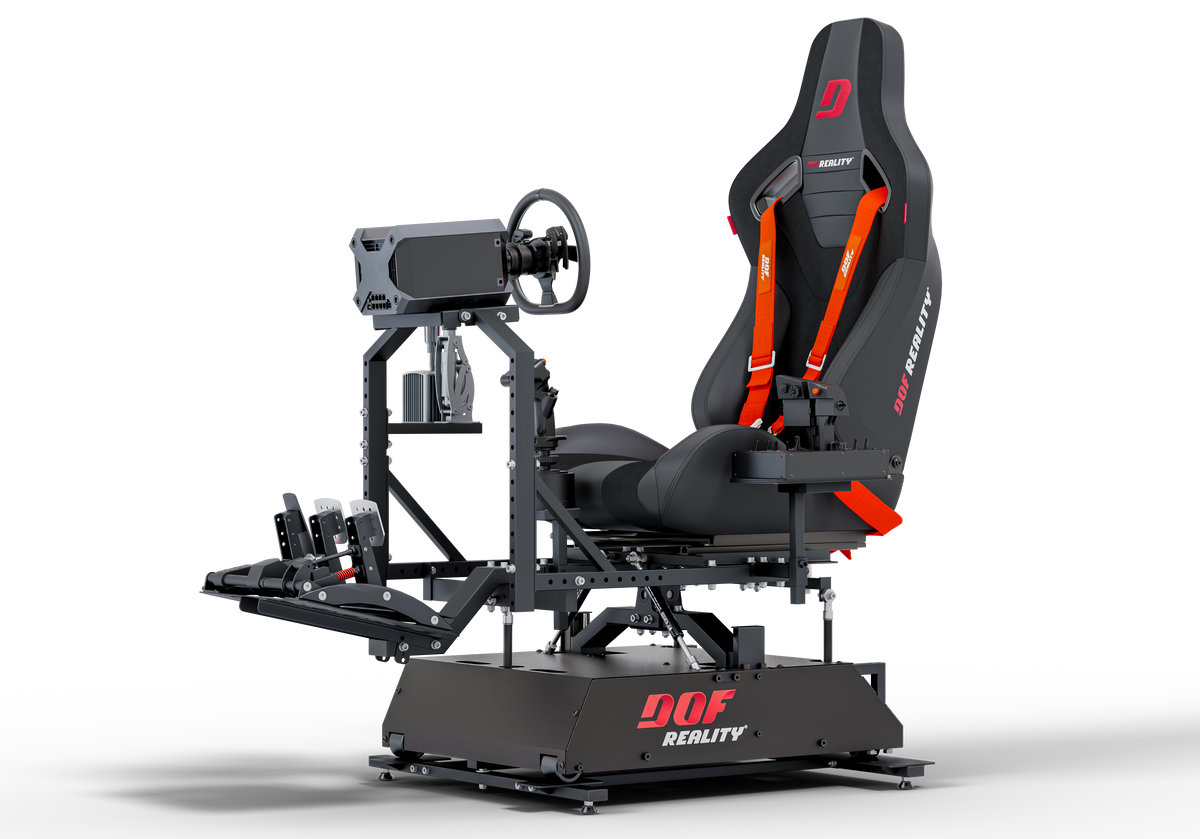

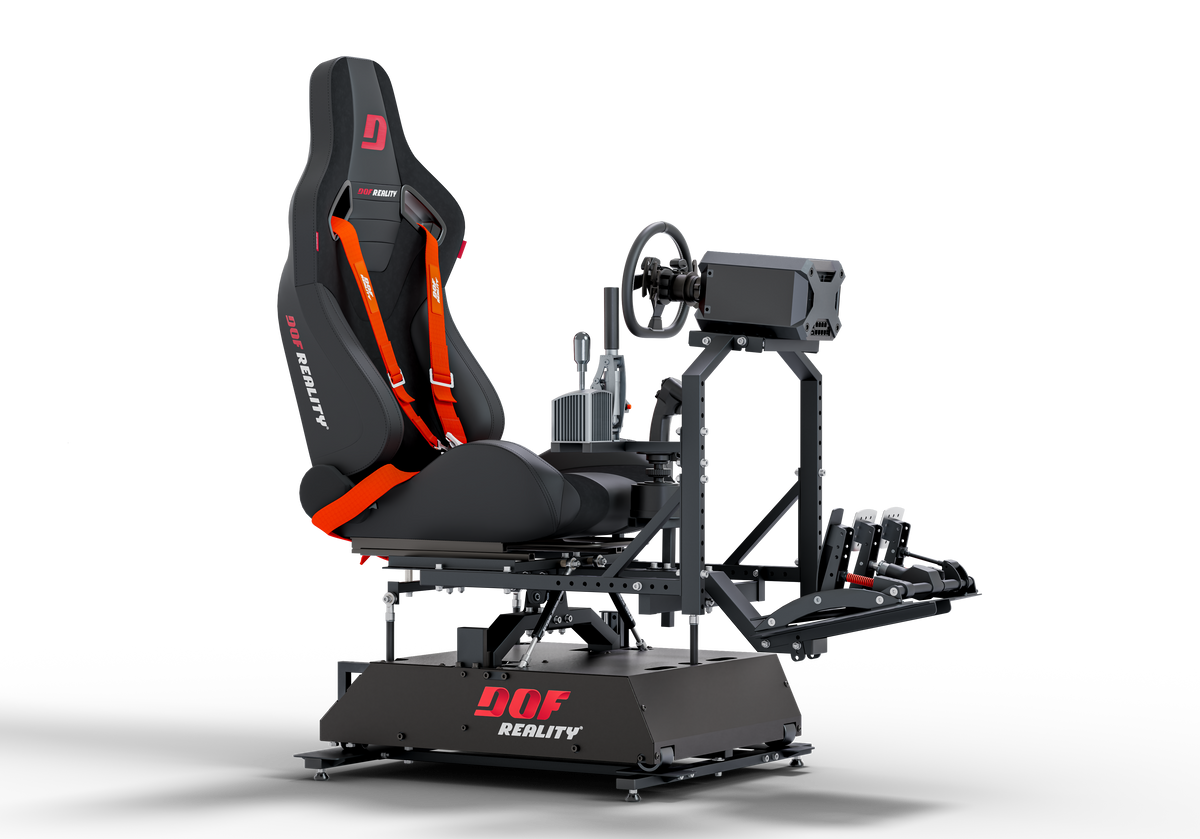

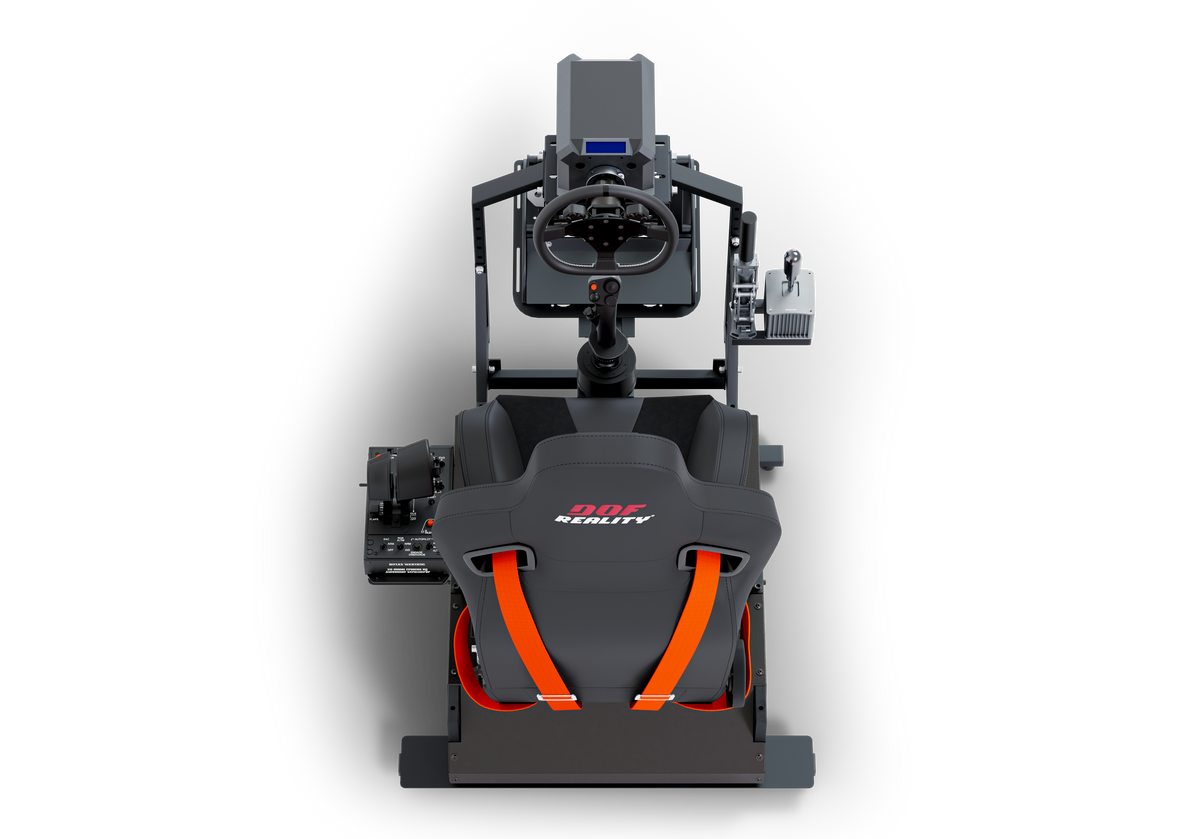

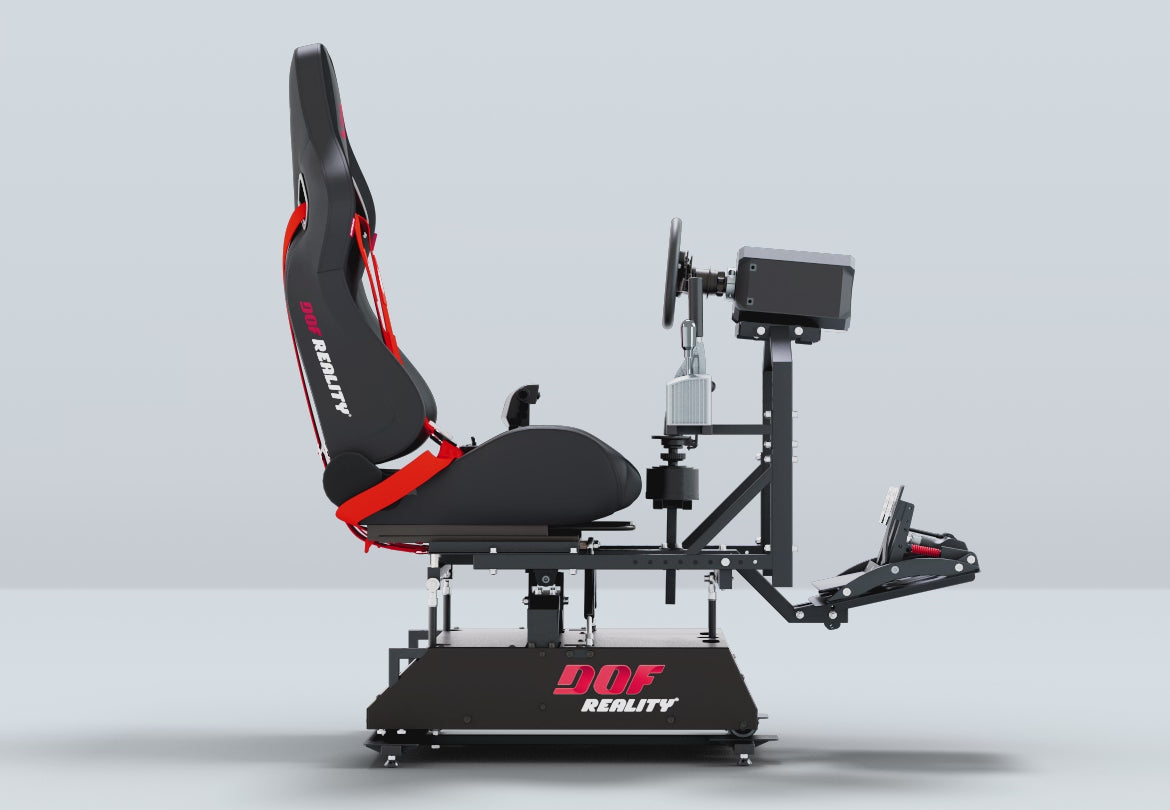

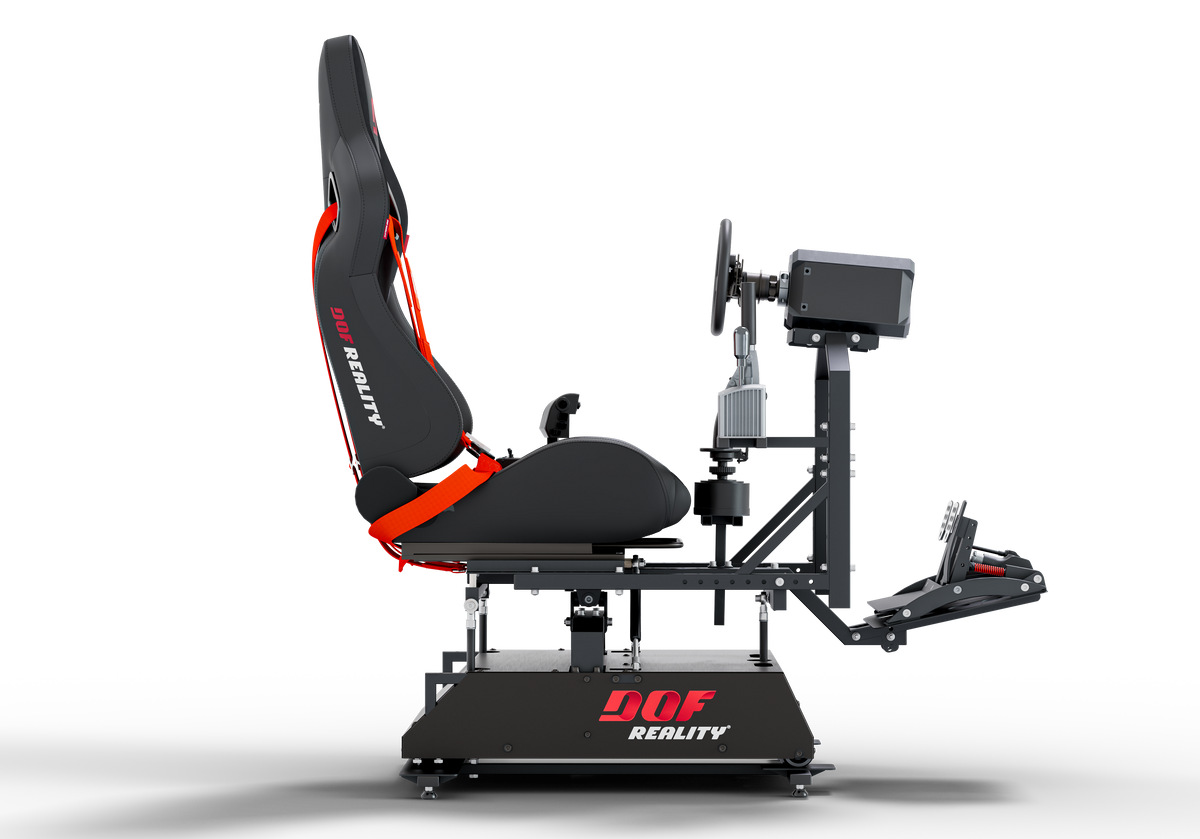

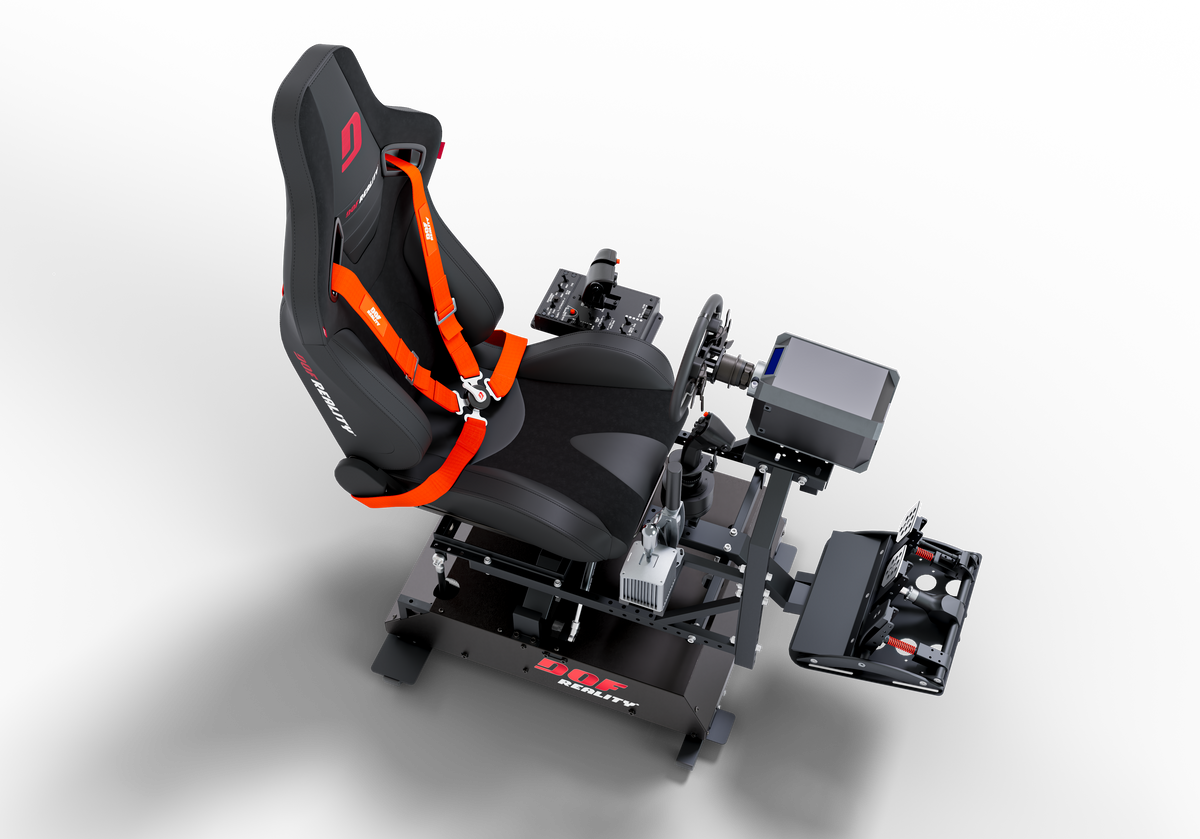

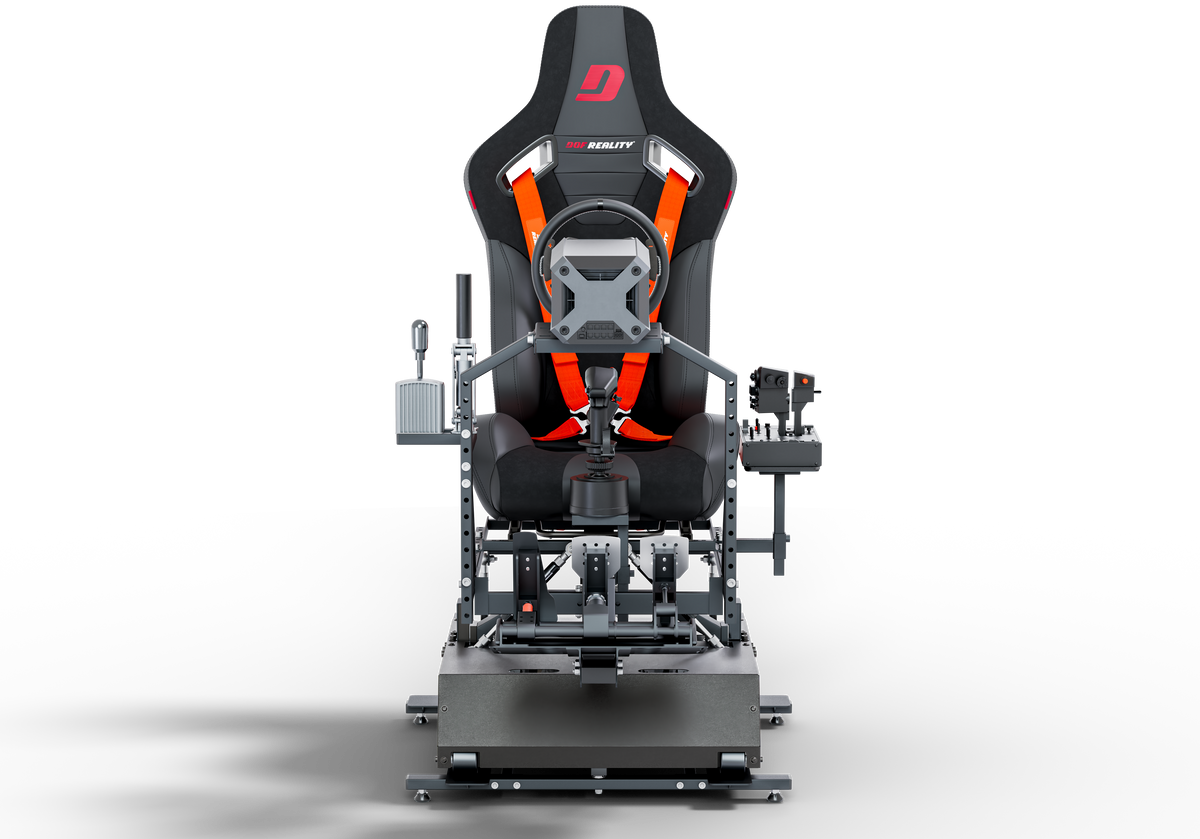

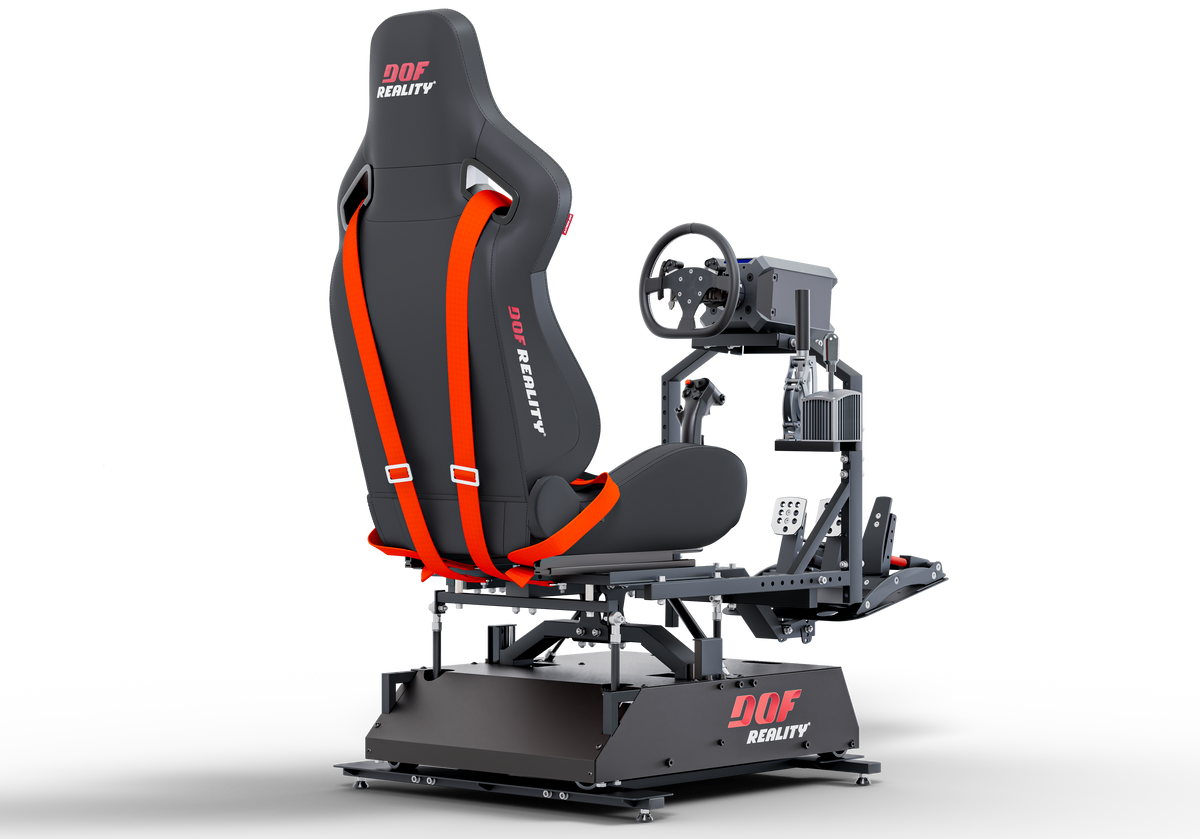

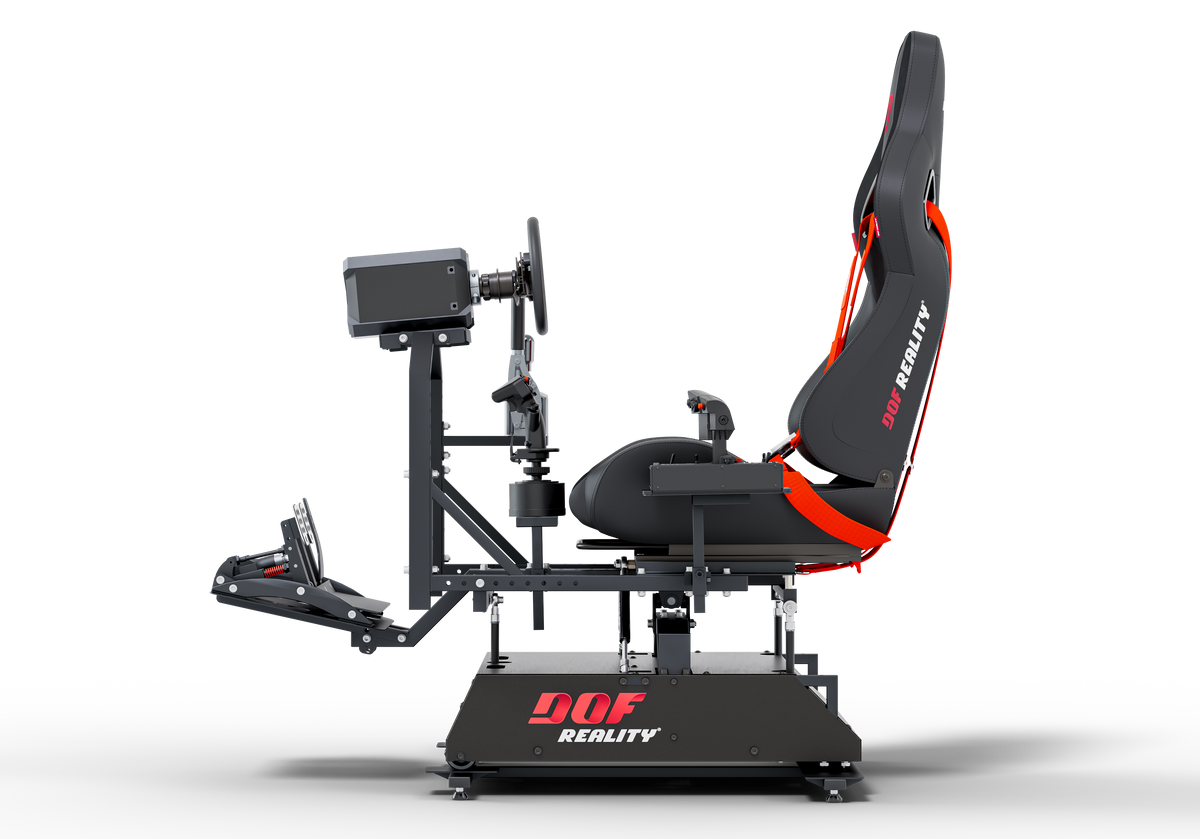

DOF Reality H4r 4-Axis Hero Motion Platform with Heave (Universal)
Ships internationally, factory-direct from the manufacturer. Import duties/tariffs (typically $214–$500 on motion platforms, less on accessories) are billed separately by the carrier at delivery and are the buyer's responsibility - they are never charged at checkout. Questions? We'll walk you through your total cost before you buy.
Universal configuration. Combined-use rig geometry that adapts to racing, flight, and helicopter setups on one platform. Same motion engine as the racing build.
Overview
The DOF Reality H4r is the universal configuration of the H4 chassis. Four axes (Pitch, Roll, Yaw, Heave) tuned for combat aviation, civil flight, and helicopter sim use. Heave delivers the vertical force that turns turbulence, vortex ring state, hard touchdowns, and updrafts into physical sensations rather than just visual cues.
Built since 2014 by DOF Reality in Ukraine, the H4r uses commercial-grade European steel and integrated power drive motors with the Smooth Force Unit (SFU) gearing. Same chassis, motion engine, and software as the H4 racing build, but configured from the factory with HOTAS mount points and universal cockpit geometry instead of wheel-and-pedal.
The H4r is the right pick if you want flight, helicopter, and combined-use motion with vertical g-forces, but want to stay below the H6r 6-axis price tier.
Key Features
- True 4-axis motion (Pitch, Roll, Yaw, Heave). Heave is the differentiator vs every 3DOF flight platform on the market.
- Vertical g-forces for flight sim. Turbulence, hard landings, updrafts, vortex ring state, and rotor wash become physical sensations.
- Universal cockpit geometry. HOTAS mount points, rudder pedal rails, combined sim use out of the box.
- Holds up to 150 kg of pilot plus rig weight on commercial-grade European steel.
- SimRacingStudio license included. Telemetry-driven feedback for flight, racing, and rally sims.
- Klarna and Affirm financing available at checkout.
Specifications
| Spec | Value |
|---|---|
| DOF Count | 4 (Pitch, Roll, Yaw, Heave) |
| Range of Motion | 20 degrees |
| Speed | 86 deg/sec (50 cm/s) |
| Torque | 25 N/m |
| Acceleration | 0.7G transverse, 0.5G longitudinal |
| Power Consumption | 750W peak |
| Floor Footprint | 100 x 150 cm (3 x 5 ft) |
| Assembled Dimensions | 79 x 87 x 123 cm (31 x 34 x 48 in) — W x D x H |
| Height | 60 cm (2 ft) |
| Max Pilot Weight | 150 kg / 330 lbs |
| Material | Commercial-grade European steel |
| Power Supply | 100 to 240V control unit, USB |
| Configuration | Universal (racing, flight, heli) |
| UPC | 804043447057 |
Compatibility
Platforms: PC native via USB. VR-ready.
Flight sim titles supported via SimRacingStudio: Microsoft Flight Simulator 2024, DCS World, X-Plane 12, IL-2 Sturmovik series, Falcon BMS, War Thunder, Rise of Flight, plus helicopter sims and the full racing/rally library.
Total title count: 145+ (DOF Reality publishes this site-wide). SimRacingStudio library is shared across the H-series.
HOTAS and pedals: works with all major HOTAS systems, plus rudder pedals from MFG Crosswind, Thrustmaster TPR, and Logitech. Standard mounting plates accept 80/20 rig hardware.
What's in the Box
- H4r platform with integrated motors
- Universal flight rig with HOTAS mount points
- Mounts for seat or sliding rails
- 100 to 240V control unit with USB cable
- SimRacingStudio software license
- Quick assembly tool kit
- 1-year manufacturer warranty
Not included: seat, VR headset, HOTAS, rudder pedals, monitor.
Shipping and Delivery
DOF Reality consolidates orders into a batch every 2 weeks. Total delivery time is 3 to 5 weeks from order placement to your door, via FedEx or DHL. Two-box shipment (verified): Box 1 is 40 kg / 94 x 38 x 28 cm, Box 2 is 60 kg / 80 x 60 x 30 cm.
Customer pays import duties on delivery. Duty varies by destination; typical US deliveries see import duties billed by the carrier (FedEx or DHL) on delivery. Sim Drive does not collect this — it is a separate transaction with the carrier.
Warranty and support. Full 1-year manufacturer warranty included. Sim Drive Performance is your first point of contact for product support and coordinates directly with DOF Reality on warranty claims and escalated technical issues. Extended +1 year warranty available as an upgrade option on request.
Complete Your Rig
Universal configuration. Combined-use rig geometry that adapts to racing, flight, and helicopter setups on one platform. Same motion engine as the racing build.
Overview
The DOF Reality H4r is the universal configuration of the H4 chassis. Four axes (Pitch, Roll, Yaw, Heave) tuned for combat aviation, civil flight, and helicopter sim use. Heave delivers the vertical force that turns turbulence, vortex ring state, hard touchdowns, and updrafts into physical sensations rather than just visual cues.
Built since 2014 by DOF Reality in Ukraine, the H4r uses commercial-grade European steel and integrated power drive motors with the Smooth Force Unit (SFU) gearing. Same chassis, motion engine, and software as the H4 racing build, but configured from the factory with HOTAS mount points and universal cockpit geometry instead of wheel-and-pedal.
The H4r is the right pick if you want flight, helicopter, and combined-use motion with vertical g-forces, but want to stay below the H6r 6-axis price tier.
Key Features
- True 4-axis motion (Pitch, Roll, Yaw, Heave). Heave is the differentiator vs every 3DOF flight platform on the market.
- Vertical g-forces for flight sim. Turbulence, hard landings, updrafts, vortex ring state, and rotor wash become physical sensations.
- Universal cockpit geometry. HOTAS mount points, rudder pedal rails, combined sim use out of the box.
- Holds up to 150 kg of pilot plus rig weight on commercial-grade European steel.
- SimRacingStudio license included. Telemetry-driven feedback for flight, racing, and rally sims.
- Klarna and Affirm financing available at checkout.
Specifications
| Spec | Value |
|---|---|
| DOF Count | 4 (Pitch, Roll, Yaw, Heave) |
| Range of Motion | 20 degrees |
| Speed | 86 deg/sec (50 cm/s) |
| Torque | 25 N/m |
| Acceleration | 0.7G transverse, 0.5G longitudinal |
| Power Consumption | 750W peak |
| Floor Footprint | 100 x 150 cm (3 x 5 ft) |
| Assembled Dimensions | 79 x 87 x 123 cm (31 x 34 x 48 in) — W x D x H |
| Height | 60 cm (2 ft) |
| Max Pilot Weight | 150 kg / 330 lbs |
| Material | Commercial-grade European steel |
| Power Supply | 100 to 240V control unit, USB |
| Configuration | Universal (racing, flight, heli) |
| UPC | 804043447057 |
Compatibility
Platforms: PC native via USB. VR-ready.
Flight sim titles supported via SimRacingStudio: Microsoft Flight Simulator 2024, DCS World, X-Plane 12, IL-2 Sturmovik series, Falcon BMS, War Thunder, Rise of Flight, plus helicopter sims and the full racing/rally library.
Total title count: 145+ (DOF Reality publishes this site-wide). SimRacingStudio library is shared across the H-series.
HOTAS and pedals: works with all major HOTAS systems, plus rudder pedals from MFG Crosswind, Thrustmaster TPR, and Logitech. Standard mounting plates accept 80/20 rig hardware.
What's in the Box
- H4r platform with integrated motors
- Universal flight rig with HOTAS mount points
- Mounts for seat or sliding rails
- 100 to 240V control unit with USB cable
- SimRacingStudio software license
- Quick assembly tool kit
- 1-year manufacturer warranty
Not included: seat, VR headset, HOTAS, rudder pedals, monitor.
Shipping and Delivery
DOF Reality consolidates orders into a batch every 2 weeks. Total delivery time is 3 to 5 weeks from order placement to your door, via FedEx or DHL. Two-box shipment (verified): Box 1 is 40 kg / 94 x 38 x 28 cm, Box 2 is 60 kg / 80 x 60 x 30 cm.
Customer pays import duties on delivery. Duty varies by destination; typical US deliveries see import duties billed by the carrier (FedEx or DHL) on delivery. Sim Drive does not collect this — it is a separate transaction with the carrier.
Warranty and support. Full 1-year manufacturer warranty included. Sim Drive Performance is your first point of contact for product support and coordinates directly with DOF Reality on warranty claims and escalated technical issues. Extended +1 year warranty available as an upgrade option on request.
