DOF Reality P4e 4-Axis Pro Motion Platform with Heave (Flight)
Ships internationally, factory-direct from the manufacturer. Import duties/tariffs (typically $214–$500 on motion platforms, less on accessories) are billed separately by the carrier at delivery and are the buyer's responsibility - they are never charged at checkout. Questions? We'll walk you through your total cost before you buy.
Flight configuration. Factory-built for flight sims with HOTAS mount points and stick-and-throttle cockpit geometry for MSFS, DCS, X-Plane, and combat flight. Same motion engine as the racing build.
Overview
The DOF Reality P4e is the Pro tier 4-axis motion platform: pitch, roll, yaw, and heave with the upgraded actuators, faster response, and longer duty cycles built for sim leagues, training centers, and serious home enthusiasts who run multi-hour sessions.
Built since 2014 by DOF Reality in Ukraine with commercial-grade European steel. The Pro tier (P-series) uses the same axis count as the H-series Hero tier but ships with upgraded internals and a step up in build spec. The P4e is the Pro counterpart to the H4 / H4r.

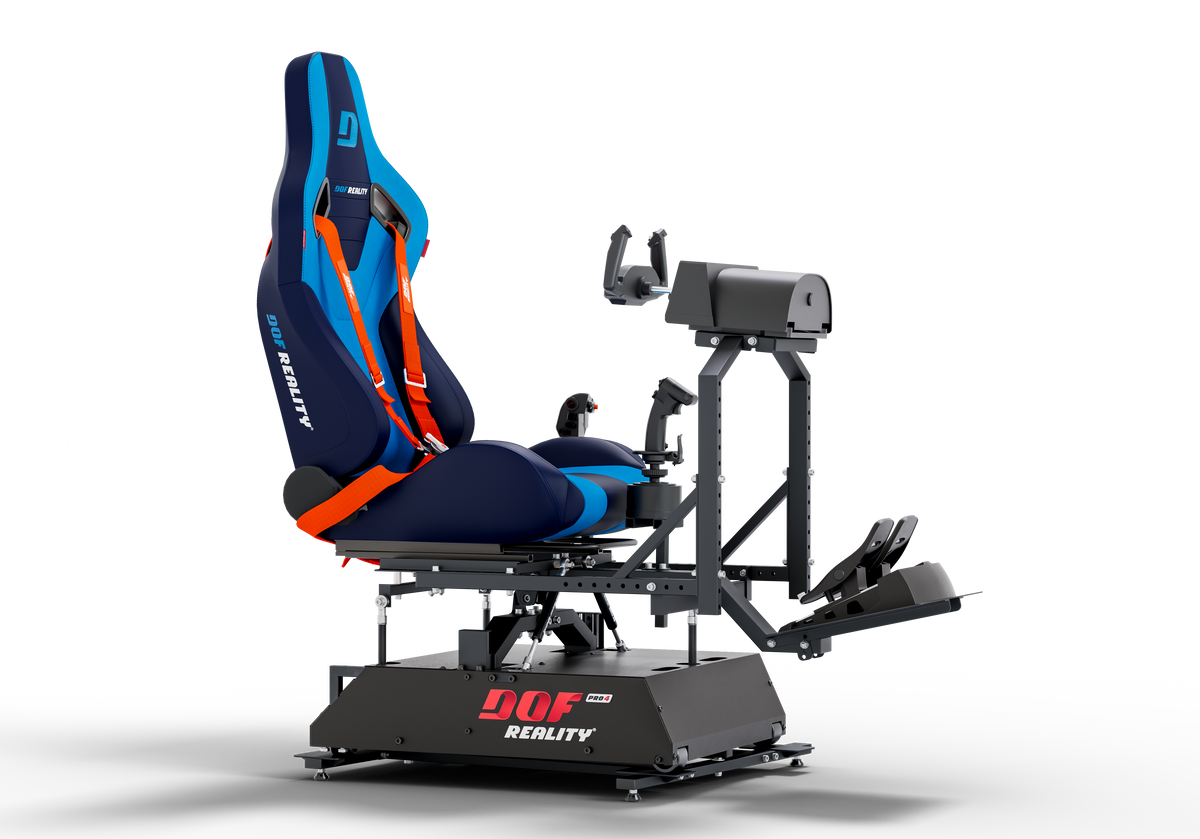

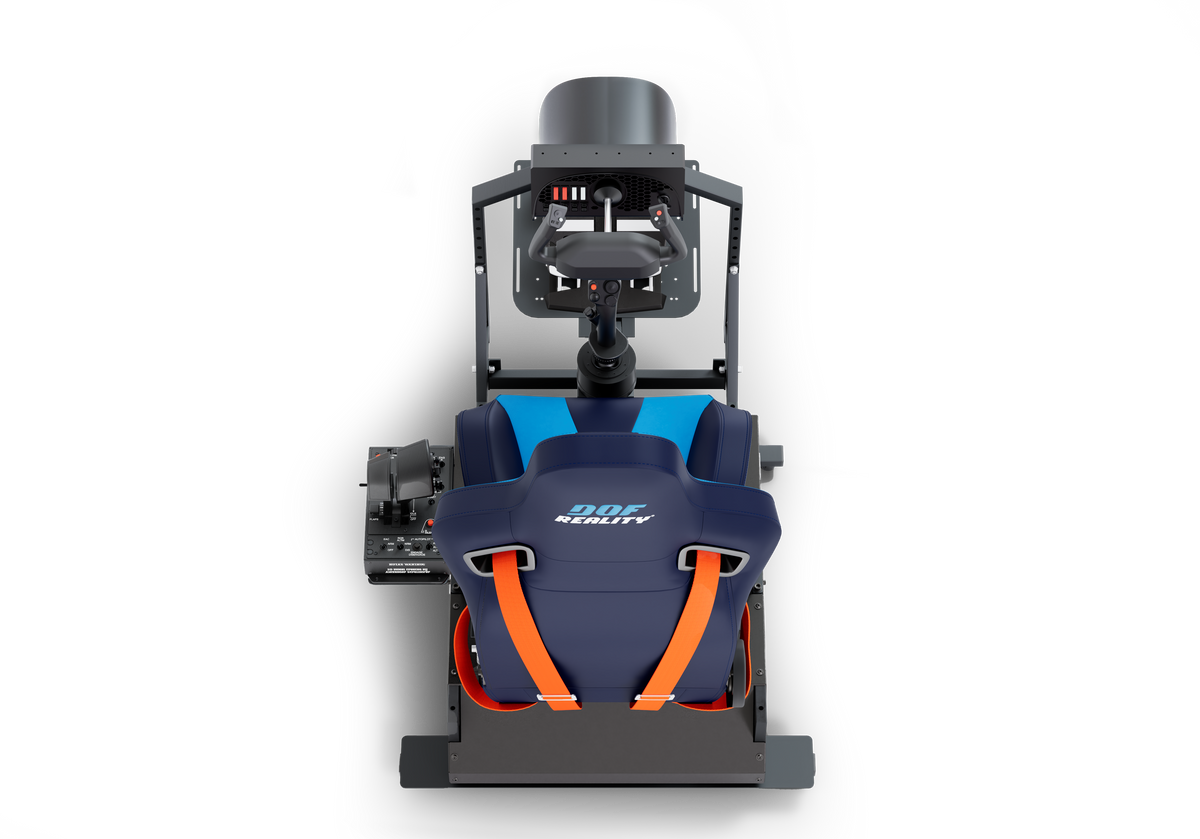

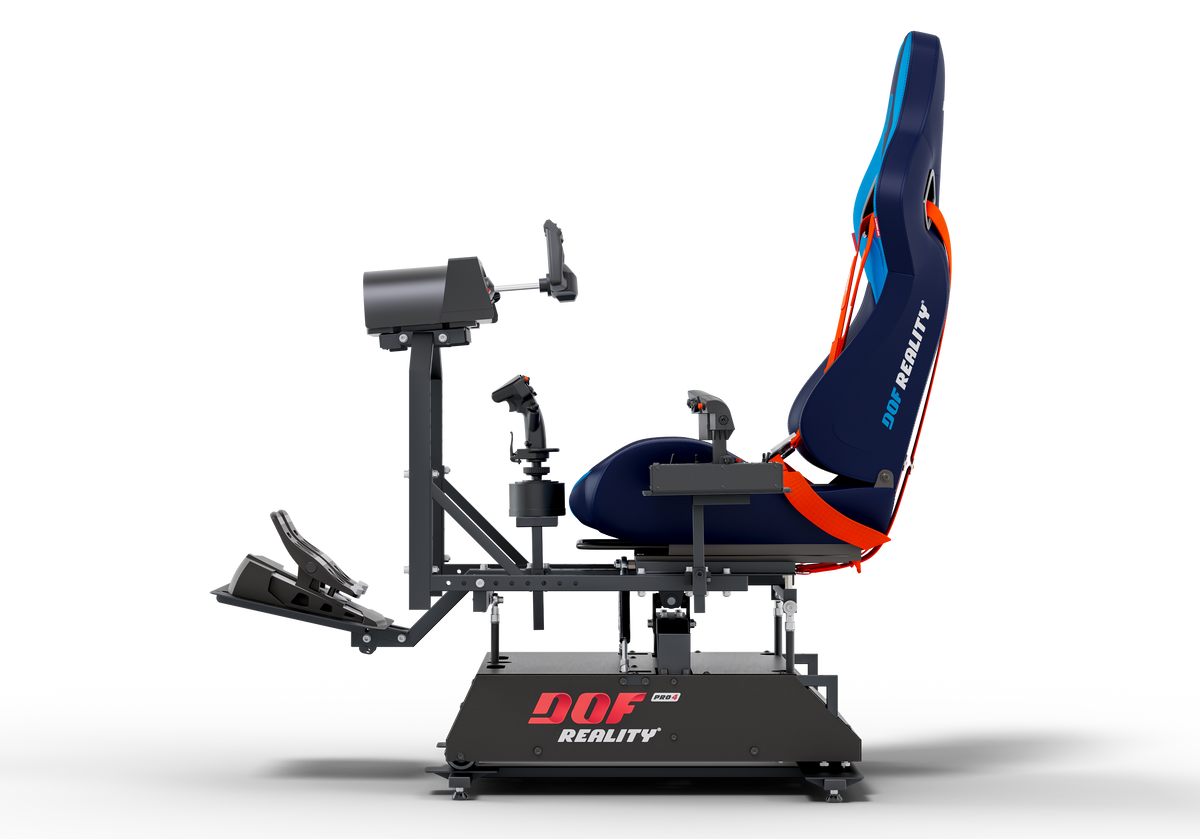

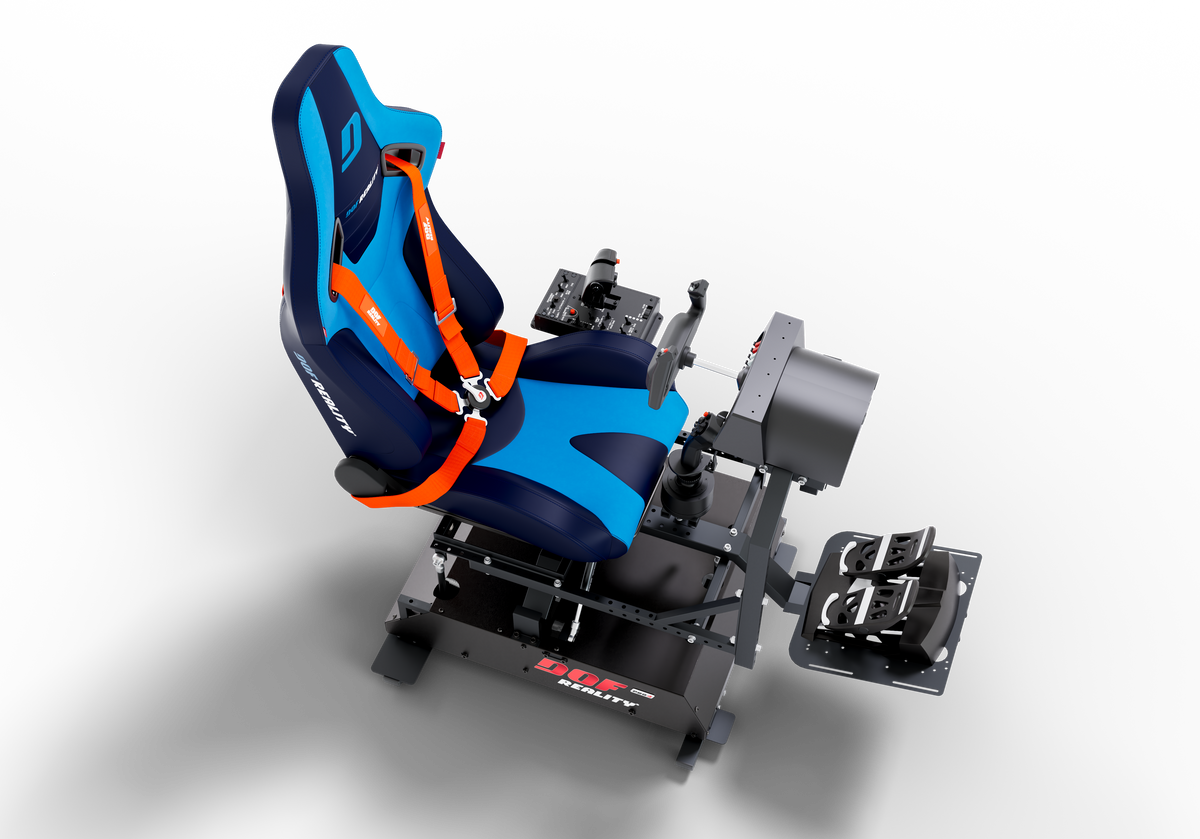

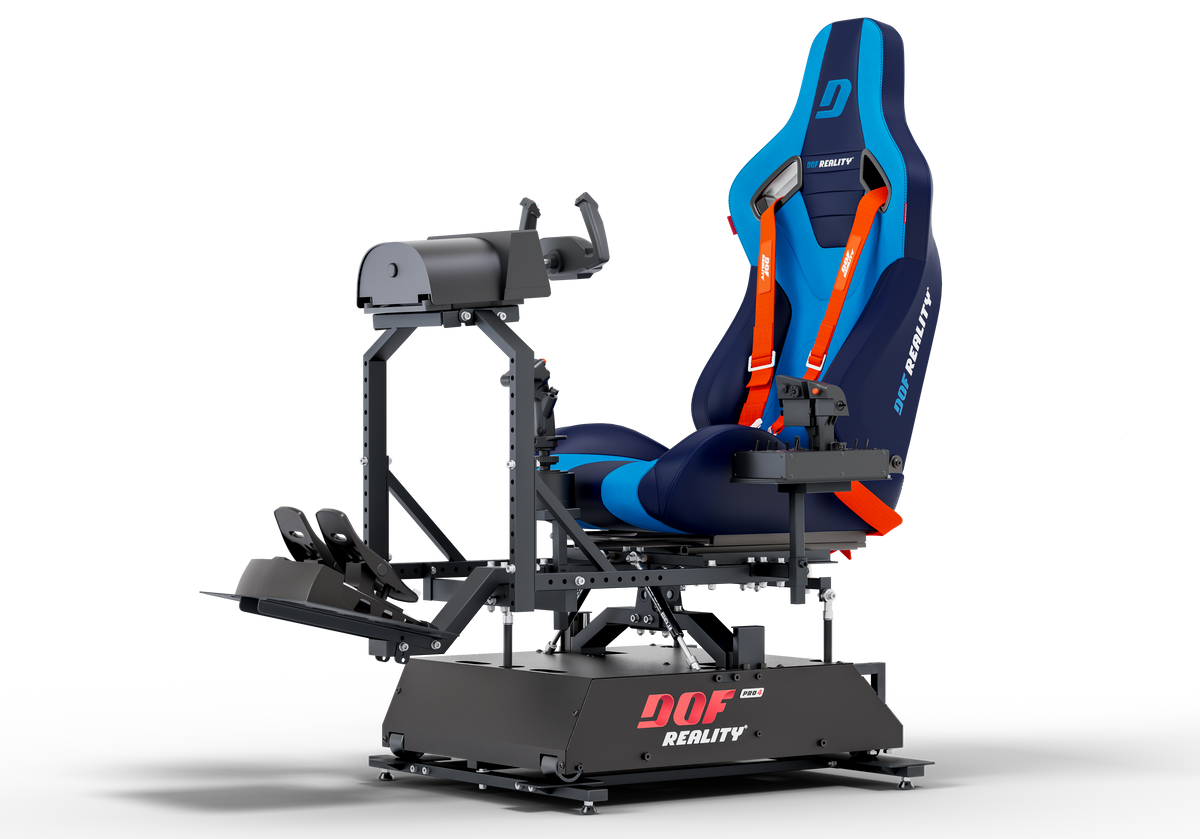

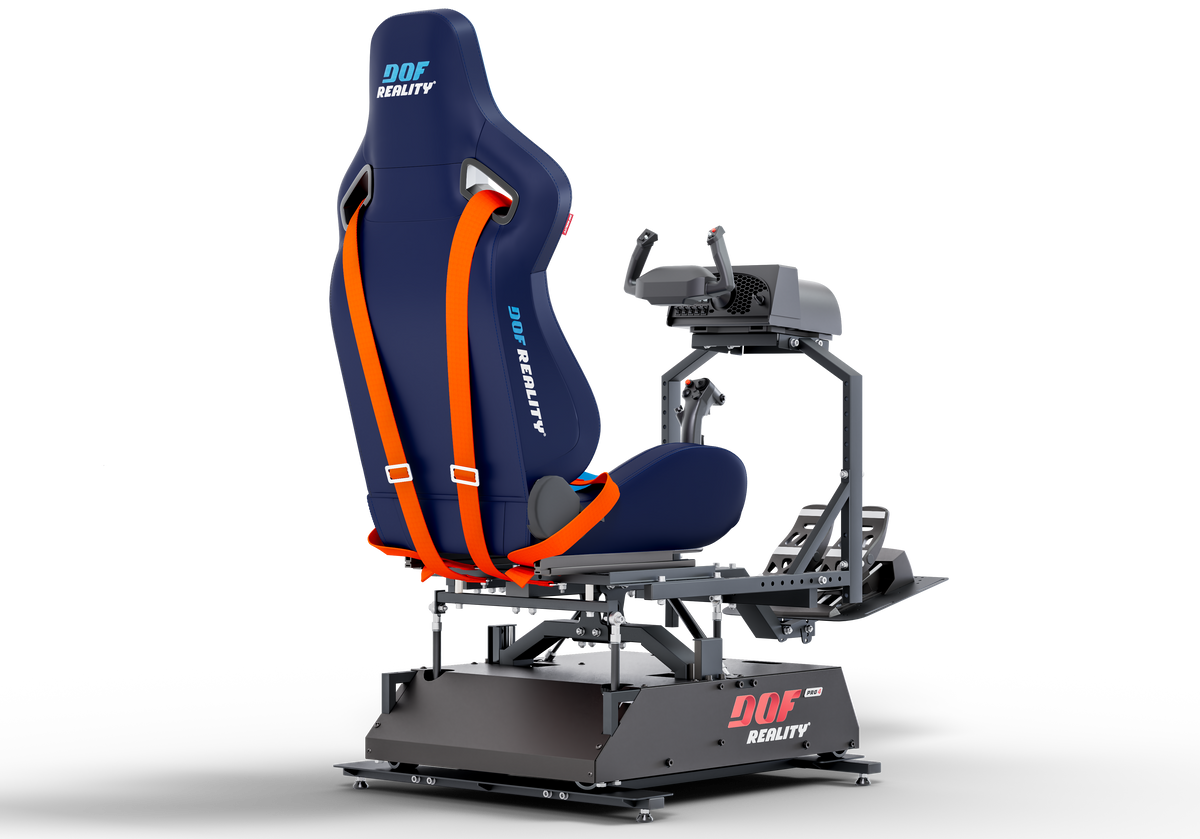

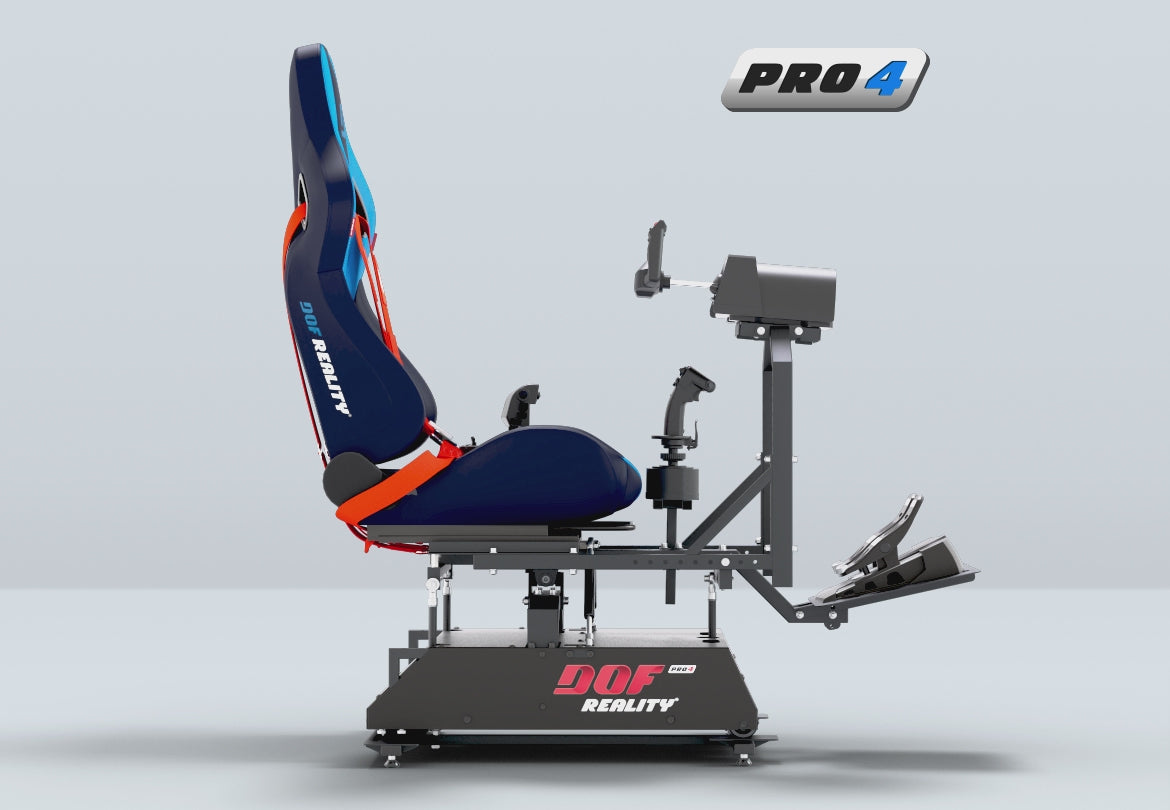

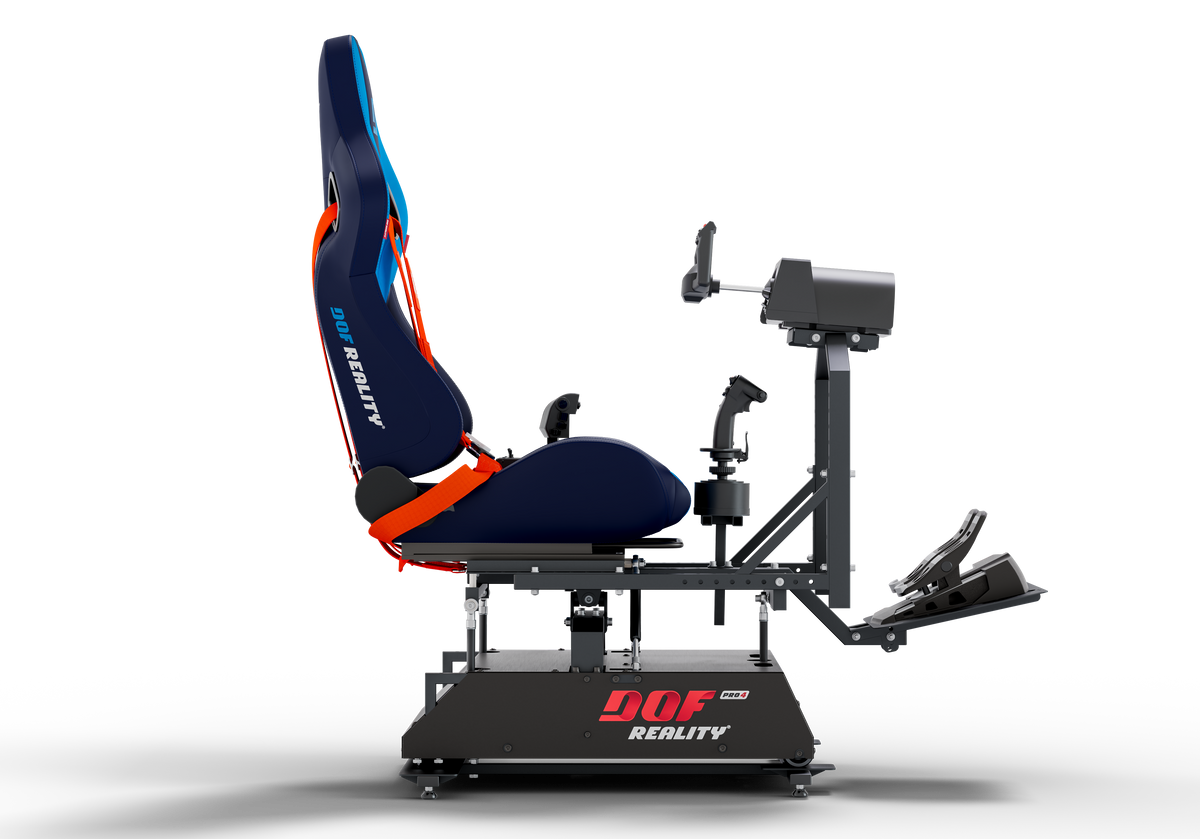

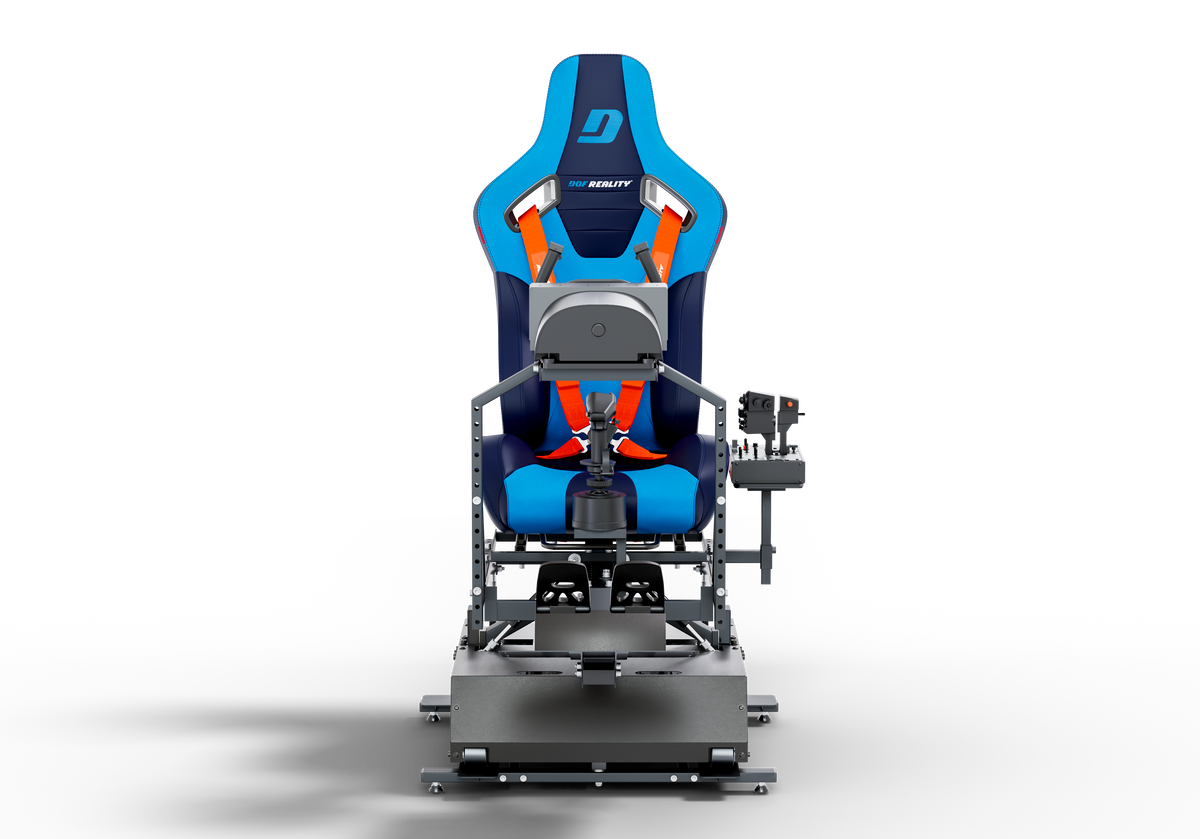

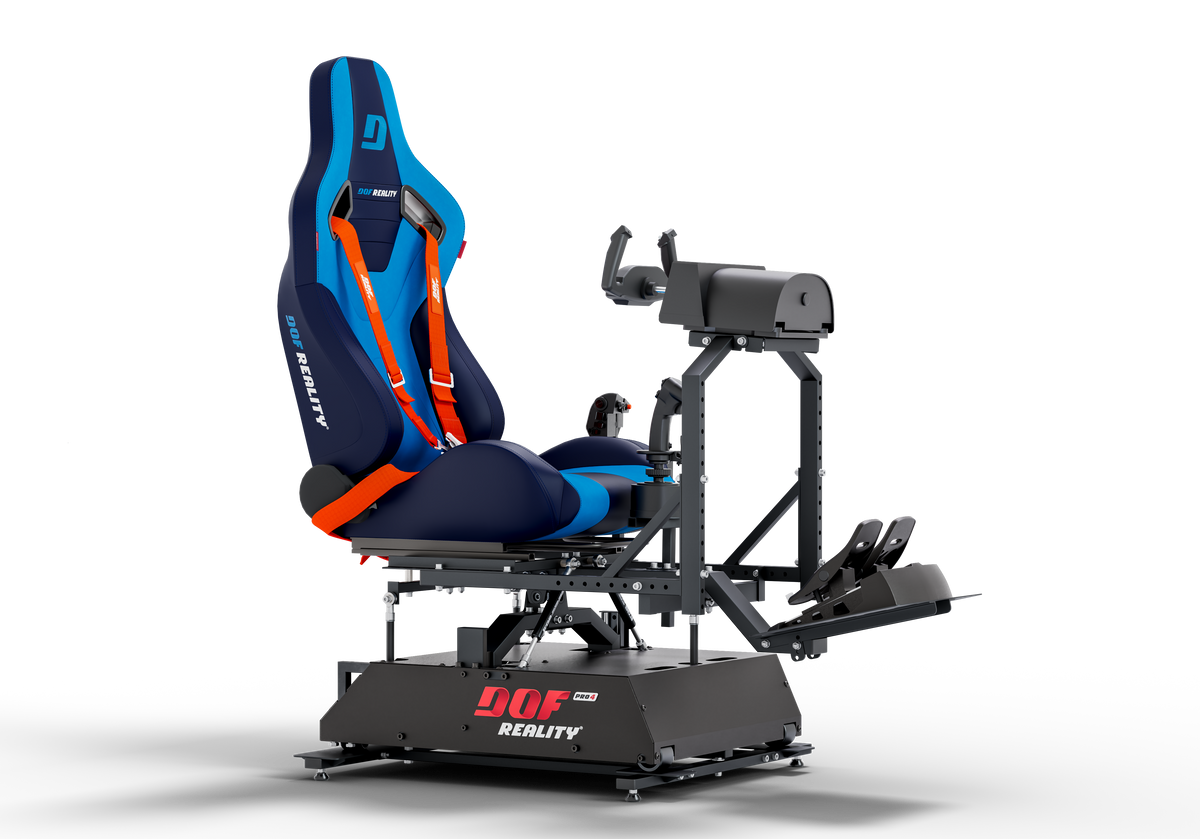

The renders shown are from the prior P4 generation. Production P4e photography is forthcoming.
Key Features
- True 4-axis motion (Pitch, Roll, Yaw, Heave) with the Pro tier actuator stack.
- Heave axis for vertical g-force. Curbs, kerbs, road texture, hard landings, and vertical impact become physical sensations.
- Pro-tier duty cycle. Built for league use, training centers, and multi-hour home sessions.
- Universal use. Configures for racing, flight, and combined sim setups via standard 80/20 mounting.
- SimRacingStudio license included. Telemetry-driven feedback for racing, rally, and flight sims.
- Klarna and Affirm financing available at checkout.
Specifications
| Spec | Value |
|---|---|
| DOF Count | 4 (Pitch, Roll, Yaw, Heave) |
| Tier | Pro (P-series) |
| Range of Motion | 20 degrees |
| Speed | 105 deg/sec (75 cm/s) |
| Torque | 28 N/m |
| Acceleration | 0.75G transverse, 0.5G longitudinal |
| Power Consumption | 750W peak |
| Floor Footprint | 100 x 150 cm (3 x 5 ft) |
| Assembled Dimensions | 79 x 87 x 123 cm (31 x 34 x 48 in) — W x D x H |
| Max Pilot Weight | 200 kg / 440 lbs |
| Material | Commercial-grade European steel |
| Power Supply | 100 to 240V control unit, USB |
| UPC | 804043447064 |
Compatibility
Platforms: PC native via USB. VR-ready.
Sim titles supported via SimRacingStudio: iRacing, Assetto Corsa, Assetto Corsa Competizione, Automobilista 1 and 2, F1 series, Forza Horizon and Motorsport, Gran Turismo 7, Project CARS series, Wreckfest, BeamNG.drive, rFactor 2, GRID series, Dirt Rally 2.0, EA Sports WRC, Microsoft Flight Simulator 2024, DCS, X-Plane 12.
Wheels, pedals, and HOTAS: works with all major direct drive wheelbases from major DD wheelbase manufacturers and all major HOTAS systems. Standard mounting plates accept 80/20 rig hardware.
What's in the Box
- P4e platform with integrated Pro tier actuators
- Rigid metal rig configurable for normal and F1 driving positions, plus flight cockpit conversion
- Mounts for seat or sliding rails
- 100 to 240V control unit with USB cable
- SimRacingStudio software license
- Quick assembly tool kit
- 1-year manufacturer warranty
Not included: seat, VR headset, wheelbase, pedals, HOTAS, monitor.
Shipping and Delivery
DOF Reality consolidates orders into a batch every 2 weeks. Total delivery time is 3 to 5 weeks from order placement to your door, via FedEx or DHL. Two-box shipment: Box 1 is 40 kg / 94 x 38 x 28 cm, Box 2 is 60 kg / 80 x 60 x 30 cm.
Customer pays import duties on delivery. Duty varies by destination; typical US deliveries see import duties billed by the carrier (FedEx or DHL) on delivery. Sim Drive does not collect this — it is a separate transaction with the carrier.
Warranty and support. Full 1-year manufacturer warranty included. Sim Drive Performance is your first point of contact for product support and coordinates directly with DOF Reality on warranty claims and escalated technical issues. Extended +1 year warranty available as an upgrade option on request.
Complete Your Rig
Flight configuration. Factory-built for flight sims with HOTAS mount points and stick-and-throttle cockpit geometry for MSFS, DCS, X-Plane, and combat flight. Same motion engine as the racing build.
Overview
The DOF Reality P4e is the Pro tier 4-axis motion platform: pitch, roll, yaw, and heave with the upgraded actuators, faster response, and longer duty cycles built for sim leagues, training centers, and serious home enthusiasts who run multi-hour sessions.
Built since 2014 by DOF Reality in Ukraine with commercial-grade European steel. The Pro tier (P-series) uses the same axis count as the H-series Hero tier but ships with upgraded internals and a step up in build spec. The P4e is the Pro counterpart to the H4 / H4r.
The renders shown are from the prior P4 generation. Production P4e photography is forthcoming.
Key Features
- True 4-axis motion (Pitch, Roll, Yaw, Heave) with the Pro tier actuator stack.
- Heave axis for vertical g-force. Curbs, kerbs, road texture, hard landings, and vertical impact become physical sensations.
- Pro-tier duty cycle. Built for league use, training centers, and multi-hour home sessions.
- Universal use. Configures for racing, flight, and combined sim setups via standard 80/20 mounting.
- SimRacingStudio license included. Telemetry-driven feedback for racing, rally, and flight sims.
- Klarna and Affirm financing available at checkout.
Specifications
| Spec | Value |
|---|---|
| DOF Count | 4 (Pitch, Roll, Yaw, Heave) |
| Tier | Pro (P-series) |
| Range of Motion | 20 degrees |
| Speed | 105 deg/sec (75 cm/s) |
| Torque | 28 N/m |
| Acceleration | 0.75G transverse, 0.5G longitudinal |
| Power Consumption | 750W peak |
| Floor Footprint | 100 x 150 cm (3 x 5 ft) |
| Assembled Dimensions | 79 x 87 x 123 cm (31 x 34 x 48 in) — W x D x H |
| Max Pilot Weight | 200 kg / 440 lbs |
| Material | Commercial-grade European steel |
| Power Supply | 100 to 240V control unit, USB |
| UPC | 804043447064 |
Compatibility
Platforms: PC native via USB. VR-ready.
Sim titles supported via SimRacingStudio: iRacing, Assetto Corsa, Assetto Corsa Competizione, Automobilista 1 and 2, F1 series, Forza Horizon and Motorsport, Gran Turismo 7, Project CARS series, Wreckfest, BeamNG.drive, rFactor 2, GRID series, Dirt Rally 2.0, EA Sports WRC, Microsoft Flight Simulator 2024, DCS, X-Plane 12.
Wheels, pedals, and HOTAS: works with all major direct drive wheelbases from major DD wheelbase manufacturers and all major HOTAS systems. Standard mounting plates accept 80/20 rig hardware.
What's in the Box
- P4e platform with integrated Pro tier actuators
- Rigid metal rig configurable for normal and F1 driving positions, plus flight cockpit conversion
- Mounts for seat or sliding rails
- 100 to 240V control unit with USB cable
- SimRacingStudio software license
- Quick assembly tool kit
- 1-year manufacturer warranty
Not included: seat, VR headset, wheelbase, pedals, HOTAS, monitor.
Shipping and Delivery
DOF Reality consolidates orders into a batch every 2 weeks. Total delivery time is 3 to 5 weeks from order placement to your door, via FedEx or DHL. Two-box shipment: Box 1 is 40 kg / 94 x 38 x 28 cm, Box 2 is 60 kg / 80 x 60 x 30 cm.
Customer pays import duties on delivery. Duty varies by destination; typical US deliveries see import duties billed by the carrier (FedEx or DHL) on delivery. Sim Drive does not collect this — it is a separate transaction with the carrier.
Warranty and support. Full 1-year manufacturer warranty included. Sim Drive Performance is your first point of contact for product support and coordinates directly with DOF Reality on warranty claims and escalated technical issues. Extended +1 year warranty available as an upgrade option on request.
Shipping
Every order ships factory-direct from the manufacturer via insured air freight (FedEx or DHL). Estimated delivery for this product: see our Shipping Policy for current lead times. Shipping shown at checkout reflects the actual factory-to-door freight for your items - no markup.
We currently ship to US addresses at launch. Outside the US? Contact us for a freight quote.
Import Duties & Tariffs
Because orders ship internationally from the manufacturer, import duties/tariffs (typically $214–$500 on motion platforms, less on accessories) are billed separately by the carrier at delivery and are the buyer's responsibility. They are never charged at checkout. Contact us for a precise landed-cost estimate.
Returns
We accept returns on unused, unopened products within 30 days of delivery. Refunds are processed within 5–10 business days of our receipt and inspection of the returned item.
